CHAPTER 3: OLIMEXINO-85 BOARD DESCRIPTION

3. Introduction to the chapter

Here you get acquainted with the main parts of the board. Note the names used on the board might

differ from the names used below to describe them. For the actual names check the OLIMEXINO-

85-ASM board itself.

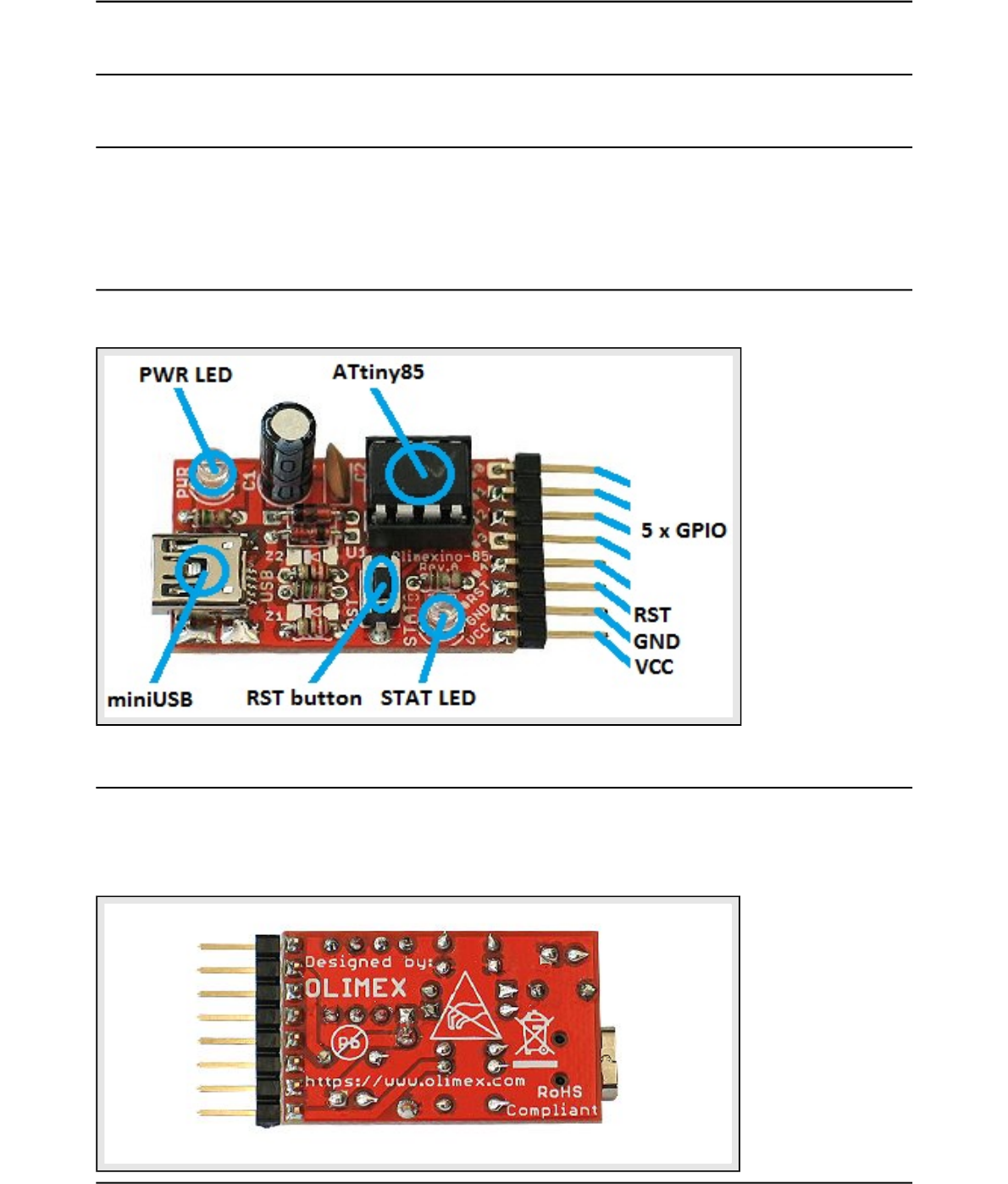

3.1 Layout (top view)

The picture below shows top layout of the initial revision of OLIMEXINO-85-ASM.

3.2 Layout (bottom view)

The bottom of the board doesn't contain any active or passive elements. It is the place where most

soldering is done and you should be careful for the surface you place the board on, to avoid

accidental short-circuits.
