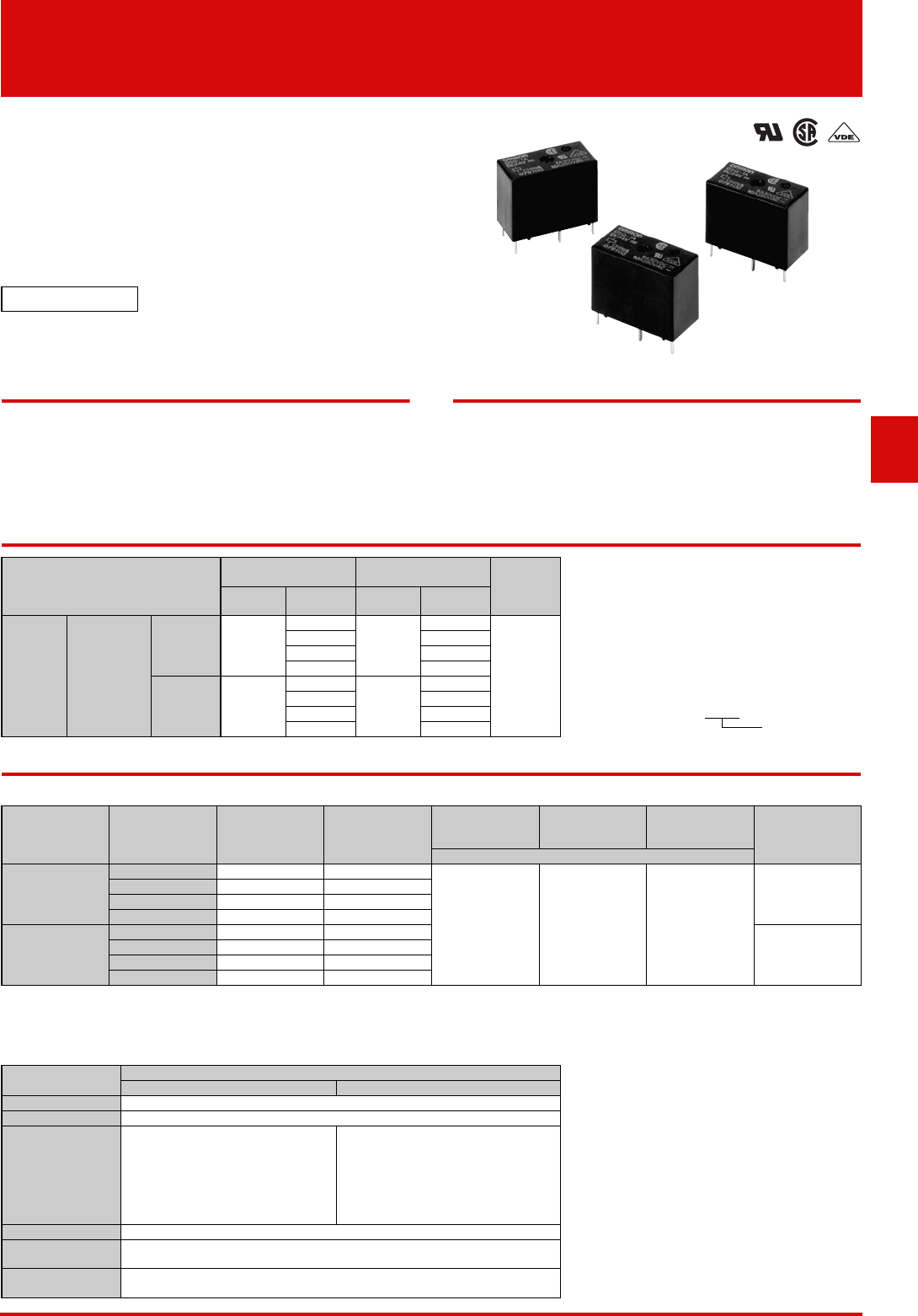

G5Q

PCB Power Relay

A Miniature Power Relay with

1-pole 10A Switching Capacity

• Compact single pole relay.

• Excellent switching performance for a variety of loads.

• Small, yet provide 8-kV impulse withstand voltage (between coil

and contacts).

■Model Number Legend ■Application Examples

• Ideal for output applications of control equipments.

■Ordering Information

■Ratings

●Coil

Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.

Note 2. The operating characteristics are measured at a coil temperature of 23°C.

Note 3. The “Max. voltage” is the maximum voltage that can be applied to the relay coil.

●Contacts

RoHS Compliant

G5Q-@@@

———

123

1. Number of

Poles

1: 1-pole

2. Contact Form

None : SPDT (1c)

A : SPST-NO (1a)

3. Enclosure rating

None : Flux protection

4 : Fully-sealed

Te rm inal

Shape

Classification

Enclosure

rating

Flux protection Fully-sealed

Minimum

packing unit

Contact

form

Model

Rated coil

voltage

Model

Rated coil

voltage

PCB

terminals

Standard

SPST-NO

(1a)

G5Q-1A

5 VDC

G5Q-1A4

5 VDC

40 pcs/

tube

9 VDC 9 VDC

12 VDC 12 VDC

24 VDC 24 VDC

SPDT

(1c)

G5Q-1

5 VDC

G5Q-14

5 VDC

9 VDC 9 VDC

12 VDC 12 VDC

24 VDC 24 VDC

Contact form Rated voltage

Rated current

(mA)

Coil resistance

(Ω)

Must operate

voltage

(V)

Must release

voltage

(V)

Max. voltage

(V)

Power

consumption

(mW)

% of rated voltage

SPST-NO (1a)

5 VDC

125

75% max. 5% min.

190%

(at 23°C)

Approx. 200

9 VDC

22.2

405

12 VDC

16.7

720

24 VDC

8.3

2880

SPDT (1c)

5 VDC

Approx. 400

9 VDC

44.4

202

12 VDC

33.3

360

24 VDC

16.7

1440

Load Resistive load

Item SPST-NO (1a) SPDT (1c)

Contact Type Single

Contact material Ag-Alloy (Cd free)

Rated load

(resistive)

10 A at 125 VAC

3 A at 125 VAC

3 A at 250 VAC

5 A at 30 VDC

10 A at 125 VAC (NO)

3 A at 125 VAC (NO)

3 A at 250 VAC (NO)

5 A at 30 VDC (NO)

3 A at 125 VAC (NC)

3 A at 250 VAC (NC)

3 A at 30 VDC (NC)

Rated carry current 10 A (NO)/3 A (NC)

Max. switching

voltage

277 VAC, 30 VDC

Max. switching

current

AC: 10 A (NO)/3 A (NC)

DC: 5 A (NO)/3 A (NC)

Note. When ordering, add the rated coil voltage to the

model number.

Example: G5Q-1A 5 VDC

Rated coil voltage

Summary of content (4 pages)

PAGE 1
G5Q PCB Power Relay A Miniature Power Relay with 1-pole 10A Switching Capacity • Compact single pole relay. • Excellent switching performance for a variety of loads. • Small, yet provide 8-kV impulse withstand voltage (between coil and contacts). RoHS Compliant ■Model Number Legend ■Application Examples G 5 Q -@ @ @ ——— 1 2 3 1. Number of Poles 1: 1-pole • Ideal for output applications of control equipments. 2. Contact Form None : SPDT (1c) A : SPST-NO (1a) 3.
PAGE 2
G5Q PCB Power Relay ■Characteristics Item Classification 100 mΩ max. Operate time 10 ms max. Release time 5 ms max. Insulation resistance *2 Dielectric strength 1,000 MΩ min. Between coil and contacts 4,000 VAC, 50/60 Hz for 1 min Between contacts of the same polarity 1,000 VAC, 50/60 Hz for 1 min Impulse withstand voltage (between coil and contacts) 8 kV (1.2 x 50 μs) Vibration resistance Destruction 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.
PAGE 3
G5Q PCB Power Relay ■Dimensions (Unit: mm) G5Q-1A G5Q-1A4 PCB Mounting Holes (Bottom View) Tolerance: ±0.1 mm 10.3MAX (10.0)* 20.3MAX (20.0)* . .1 (1.18) 3 -1. ±0 dia Terminal Arrangement/ Internal Connections (Bottom View) 4 (1.19) 1 2 3 7.62±0.1 15.8MAX (15.5)* 5 (No coil polarity) 7.62±0.1 0.4 0.27 MAX 3.4 10.16±0.1 1 0.4 x 0.4 7.62 10.16 * Average value 7.62 G5Q-1 G5Q-14 PCB Mounting Holes (Bottom View) Tolerance: ±0.1 mm 10.3MAX (10.0)* 20.3MAX (20.0)* (1.18) . 0.
PAGE 4
G5Q PCB Power Relay G 5 Q • Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.
