FDMF6823A — Extra-Small, High-Performance, High-Frequency DrMOS Module
Typical Performance Characteristics
Test Conditions: V
CIN
=5 V, V
DRV
=5 V, T
A
=25°C, and natural convection cooling, unless otherwise specified.

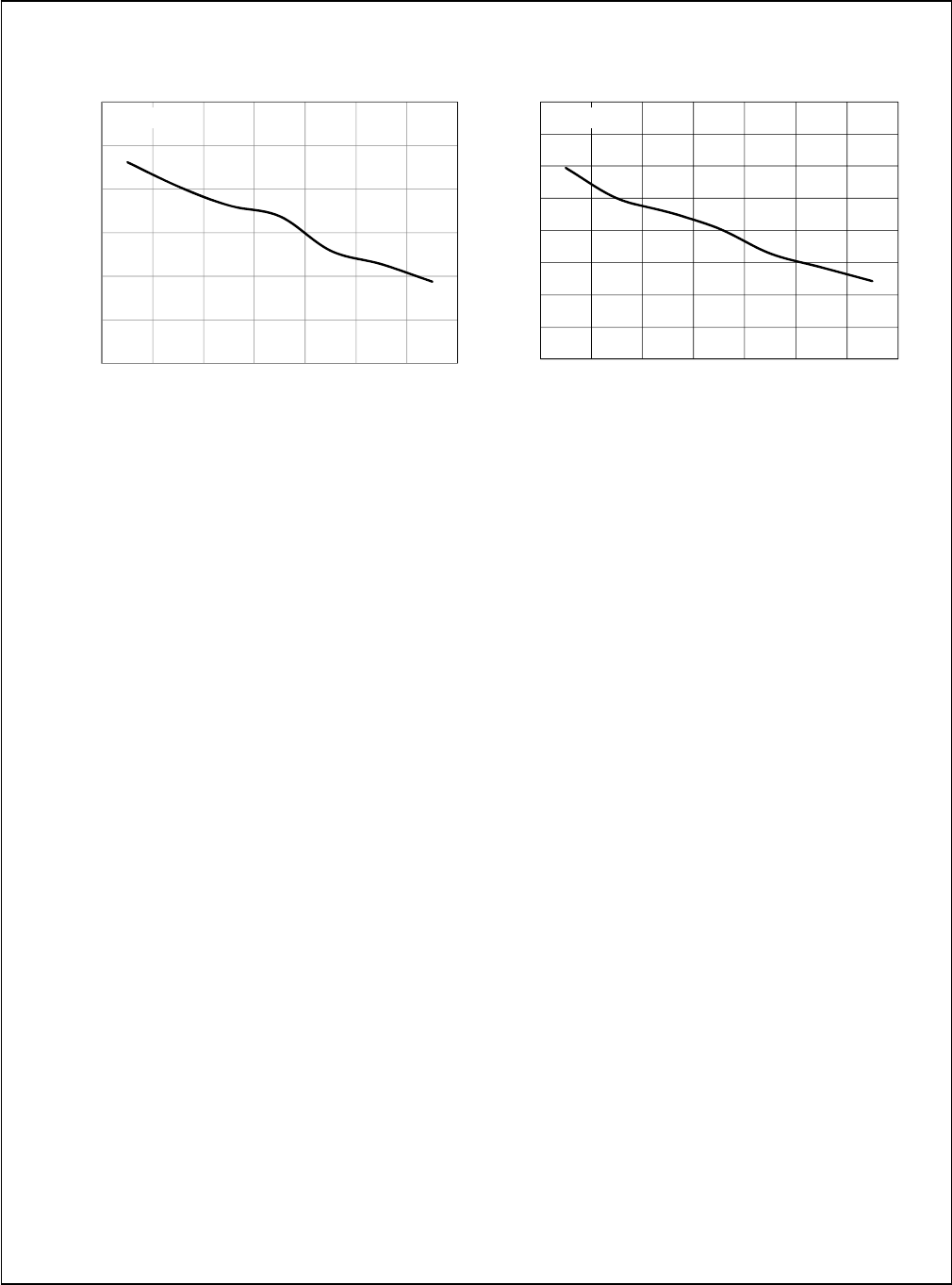

Figure 24. DISB# Pull-Down Current vs.
Temperature
Figure 25. Boot Diode Forward Voltage vs.
Temperature
9.0
9.5
10.0
10.5
11. 0
11. 5
12.0
-55 0 25 55 100 125 150
DISB# Pull-Down Current, I
PLD
(uA)
Driver IC Junction Temperature, T
J
(
o
C)
V
CIN
= 5V
100
150
200
250
300
350
400
450
500
-55 0 25 55 100 125 150
Boot Diode Forward Voltage, V
F
(mV)
Driver IC Junction Temperature, T
J
(
o
C)
I
F
= 20mA
