19
Connecting the Speakers
—Continued

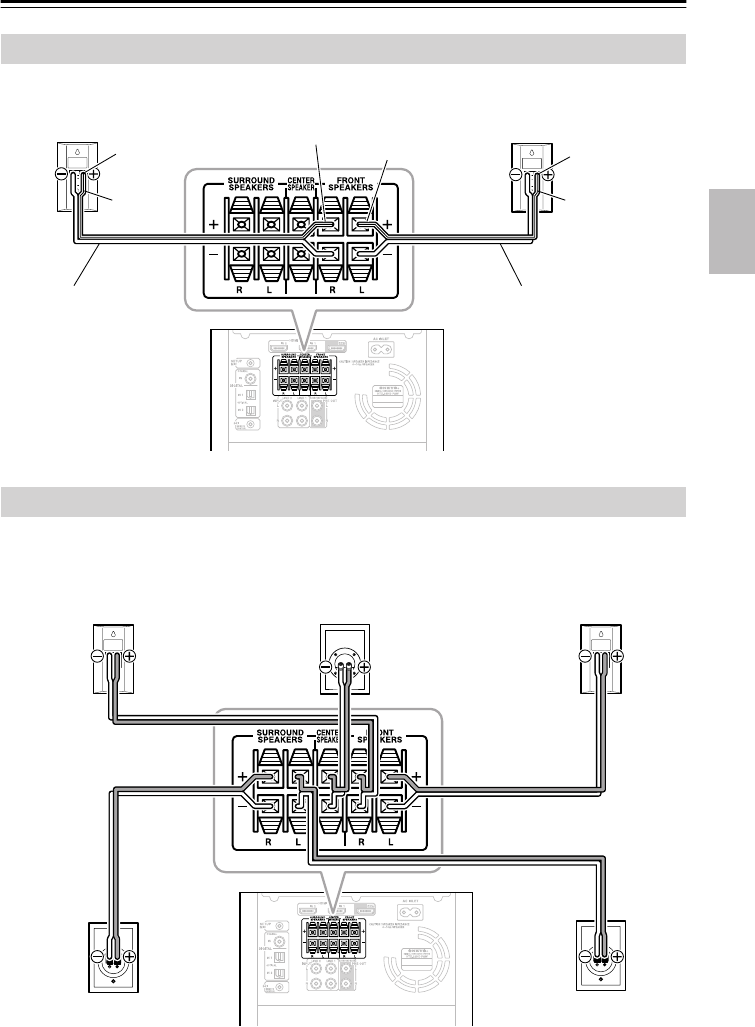

The following hookup diagram shows how to connect the included front speakers for 2.1-channel
operation.
The following hookup diagram shows how to connect the included front speakers, a center
speaker, and surround speakers for 5.1-channel surround sound. To connect a pair of surround
back speakers for 7.1-channel surround sound, see page 20.
Connecting only the Front Speakers
Front left speakerFront right speaker
Red terminal
Red line
White terminal
White line
Red line
White line
Supplied speaker
cable
Supplied speaker
cable
Connecting 5.1 Speakers
Surround right
speaker
Front left speakerFront right speaker
Center speaker
Surround left
speaker
HTX-22HD_En.book Page 19 Monday, April 7, 2008 2:03 PM
