User guide

Quick Start Guide
• Read this quick start guide carefully before installing and/or using this product.
• Keep this quick start guide for future reference and store in a safe place.
Introduction
OPH - 1004
Notice
• This quick start guide may be revised or withdrawn at any time without prior notice.
• This quick start guide may not, in whole or in part, be copied, photocopied, reproduced, translated or con-
verted to any electronic or machine readable form without prior written consent of Opticon.
• Trademarks used are property of their respective owners.
• Under no circumstances shall Opticon be held responsible for any special, incidental, consequential or
indirect damages howsoever caused.
Caution and Warning
1. Laser Safety
• Do not stare into the laser beam.
2. Handling Instructions
【
OPH-1004
】
• Do not attempt to disassemble, modify or update this device.
• Operating the scanner while operating machinery or a vehicle can be distracting.
• Do not drop this product or put heavy items on this product.
• Do not insert foreign substances into the device.
• Do not use this product in the following areas:
- In areas exposed to direct sunlight for long periods of time.
- In dusty environments.
- Near water or other liquids, or in extremely high humidity.
- Near heat sources, such as radiators, heat registers, stoves, or other types of devices that produce heat.
- Near microwaves, medical devices, or low-power radio stations.
• When cleaning this product, rub gently with either a soft dry cloth or a damp cloth with mild detergent.
【
Battery Pack
】
• Do not attempt to disassemble this battery.
• Do not expose the battery pack to liquids or allow the battery contacts to get wet.
• Do not expose the battery pack to heat sources including other devices that produce heat.
• Do not short the power leads on the battery pack. If the (+) and (-) terminals come in contact with metals
(such as a necklace or hairpin), a short-circuit will occur.
• Do not load the battery pack with its (+) and (-) terminals reversed.
• Check the local regulations for proper battery disposal.
( Please refer to the specification manual and instruction guide for details. )
■

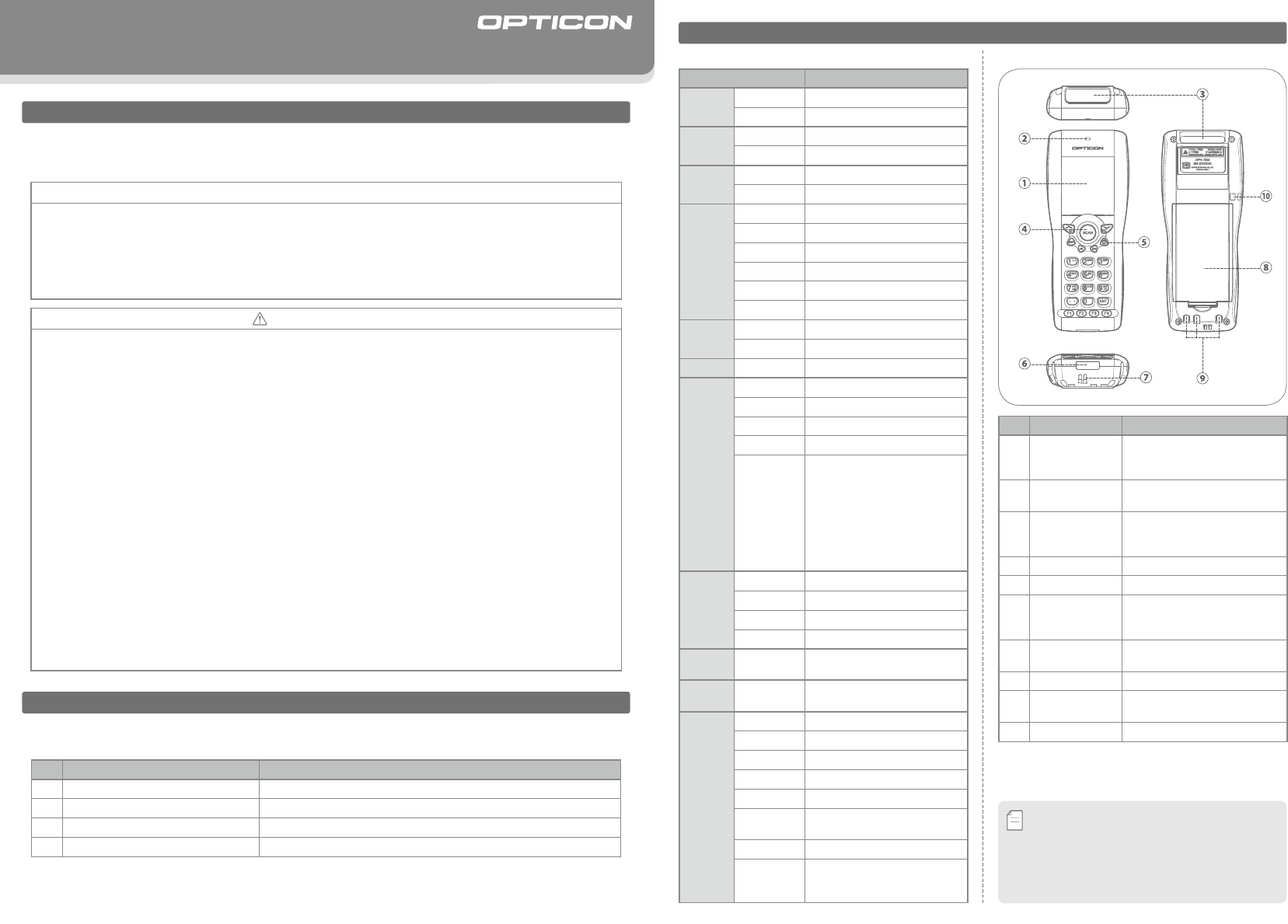

Detailed View
Overview
■
OPH-1004 Basic Specifications
Parameter Specifications
Physical
Features
Size (H) 136.0 x (W) 55.4 x (D) 22.8 mm
Weight Approx. 140g (including Li-ion battery)
Control
Section
CPU
32bit RISC CPU
OS
μ
ITRON
Memory
FROM 4MB
RAM
16Mbyte (User data area: Approx. 14MB)
Display
Section
Material FSTN semi-transmissive LCD
Number of dots 128 dots x 128 dots
Dot size 0.24mm x 0.24mm
Dot pitch 0.02mm x 0.02mm
Backlight White LEDs
Contrast Control Enabled
Other Display
Section
LED
Bi-color LED (Red and Green)
Buzzer Tone and loudness can be configured
Operation Section
Keys 23 keys
Scanning
Section
Light Source
Red laser diode
Wavelength
650
±
10nm
Light Output
1mW or less
Scan Rate 100
±
20scan /sec
Supported
Symbologies
JAN, EAN, UPC-A, UPC-E, NW-
7(Codabar), Industrial 2 of 5,
Int erleaved 2 o f 5, Cod e 11,
Code 39, Code 93, Code 128,
MSI/Plessey, UK/Plessey, IATA,
Telepen, Matrix 2 of 5, S-Code,
Tri-Optic, Chinese Post, EAN 128,
R S S -14 , R S S L i m i t e d , R S S
Expanded, PDF417, MicroPDF417
Power
Supply
Section
Main Battery Lithium-ion battery (3.7V 1100mAh)
Backup Battery Manganese dioxide lithium-ion battery (18mAh)
Operating Time Approx. 80 hours (2 scans/10 sec)
Data Retention Time
More than 7 days
Comm.
Section
IrDA
IrDA Ver. 1.2
Baud rate: (SiR): 9600 to 115.2kbps
Clock
Section
Real Time
Clock (RTC)
Supports year, month, day, hour,
minute, second (leap year supported)
Durability
Operating Temp. -10 deg. C to 50 deg. C
Operating Humidity 20% to 85% (non-condensing)
Storage Temp. -20 deg. C to 60 deg. C
Storage Humidity
20% to 90% (non-condensing)
Charging Temp. 0 deg. C to 40 deg. C
Ambient Light
Immunity
Fluorescent: up to 4,000lx
Sunlight: up to 80,000lx
Dust- and Drip-proof IP54
Shock
Endurance
Dropped 3 times from each of 6 angles
onto concrete from a height of 150cm
with no defects found. (Total 18 times)
Copyright
©
2008, Opticon All rights reserved.
No. Item Function
1 Portable Terminal A laser portable terminal with a barcode scanning feature.
2 Lithium-ion Battery Pack Designated battery pack for the OPH-1004.
3 Strap
4 Quick Start Guide Provides product information and instruction guide.
Before Getting Started
■
What's in the Box
Confirm that you have the following items before getting started:
* The number of accessories may differ depending on the product specification.
Please contact the nearest dealer if accessories are damaged or missing.
No. Part Function
①
LCD
Indicates the status of program
execution, scanned data and so
on.
②
Status LED
(Red and Green)
Alerts users the status of scanning
operation and data communication.
③
Optical Window
The scan engine emits a laser beam
through the optical window while
scanning a barcode.
④
SCAN Key Starts a barcode scanning operation.
⑤
POWER Key Turns ON or OFF the power.
⑥
IrDA
Communication
Window
This portable terminal communicates
with the designated cradle through
the IrDA communication window.
⑦
Buzzer Hole
Buzzer sounds through the buzzer
hole.
⑧
Battery Cover Protects the battery pack.
⑨
Charging
Terminals
Electrical terminals for power distri-
bution and power management.
⑩
Strap Hook
・
To avoid communication problems between the portable
terminal and a cradle, keep the IrDA communication
window clean.
・
The IrDA communication performance may decline
due to excessive ambient light especially under
strong sunlight or inverted fluorescent light.
Memo
Overview
■
Key Layout
Key Function
SCAN Scans a barcode.
Q1
Navigate through the menu or toggle between options.
( These keys can be programmed suitable for user

s application. )
Q2
SHIFT
Shifts from

number input mode

to

alphabet
input mode

and vice versa.
BS Deletes one letter before the cursor.
CLR Cancels an input.
POWER Turns the power ON and OFF.
0-9, .
10 numeric keys to input numbers, alphabets or
symbols.
ENT Determines the input.
F1-F4 4 function keys which can be programmed by a user.
ご
使用
にあたって
Trouble Shooting
The portable terminal does not get powered ON.
A. The battery level of the portable terminal may be extremely low or empty. Please try again after you charge
the portable terminal.
B. Check if the battery cover is closed tight.
The portable terminal does not read a specific type of barcode.
A. That specific type of barcode may not be supported by the portable terminal. Please confirm the specification manual
of the portable terminal for details of supported symbologies.
B. The specific type of barcode may not be enabled in the application. Change the settings in your application.
The portable terminal does not read a barcode smoothly.
A. The scanning performance of the portable terminal may decline due to inappropriate scan angle. Please adjust
the angle of the portable terminal and try again. Make sure that the barcode is within the width of the laser
aiming pattern.
Using the Portable Terminal
■
How to Insert or Exchange a Battery
STEP 3STEP 2STEP 1
Please open the battery cover before
inserting or exchanging a battery.
STEP
1
Make sure that the battery contacts are in
contact with the spring contacts of the
portable terminal.
STEP
2
Please close the battery cover.
STEP
3
Designated Cradles
(Optional)*
We offer a series of communication and charging cradles with different communication methods.
Please select the most suitable cradle for the desired operation.
* Please refer to the specification manual or the instruction guide for details of designated cradles.
* A designated SIM card will be needed to use the CRD-1003 GSM cradle.
Memo
CRD-1001
Communication &
Charging Cradle
Communication Method
(Cradle to Host)
Communicates with the host via RS-232C or USB interface.
Size (H)70.0
×
(W)68.0
×
(D)96.0 mm Max
Weight 110g Max (excluding AC adapter and cable)
Charging Time
2 hours and 10 minutes
RS-232C USB
* The layout of keys may differ depending on the
product specification.
Memo
The Netherlands
Opticon Sensors Europe B.V.
tel: [phone]
/
email: [e-mail]
U.S.A.
Opticon Inc.
tel: [phone]
/
email: [e-mail]
France
Opticon S.A.S.
tel: [phone]
/
email: [e-mail]
Germany
Opticon Sensoren GmbH
tel: [phone]
/
email: [e-mail]
Italy
Opticon s.r.l.
tel: [phone]
/
email: [e-mail]
Spain
Opticon Sensores S.L.
tel: [phone]
/
email: [e-mail]
Contact
Sweden
Opticon Sensors Nordic AB
tel: [phone]
/
email: [e-mail]
United Kingdom
Opticon Limited
tel: [phone]
/
email: [e-mail]
Taiwan
Opticon Far Eastern Ltd.
tel: [phone] / email: [e-mail]
China
Opticon Sensors Europe B.V., Shanghai Representative Oce
tel: [phone]
/
email: [e-mail]
Australia
Opticon Sensors Pty. Ltd.
tel: [phone]
/
email: [e-mail]
Brazil
Opticon Sensors Europe B.V., Latin American Oce
tel: [phone]
/
email: [e-mail]
Please contact OPTICON or your local dealer.
More product details, additional support, and configuration options (from the Universal Menu Book) are available at www.opticon.com.
OPH10049062-0-00
Communication Method
(Cradle to Host)
Communicates via telephone line and connects to the Public
Switched Telephone Network (PSTN)
Size (H)70.0
×
(W)68.0
×
(D)96.0 mm Max
Weight 100g Max (excluding AC adapter and cable)
Charging Time
2 hours and 10 minutes
MODEM
CRD-1002
Communication &
Charging Cradle
Communication Method
(Cradle to Host)
Communicates with the host via GSM (Global System for Mobile
Communications) Network.
Size (H)70.0
×
(W)68.0
×
(D)96.0 mm Max
Weight 115g Max (excluding AC adapter and cable)
Charging Time
3 hours
GSM
CRD-1003
Communication &
Charging Cradle
Correct Incorrect
■
How to Scan a Barcode
Please refer to the following examples of a scanning operation.
Make sure that the barcode is within the width of the laser aiming pattern.
* When the cover is not closed correctly the portable terminal will not be turned ON.
