Installation & Assembly_1

Package Contents
1of1

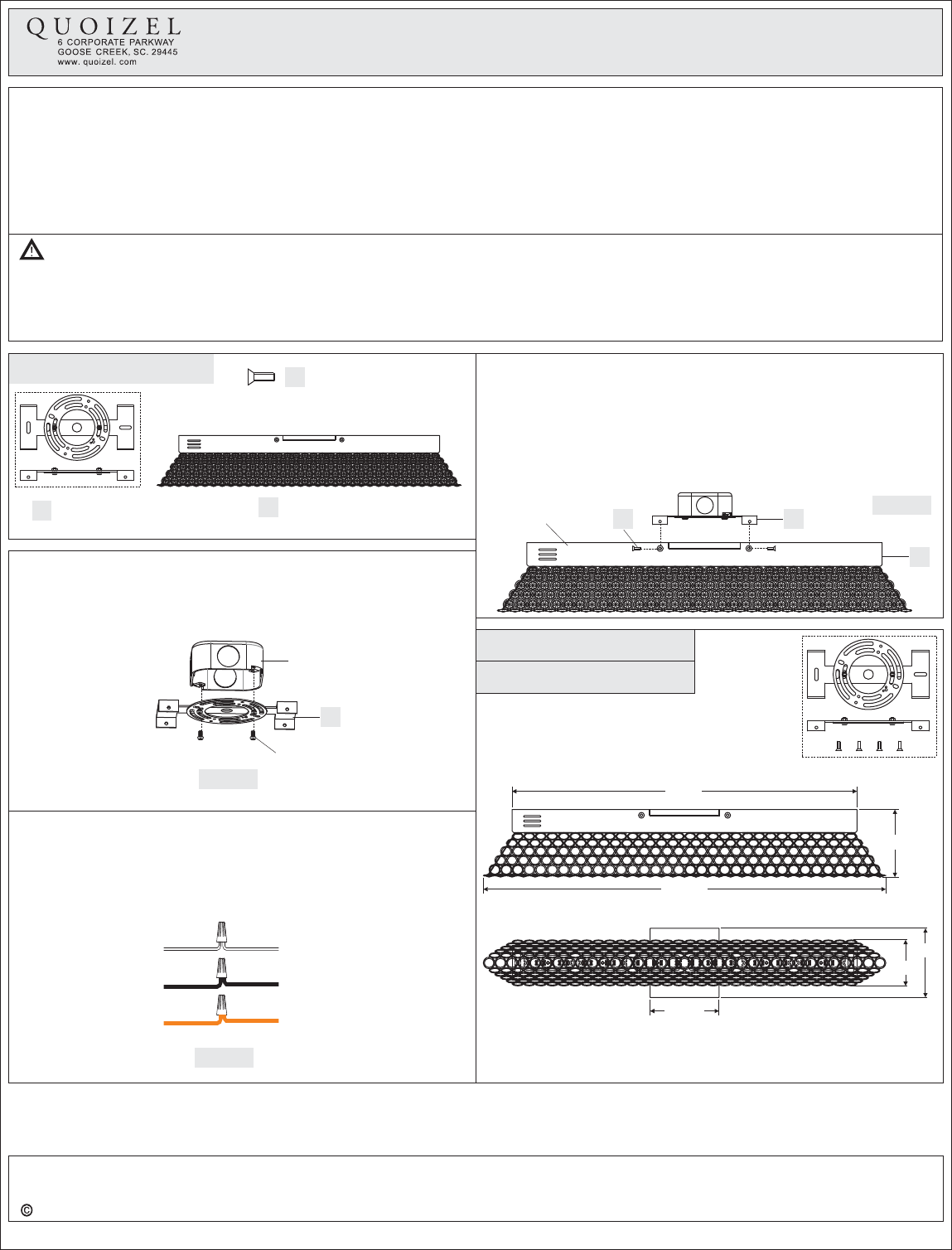

Assembly Instruction Sheet #IS-PCIN8527C
For Style PCIN8527C
Crossbar
Assembly
x1
A
C
Fixture Body
x1
Mounting Screw
x4
B
STEP 1 Attach Crossbar Assembly to Outlet Box-
A. Attach the Crossbar Assembly (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the Mounting Holes
on the Outlet Box. Tighten until snug.
A
Outlet
Box
Outlet Box
Screw
Figure 1
2016 QuoizelInc.
ReleasedDate: 2016-08-17
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Pleasego to forproduct cleaning tips.Goto the selection.
Flatheadscrewdriver, Phillipsscrewdriver,pliers, wire cutters, wirestrippers, electrical tape,safety glasses.
Integrated12W LED
:Lutron DVELV-300PorLutron SELV-300P.
www.quoizel.com Care+ Maintenance
ToolsRequired:
LightSource:
CompatibleDimmer Switches
EstimatedAssemblyTime:
Preparation:
20-30minutes
Identifyand inspect allpartsbefore beginning installation.Check package contentlistand diagrams belowto be sureall parts are
present.If any partsaremissing or damaged,do not attempttoassemble, install, oroperate the fixture.Contactcustomer service forreplacement
parts.
STEP 3 Attach Fixture Body to Crossbar-
A. Fit electrical wires in the backplate of Fixture Body (C) properly. Line
up the holes on the side of the backplate to the mounting holes on
the Crossbar Assembly (A). Secure them with Mounting Screws (B).
Tighten until sung.
Your fixture is now assembled and ready to use. Enjoy!
A
B
Figure 3
C
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply
White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
Backplate
PCIN8527C
FINISH: POLISHED CHROME
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO
THE NEAREST 1/4"
4.75”
27.75”
23.5”
3.25”
4.5”
4.75”
