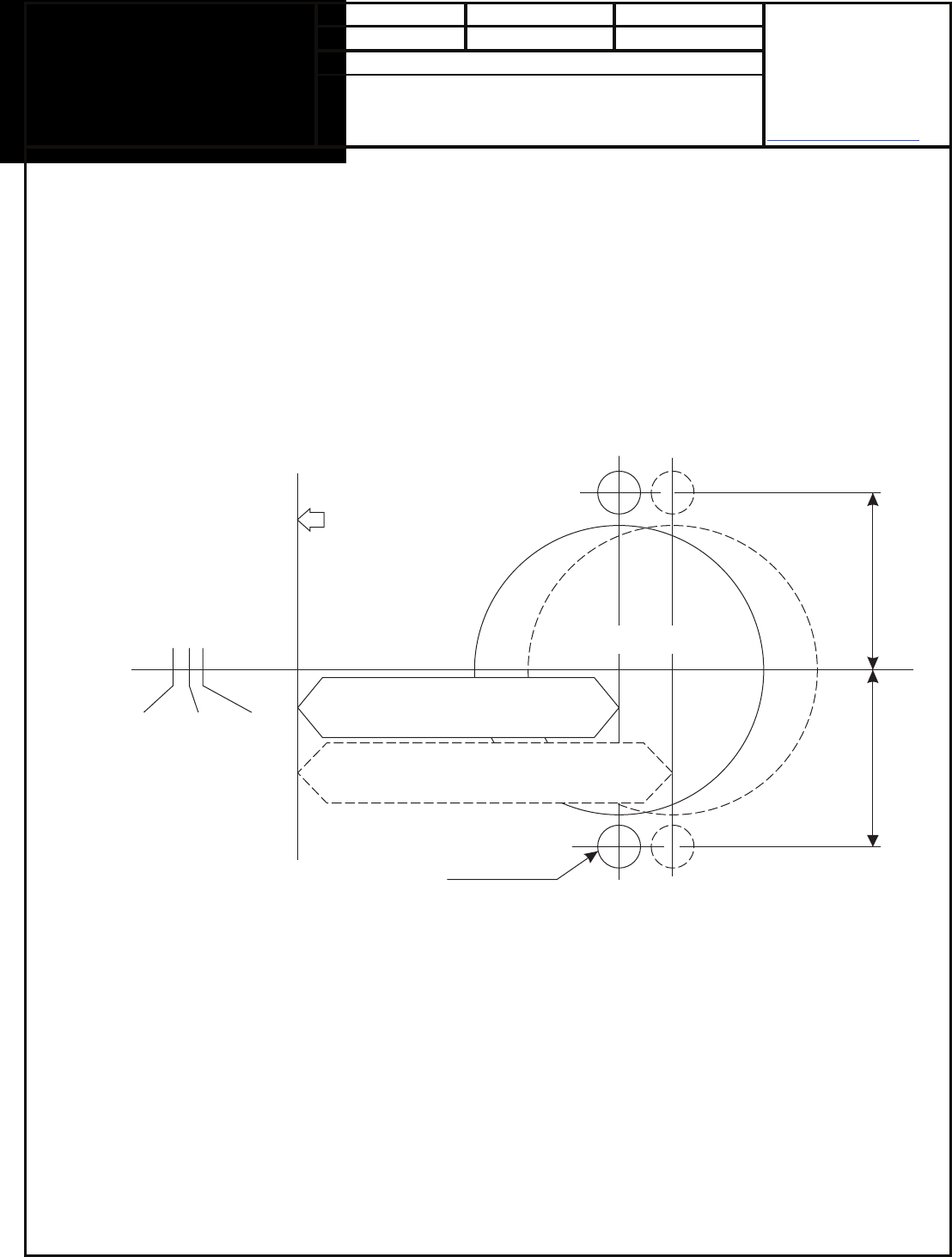

Installation Template

Item No. Unit Version Pamex Inc.
FYC inches (mm) Mver. 15507 4680 Vinita Court
Chino, CA 91710
FYC Series Grade 2 Heavy Duty Cylindrical Leverset Tel: [phone]
Fax: [phone]
www.pamexinc.com
Description
Drawing Is Not to Scale
1-13/16"
(46mm)
1-3/8"
(35mm)
1-9/16"
(40mm)
Ø2-1/8"(54mm)
Ø5/16"(8mm)
1-3/8" (35mm)
door edge
Drill 1" (25.4 mm)
hole at the center
of door edge.
Backset 2-3/4"(70mm)
Backset 2-3/8"(60mm)
1-3/8" (35mm)
