Placing Originals (Facsimile/Internet Fax/Email)
■■
■■

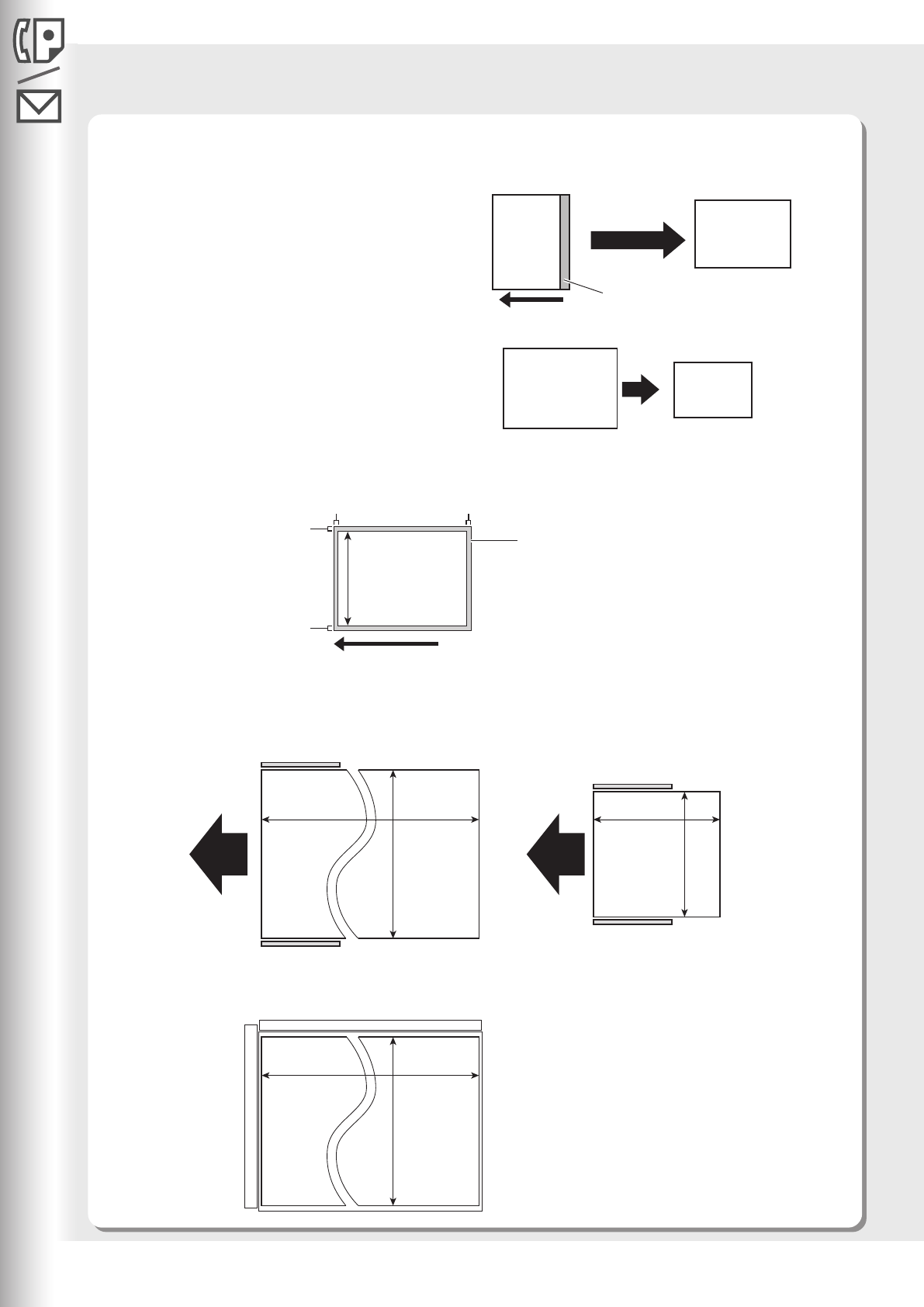

■ How to Place Originals
●●
●●
● On the ADF/Platen (See page 21)
The original’s border (gray area)
will be lost during scanning.
Scanning
Width:
206 mm
(8.1")
Ex:
Original Width:
216 mm (8.5")
Scanning Direction
When transmitting non-standard size original(s),
the machine may perform Rotate Transmission
automatically and not transmit the portion of the
original that exceeds the standard size (“P” portion).
P
A
A
Rotation XMT
Scanning Direction
The portion labeled “P”
that exceeds the standard
original size is not sent.
●●
●●
● Sending Non-Standard Size Originals
● When an oversized original is sent
to another machine, sometimes, it is
reduced in accordance with the other
party’s recording paper size.
Ex:
A
11" x 17" size
A
8.5" x 11" size
●●
●●
● Scanning Area
●●
●●
● Original Size
Maximum Size
Minimum Size
2000 mm (78.7")
Scanning
Direction
279 mm (11")
140 mm (5.5")
Scanning
Direction
140 mm (5.5")
From the Platen Glass
Maximum Size
432 mm (17")
279 mm (11")
From the ADF
5 mm
(0.2")
5 mm
(0.2")
8 mm (0.3")
with Header Area
5 mm (0.2")
