Replacing Consumables
60
6
7
8
Follow the steps 11 to 13 on page 58 to
check the staple operation.
■■
■■
■
1-Bin Saddle-Stitch Finisher (DA-FS355A)
2
1
1
2
3
4
5
● When the Staple jams
The following message will be displayed on the
Touch Panel Display: “Can Not Complete Confirm
Staple Unit”
1
3
2
4

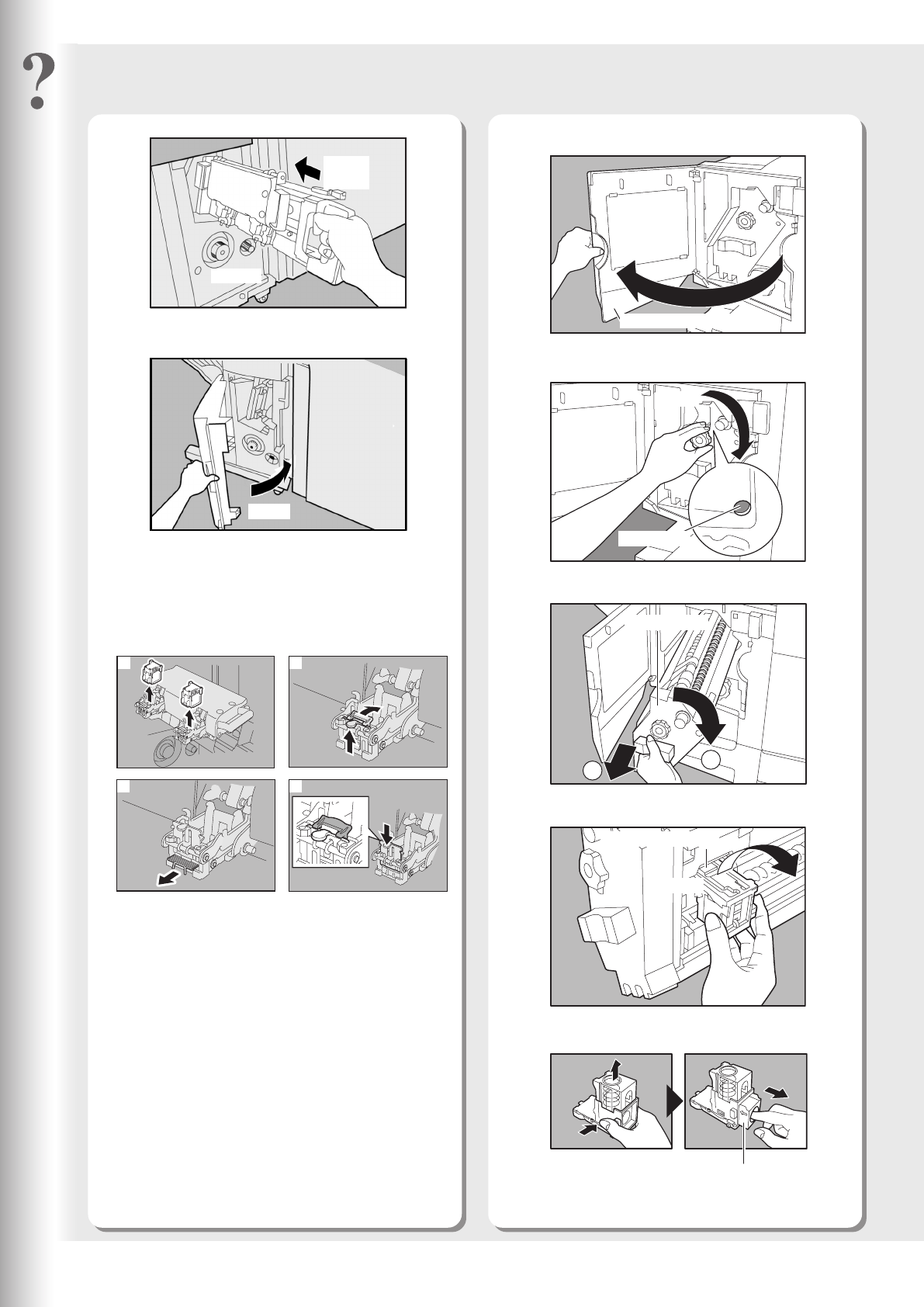

Replacing the Staple Cartridge
Return
Until it
stops
Close
Open
Finisher Front Cover
Turn
Blue Mark
Stapler Unit
Staple Cartridge
Pull out
Empty Staple Case
