User guide

Park Tool Co.

5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com

CBP-3 part numbers

Part No. Description

Qty.

1190 T-handle Assembly 1

1192-2 Pin 2

1193-2 Caliper 2

1191 Cross Member 1

1196 Washer 1

Part No. Description

Qty.

259 Knob and Shaft 2

1195 Body 1

132S Washer 1

1194C Retaining Clip 1

847A Installation Tool 1

CBP-3 Bearing Puller and

Installation Set

PAGE 1

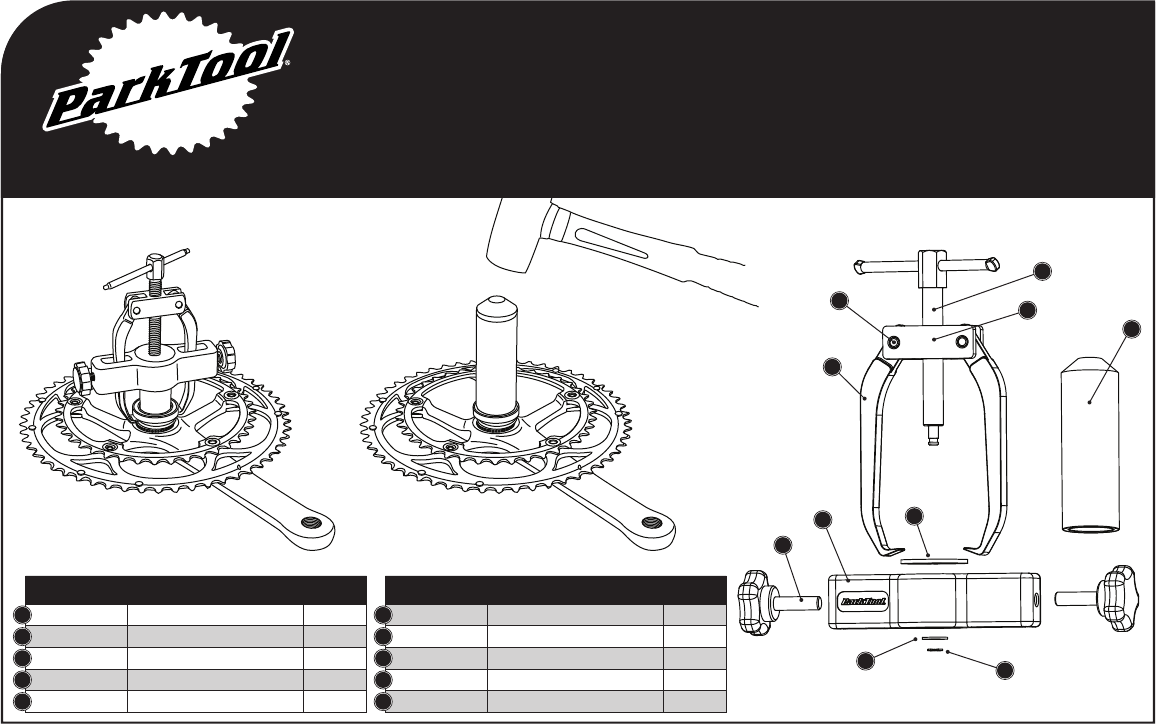

CBP-3 Bearing Puller and Installation Set Park Tool Co. 5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com 1 2 4 10 3 5 7 6 CBP-3 part numbers 1 2 3 4 5 Part No. Description 1190 1192-2 1193-2 1191 1196 T-handle Assembly Pin Caliper Cross Member Washer Qty. 1 2 2 1 1 Part No. 6 259 7 1195 8 132S 9 1194C 10 847A Description Knob and Shaft Body Washer Retaining Clip Installation Tool Qty. 2 1 1 1 1 8 9 © 2014 Park Tool Co.
PAGE 2
CBP-3 Bearing Puller and Installation Set Park Tool Co. 5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com The CBP-3 is designed and built to remove and install the pressed bearing used on Campagnolo® and Fulcrum® UltraTorque cranks. Bearing Removal 1. Remove snap ring from crank spindle. Failure to remove snap ring willresult in damage to tool. 2. Position body (Ref. #7) of bearing puller over crank spindle and thread T-handle (Ref. #1) to allow tips of calipers (Ref.
