F4F Wildcat Manual

5
EN
A
B
2
3
4
1
A
Elevator Ailerons Rudder
ArmsHorns

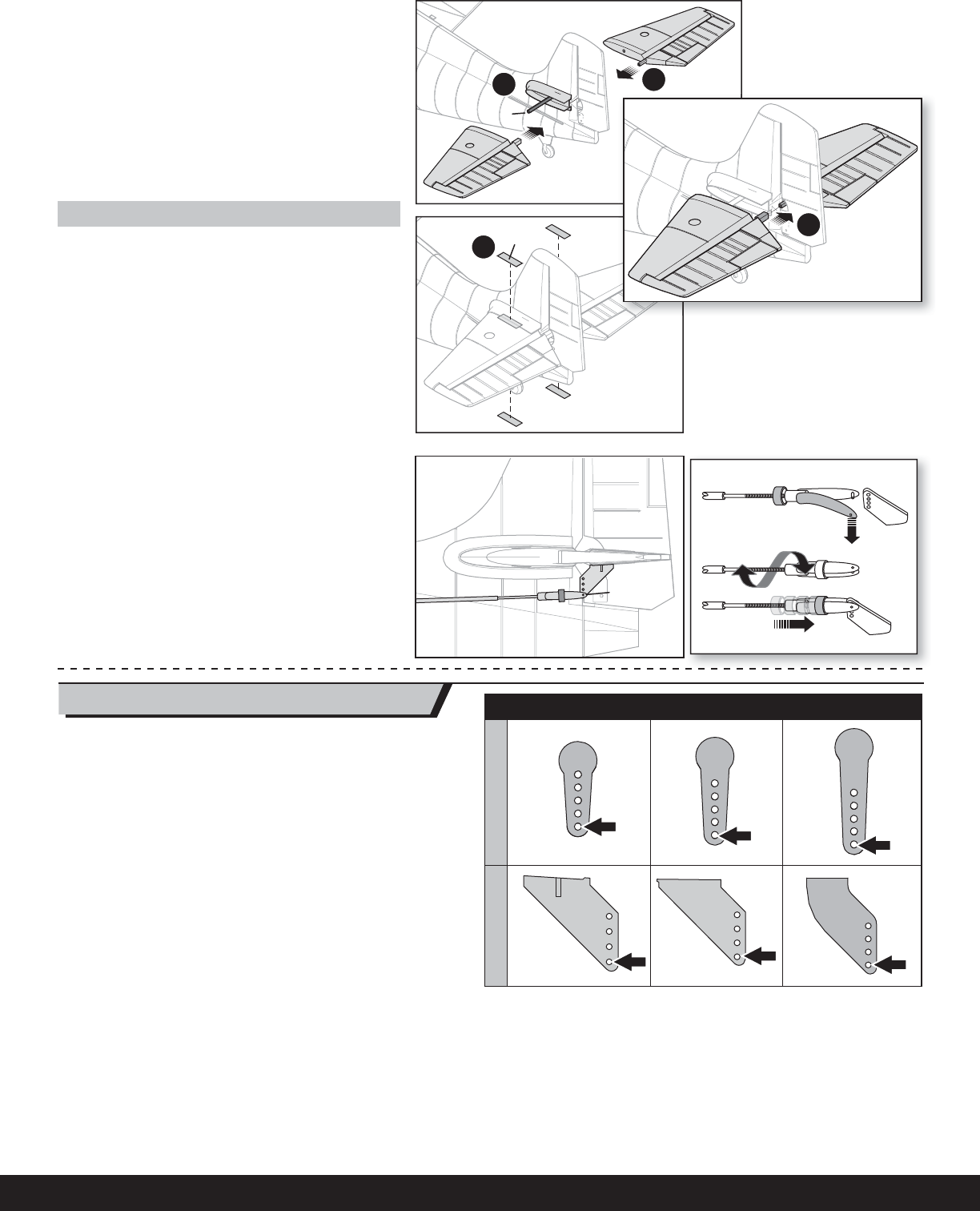

The illustration shows recommended hole settings in the servo arms
and control horns.
Control Horn and Servo Arm Settings
Installing the Tail
1. Insert the horizontal stabilizer tube (A) into the hole in the
rear of the fuselage.
2. Slide the right horizontal tail onto the tube on the right side
of the fuselage until it seats into the slot in the fuselage.
3. Repeat Steps 1 and 2 for the left horizontal tail while
connecting the elevator joiner to the left and right horizontal
tails.
4. Attach the horizontal tail sections to the top and bottom of
the fuselage with (4) pieces of tape (B).
NOTICE: Removing tape will remove paint from painted parts
Attaching the Clevis to the Control Horn
Finish the installation of the tail by connecting the control rod
with the clevis on the tail control horn under the elevator.
1. Open the clevis and put the pin in the bottom hole (A) of
the control horn.
2. If needed, remove the clevis from the control horn.
- Turn the clevis (as shown) on the control rod (also called
a pushrod).
- Close the clevis onto the control horn and slide the tube
towards the horn to secure the clevis.
