Instruction Manual

012-13496B

Rotary Motion Sensor

PS-2120A

*See the PASCO catalog or the PASCO web site at www.pasco.com for more information.

For downloadable experiments, go to www.pasco.com and enter PS-2120A in the Search window.

Check the User Resources tab.

Equipment Included Equipment Included

Rotary Motion Sensor (PS-2120A) Three-step Pulley

Hex Key Thumbscrew

O-ring Rod Clamp

Required Items* Part Number

PASCO PASPORT Compatible Interface see www.pasco.com

PASCO Data Acquisition Software see www.pasco.com

PASPORT Sensor

Plug

Rod clamp

O-ring for

Three-step

Pulley

Three-step

pulley

Hex Key

Thumbscrew

T-Slot

Additional

mounting

position for

rod clamp

(1 of 2)

Case

Alignment notch

Summary of content (9 pages)

PAGE 1

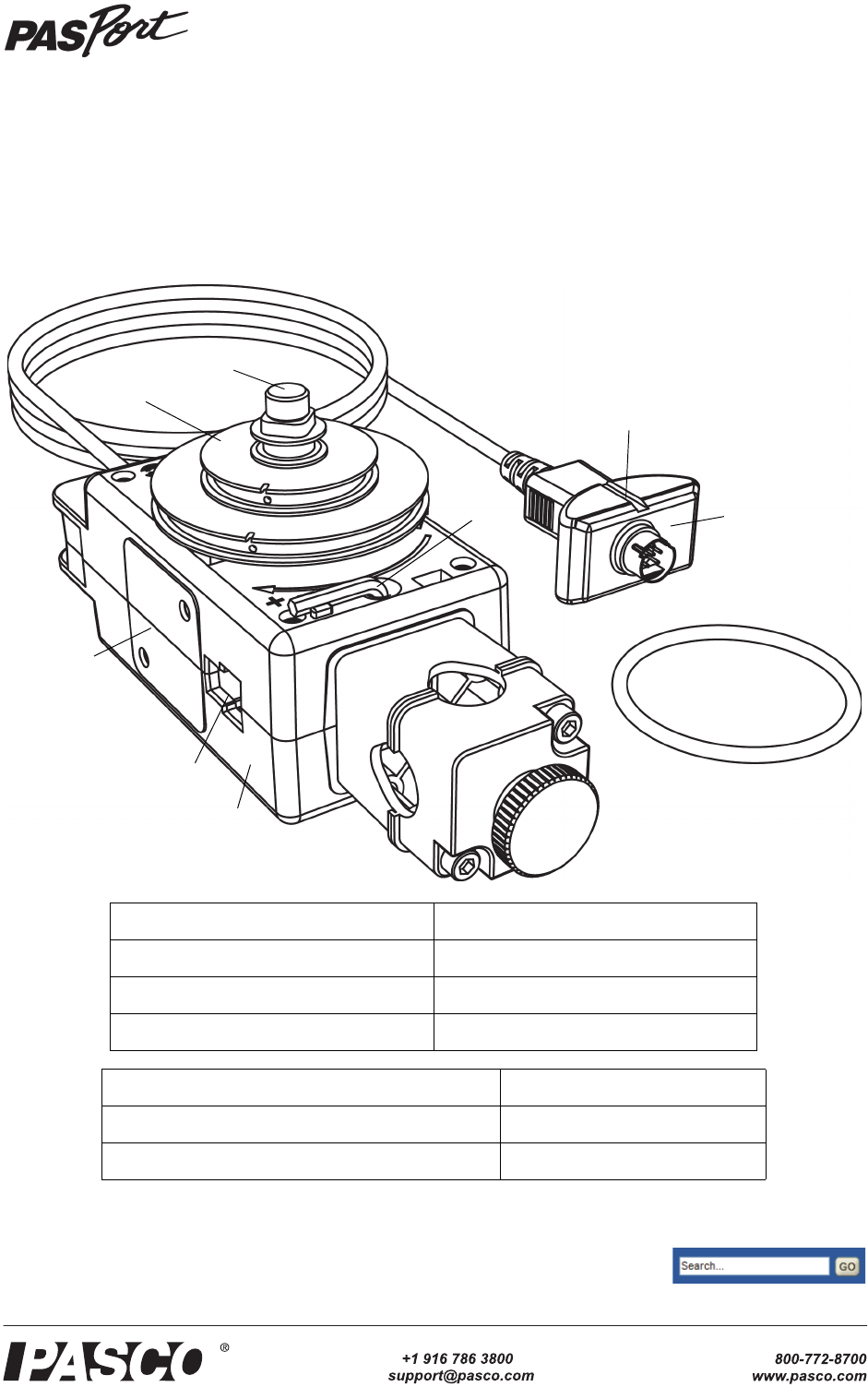

Instruction Manual 012-13496B Rotary Motion Sensor PS-2120A Three-step pulley Thumbscrew Alignment notch PASPORT Sensor Plug Hex Key Additional mounting position for rod clamp (1 of 2) T-Slot O-ring for Three-step Pulley Case Rod clamp Equipment Included Equipment Included Rotary Motion Sensor (PS-2120A) Three-step Pulley Hex Key Thumbscrew O-ring Rod Clamp Required Items* Part Number PASCO PASPORT Compatible Interface see www.pasco.com PASCO Data Acquisition Software see www.pasco.
PAGE 2
Model No.
PAGE 3
Model No.PS-2120A Introduction Mounting the Rotary Motion Sensor The rod clamp fits rods up to 12.7 mm in diameter, such as the ME-8736 45 cm Stainless Steel Rod, and the rod clamp can be attached to the sensor in three different locations: at the end opposite to the cable and on either side of the case. Case Rod clamp Use the included hex key to loosen the two screws that hold the rod clamp on the Rotary Motion Sensor case.
PAGE 4
Rotary Motion Sensor Introduction Mounting the Rotary Motion Sensor to a Large “A” Base The Rotary Motion Sensor can be mounted on the base of the Rotating Platform (ME-8951) using the “A” Base Rotational Adapter (CI-6690, available separately). Rotary Motion Sensor Adapter Bracket The “A” Base Rotational Adapter includes an adapter bracket, a three-step pulley, a drive belt (“O” ring), and a shoulder screw.
PAGE 5
Model No.PS-2120A Introduction Pendulum Setup Point Mass Setup Attaching the Chaos/Harmonic Motion Accessory to the Rotary Motion Sensor The Chaos/Harmonic Motion Accessory (CI-6689A) is a driven damped physical pendulum. Various types of phase plots can be made as the driving frequency, driving amplitude, initial conditions, and amount of damping are varied. The Magnetic Damping Attachment attaches to either side of the Rotary Motion Sensor in the same way as the rod clamp is attached.
PAGE 6
Rotary Motion Sensor Introduction Download-able Experiments Experiments for the Rotary Motion Sensor in electronic format are available to download from the PASCO web site at www.pasco.com. Go to the PASCO web site at www.pasco.com and enter PS-2120A in the Search window. Check the User Resources tab. Three suggested experiments are: • Rotational Inertia of a Point Mass • Rotational Inertia of Disk and Ring • Conservation of Angular Momentum.
PAGE 7
Model No.PS-2120A • Set up a data display. For example, drag the Graph icon from the Displays palette onto the workbook page, or double-click the icon to create a Graph display.. Introduction Graph display icon Create a Graph display • • Set up the Graph display to show Angular Velocity (rad/s) on the vertical axis. Click the “Select Measurement” menu button on the vertical axis and pick Angular Velocity (rad/s) from the menu. Time (s) automatically shows on the horizontal axis.
PAGE 8
Rotary Motion Sensor Introduction SPARK SLS Setup • In the Home Screen, press “Angular Velocity” and then press the Show button ( ) to open a graph display. SPARK SLS Home Screen for the Rotary Motion Sensor Press “Angular Velocity” Press Show • Press the Start button ( ) to begin recording data. Turn the shaft of the sensor and view the data in the display.
PAGE 9
Model No.PS-2120A Introduction Technical Support For assistance with any PASCO product, contact PASCO at: Address: PASCO scientific 10101 Foothills Blvd. Roseville, CA 95747-7100 Web: www.pasco.com Phone: Email support@pasco.com +1 916-462-8384 (worldwide) 877-373-0300 (U.S.) Limited Warranty For a description of the product warranty, see the PASCO catalog. Copyright The PASCO scientific Instruction Manual is copyrighted with all rights reserved.
