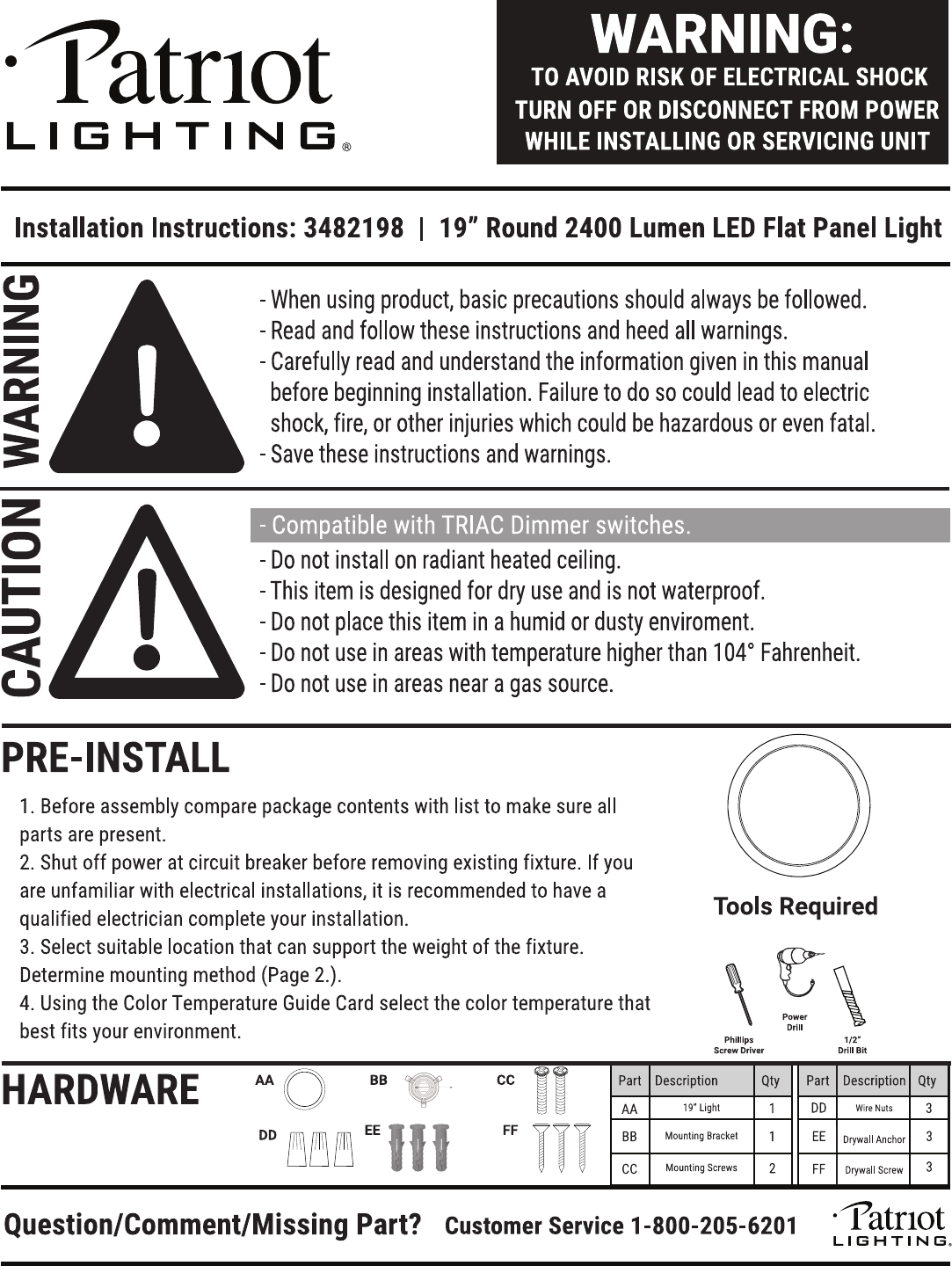

WARNING: 1 patriot TO AVOID RISK OF ELECTRICAL SHOCK TURN OFF OR DISCONNECT FROM POWER LIGHTING. WHILE INSTALLING OR SERVICING UNIT Installation Instructions: 3482198 | 19” Round 2400 Lumen LED Flat Panel Light When using product, basic precautions should always be followed. Read and follow these instructions and heed all warnings. Carefully read and understand the information given in this manual before beginning installation.
“Patriot SEE TURN OFF OR DISCONNECT FROM POWER LIGHTING. WHILE INSTALLING OR SERVICING UNIT Installation Instructions: 3482198 | 19" Round 2400 Lumen LED Flat Panel Light INSTALLATION INSTRUCTIONS Flush Mount Install Option 1. Before starting any installation be sure to verify that the power is OFF at the Figure 1. circuit breaker. Locate each wire: hot (black), Neutral (white), and ground (green or bare copper). 2. Remove the mounting ring from the LED Light. 3.
. Patriot 0) Bf Ed TURN OFF OR DISCONNECT FROM POWER LIGHTING. A I LL ELE Installation Instructions: 3482198 | 19" Round 2400 Lumen LED Flat Panel Light INSTALLATION INSTRUCTIONS Figure 3. ee Problem Possible Cause Solution ‘The fixture does not light. The power Is off. Check that the power supply is ON. There Is a bad wire connection. Check the wiring. The switch is defective. Test or replace the switch. Incorrect wire connections, or hot wires are Clu breaker rps when power ls sent to the ght.
PP. WARNING: 1 patriot TO AVOID RISK OF ELECTRICAL SHOCK TURN OFF OR DISCONNECT FROM POWER LIGHTING. AL EL LL Installation Instructions: 3482198 | 19” Round 2400 Lumen LED Flat Panel Light CARE AND CLEANING Your fixture is made from quality materials that will last many years with minimal care. You may want to periodically clean the diffuse or interior of the fixture. Use a mild, non-abrasive glass cleaner. Do not use any solvents or harsh cleaning agents. Use a soft, non-abrasive cloth.
