Ethernet 49
SmartNode 4940 Getting Started Guide C • Cabling
Ethernet
Ethernet devices (10Base-T/100Base-T/1000Base-T) are connected to the SmartNode over a cable with RJ-45
plugs. The Ethernet port on the SN4940 is Auto-MDX and uses any straight or crossover cable to connect to
hubs, switches, PCs or other devices.

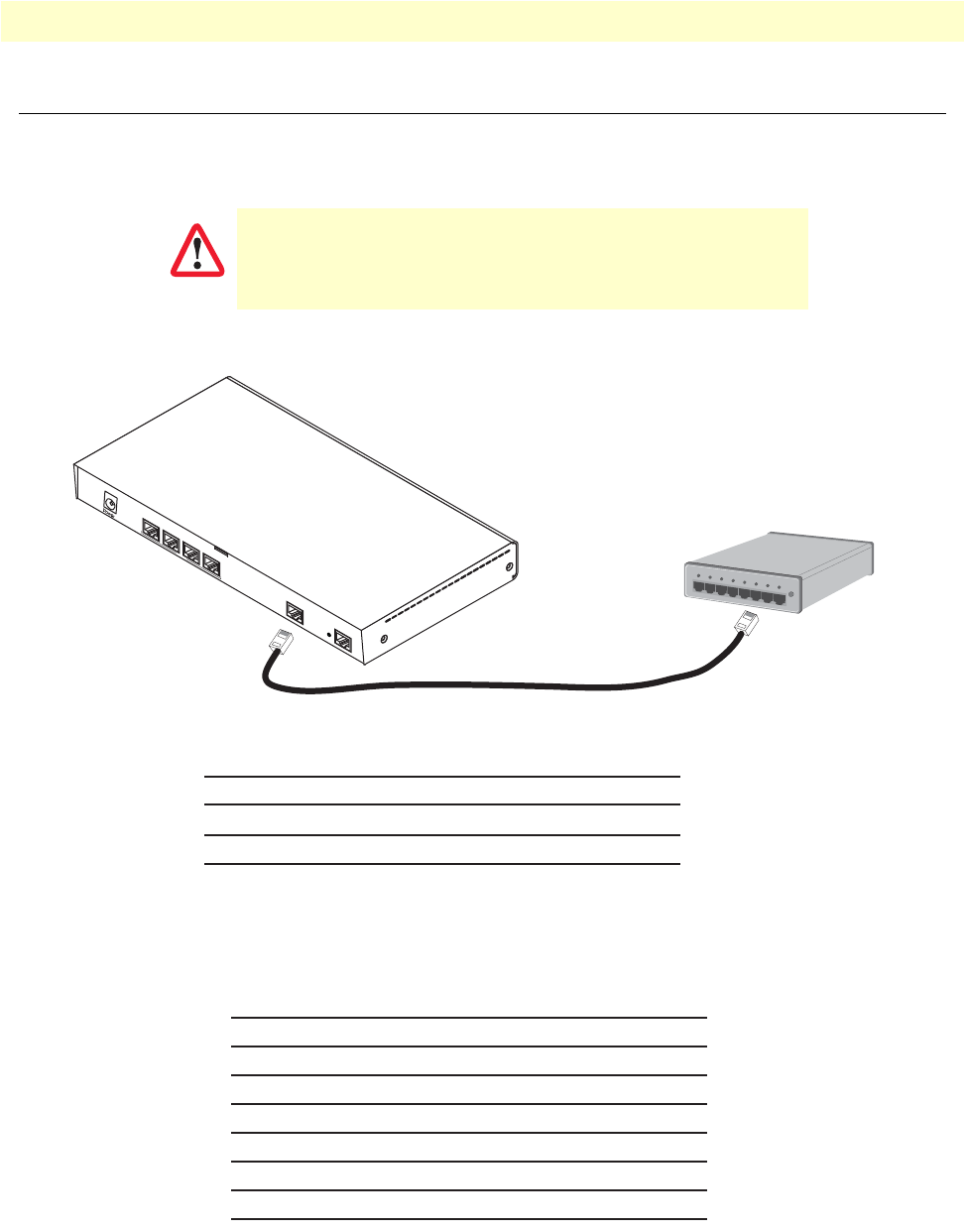

Figure 8. Typical Ethernet straight-through cable diagram for 10/100Base-T
Figure 9. Typical Ethernet straight-through cable diagram for 1000Base-T
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to volt-
age, current, anticipated temperature, flammability, and
mechanical serviceability.
CAUTION
Hub
RJ-45, male
1
2
3
6
RJ-45, male
1
2
3
6
Straight-through cable
Note: Other pins are not used.
R
S-232
Console
ETH
0/1
Reset
0/0
0/1
0/2
0/3
T1/E1
RJ-45, male
1
2
3
6
4
5
7
8
RJ-45, male
1
2
3
6
4
5
7
8
