05/11/2012

Ins-30201 Net2 Entry - Panel

Technical Support

Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT)

Saturday from 09:00 - 13:00 (GMT)

01273 811011 support@paxton.co.uk

Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/

Paxton

The Net2 Entry panel is a robust door entry panel incorporating both door entry and access control functions.

It is powered using power over Ethernet (PoE) and communicates with the other elements of the system using

IPv6, providing 'plug and play' installation. Each panel is associated with a Net2 Entry control unit which is the

interface to the door hardware.

Description of product

The panel is equipped with a keypad and a proximity token reader. A resident can use either the keypad or a token

to gain entry. Installers gain access to the menu options using an engineer code or an engineer token.

Net2 software is used to administer the access control functions. It must be v4.25 or a later version.

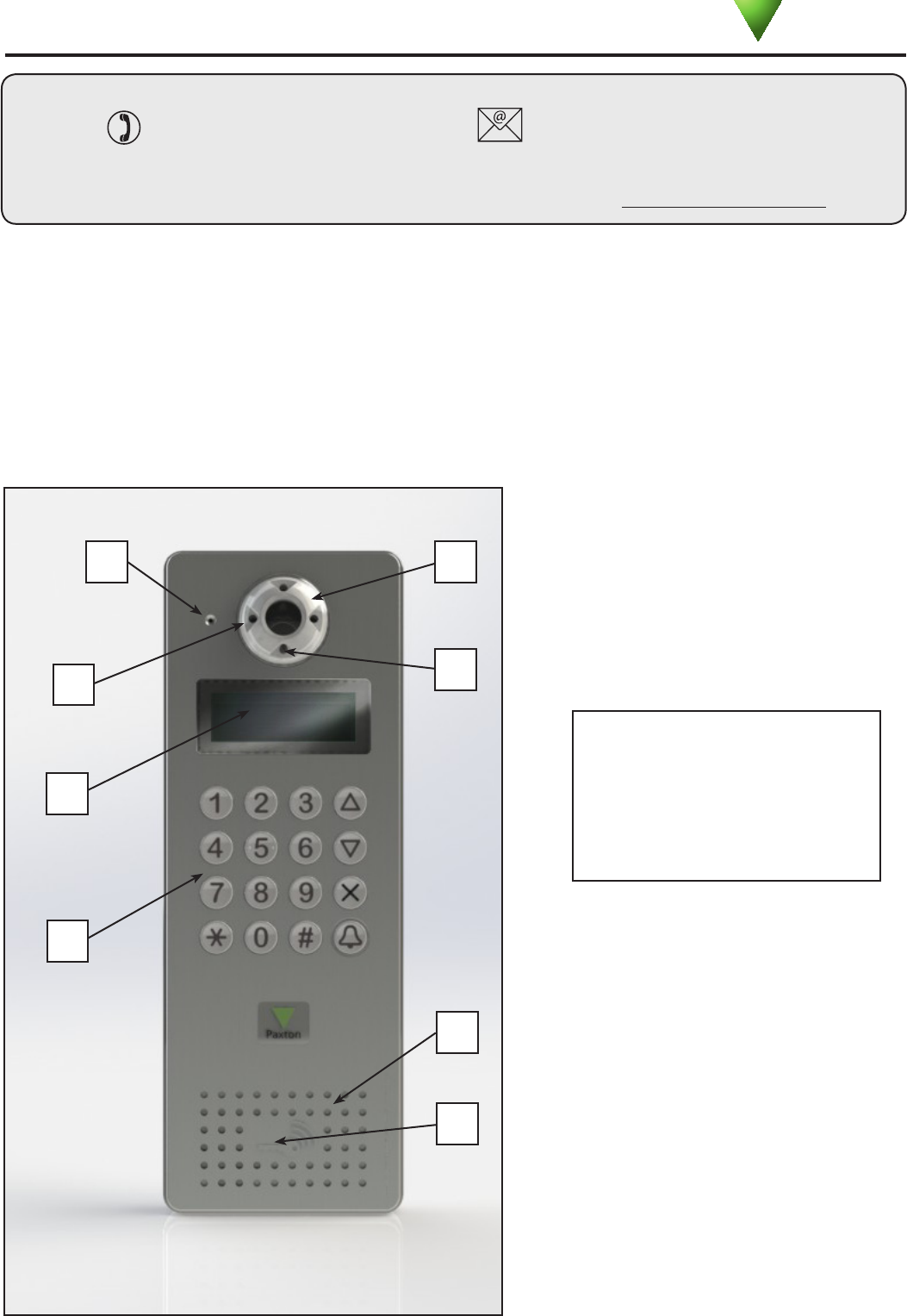

1. Speaker

2. Proximity reader

3. Backlit keypad

4. LCD display

5. IR LEDS for night time operation

6. Microphone

7. Colour camera

8. Light sensor

6 7

Only one panel can be associated with a control unit. Multiple panel installations require a control unit for each panel.

Summary of content (7 pages)

PAGE 1
05/11/2012 Paxton Ins-30201 Net2 Entry - Panel Technical Support 01273 811011 support@paxton.co.uk Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT) Saturday from 09:00 - 13:00 (GMT) Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/ Description of product The Net2 Entry panel is a robust door entry panel incorporating both door entry and access control functions.
PAGE 2
Installation The best height to install the panel is with the camera at eye level. This will allow you to see your visitor's face clearly even when they are wearing a hood or cap. To achieve the best camera performance, try to mount the panel facing away from direct sun or a bright light source. This will also help the user to read the LCD display. Decide how the units are to be connected. You can either run your own wired network or (with the owner's permission) share the buildings existing data network.
PAGE 3
SURFACE MOUNT 1. Determine and mark the height and position for the camera. 2. Mark and drill the hole for the network cable (network patch or Cat5). Ensure that the waterproof grommet will have clearance behind the backbox. 3. Determine the position of the mounting screws, drill the holes and push in the No 8 wall plugs. 4. 5. 6. 7. 8. 9. Pass the cable through the backbox and secure with the grommet. (A loose grommet is supplied for Cat5 cable) Secure the backbox to the wall with the screws provided.
PAGE 4
Use the up and down arrows on the panel to view all the menu options. Use the X key to Cancel Initialising a new system The first time the system is powered up the panel will request that the Language to be used is confirmed. It then asks for an Engineer code to be set up. Enter the required code and press the bell key. Confirm the code and press bell to complete the process. The Net2 Entry system uses a separate control unit to operate the door.
PAGE 5
Use the up and down arrows on the panel to view all the menu options. 1. Door open time Use the X key to Cancel from the Engineer menu - Press key 1. This is the time period that the lock will stay released once the open door button has been pressed on a monitor. This value may only be changed when not administered by Net2. 2. Volume settings 1. Set voice volume from the Engineer menu - Press key 2 from Volume settings menu - Press key 1 This sets the volume of the entry panel speaker.
PAGE 6
5. Panel settings 1. Set control unit from the Engineer menu - Press key 5 from Panel settings menu - Press key 1 This sets the control unit that the Net2 Entry panel is associated with. Enter the Serial Number of the control unit and then press Bell. 2. Factory reset from Panel settings menu - Press key 2 This returns the Entry panel to Factory settings Press 1. Yes Press 2. No 3. Backlight from Panel settings menu - Press key 3 This sets when the Entry panel backlight will be on. Press 1.
PAGE 7
. Engineer Access 1. Set Engineer Code from the Engineer menu - Press key 7 from Engineer Access menu - Press key 1 This allows the Engineer to change the Engineer code 2. Change Engineer Token from Engineer Access menu - Press key 2 This allows the engineer to add / change the Engineer token The engineer can create a token that can be presented to the proximity reader instead of using the engineer code to gain access to the Engineer Menu. 8.
