Suitability

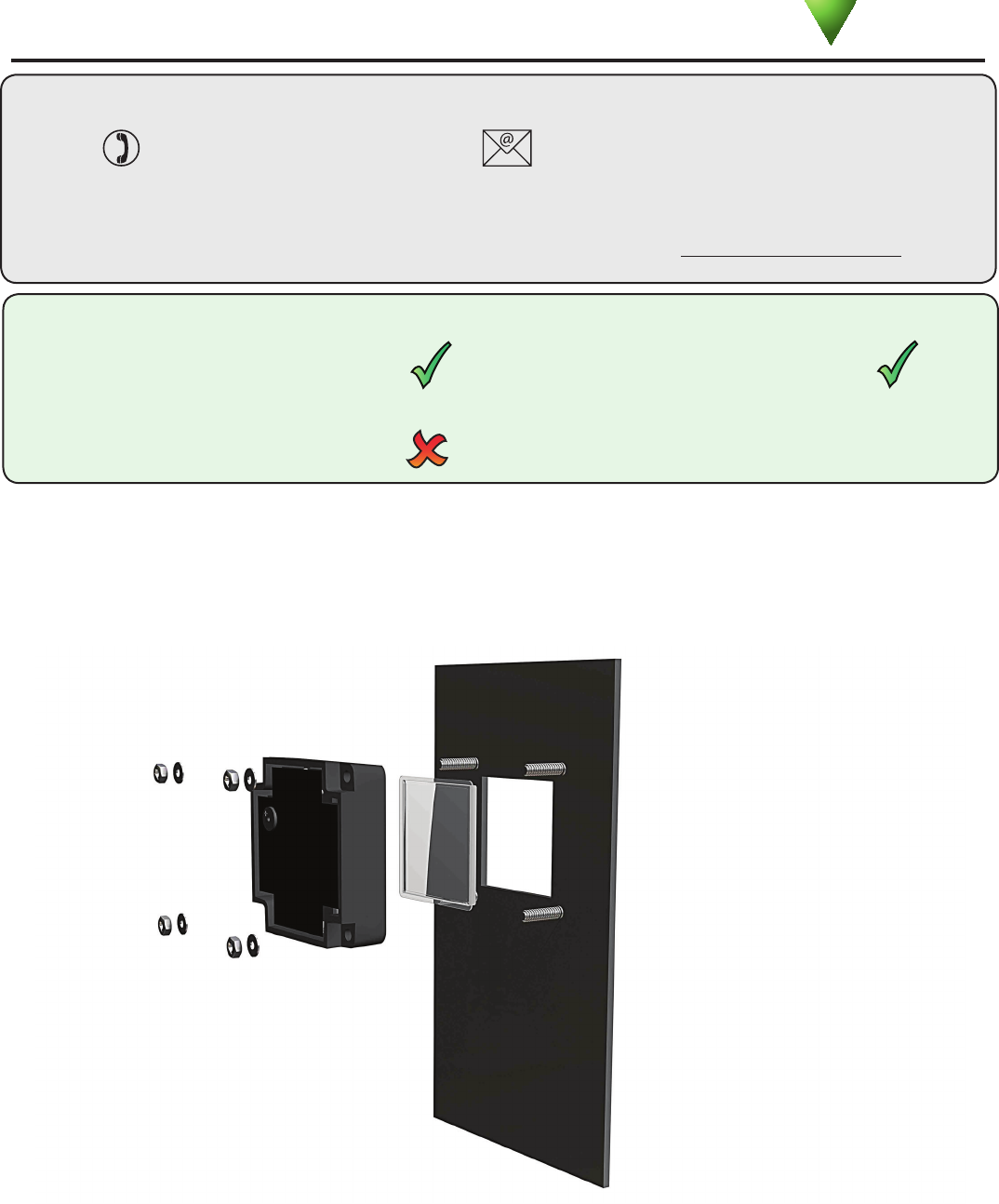

Fitting

18/08/2011

Security-sensitive doors

Wet environments

Readers mounted together

Compatible with hands free tokens

between readers

300 mm

Technical Support

Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT)

Saturday from 09:00 - 13:00 (GMT)

01273 811011 support@paxton.co.uk

Ins-30078 PROXIMITY panel mount reader

Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/

Paxton

Summary of content (4 pages)

PAGE 1
8/08/2011 Paxton Ins-30078 PROXIMITY panel mount reader Technical Support 01273 811011 Technical help is available: support@paxton.co.uk Monday - Friday from 07:00 - 19:00 (GMT) Saturday from 09:00 - 13:00 (GMT) Documentation on all Paxton products can be found on our website - http://www.paxton.co.
PAGE 2
Wiring Connection to a control unit reader port WHITE labelled control units provide 5V at the Red terminal. The Red power wire for the reader should therefore be directly connected to the 12V supply terminal. Cable extensions Readers can be extended using Belden CR9540 10-core overall screened cable to a maximum of 100 metres. Connection modules Reader junction box (325-020) This module can be used to provide a connection point for the reader RJ45 plug.
PAGE 3
Technical Help Here is the list of topics about this product that receive the most technical support enquiries. We list them here to help you speed up the installation and trouble shooting process. 1 - Readers/Keypads not working. Q- Software settings - Confirm that the settings of the reader or keypad are correct. Q- Connections - Check the wiring and integrity of the connectors. If possible, test this reader on the other port. Q- Extended cable - Belden 9540 should be used up to a maximum of 100 m.
PAGE 4
Specifications Environment Min Max Operating temperature - 35 °C + 66 °C Outdoor Use IPX7 Waterproof Cable length 5 metres Min Electrical Voltage 10V DC Current Max 14V DC 110 mA Carrier frequency 125 kHz Clock and data bit period 600 µs Read Range Dimensions Token Keyfob Hands Free Token 50 mm 40 mm Not Compatible Width Height Depth Panel mount reader 58 mm 58 mm 17 mm Window size 40 mm 40 mm Mounting holes - 3.
