PROBASS 500 Operation Manual For more information on other great Peavey products, go to your local Peavey dealer or online at www.peavey.
Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: Risk of electrical shock — DO NOT OPEN! CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside.
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions.

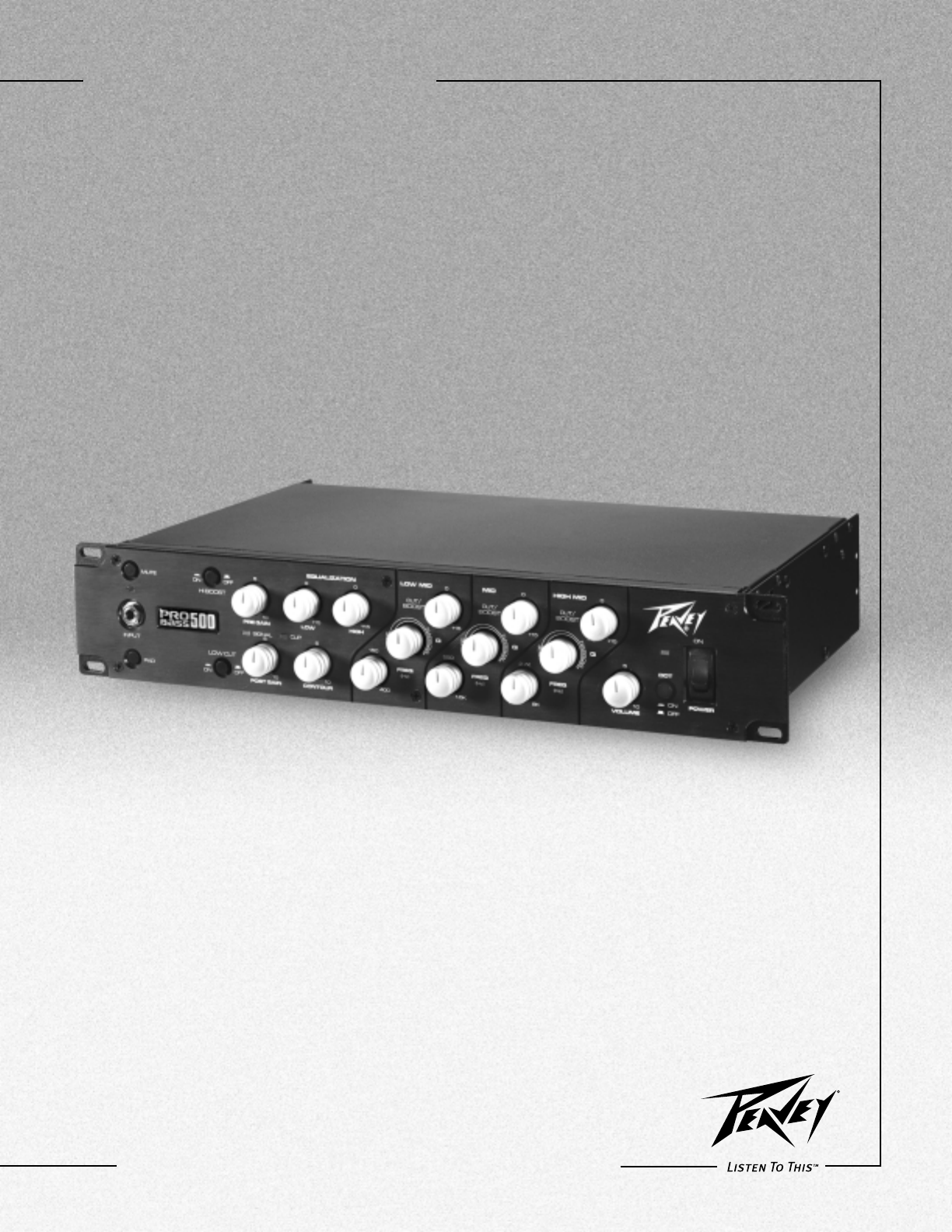

ENGLISH PROBASS 500™ Congratulations on your purchase of the PROBASS 500 by Peavey. You’ll find features and tone galore in this 2-rack space bass amplifier. The PROBASS 500 offers a tube front-end (preamp) section for that smooth tube sound combined with a solid-state amplifier for mind-blowing power. The PROBASS 500 is a professional bass amp with flexible features not even found on the high-end boutique power amps.
Front Panel 1 5 7 9 10 14 2 15 3 16 4 6 8 12 25 14–22 full parametric EQ 17 18 19 20 21 22 14–22 full parametric EQ 11 23 24 26 13 1 mute switch When this switch is depressed the input is muted for silent tuning or break time! 2 mute status LED When the mute switch is enabled the red mute status LED blinks. 3 input jack This mono 1/4" input will accept signals from all types of bass pickups. This input‚ when utilized‚ overrides the rear 1/4" input jack.
14–22 3-band parametric EQ Each band of the parametric EQ section has a control for: cut/boost; bandwidth (Q) and frequency. This is a full parametric EQ! All three bands of parametric EQ overlap‚ giving you control over the entire tonal spectrum. 14‚ 17‚ 20 cut/boost This control behaves like any other active EQ control where CW (clockwise) rotation provides boost‚ CCW (counterclockwise) rotation provides cut and the 12 o’clock position (detent) provides no action at all (no cut or boost).
Rear Panel 30 31 32 33 34 35 36 37 38 39 40 41 42 27 28 29 27 ground polarity switch The ground switch is a 3-position‚ rocker-type switch. Under normal operation it should be in the center (zero) position. If hum or noise is present with the ground switch in the center position‚ place the ground polarity switch to positive or negative (+ or -) to minimize hum. Should a problem continue‚ consult your authorized Peavey dealer‚ the Peavey factory or a qualified service technician.
35 effects send Output for supplying signal to an external low-level effects or signal processing unit. 36 effects mix Since the effects loop on the ProBass 500 is a side-chain effects loop‚ the mix between the dry (unaffected) and wet (effects) signal can be adjusted with this control. When the control is fully CCW‚ there will be no effects present (dry). When the control is fully CW‚ the effects loop is fully wet. This same mix is set to the post EQ XLR as well as the main preamp out.
PROBASS 500™ SPECIFICATIONS SYSTEM SPECIFICATIONS Mains Circuit Breaker: 5 amps Noise: Typically greater than 102 dB below full power @ 8 Ohms unweighted Mains Voltage: 120 VAC 60 Hz Power Consumption: DDT Dynamic Range: Typically greater than +15 dB 600 Watts Frequency Response: Hum and Noise: Typically greater than -80 dB unweighted.
SUGGESTED SETTINGS Below are some suggested settings that should give you a starting point in developing your own sound with the ProBass500. Experiment. Play. The ProBass500 is a versatile amp and with some experimentation‚ you’ll find usable settings for every situation. Note: 1 Select pad OUT for passive instruments and pad IN for active instruments. 2 Use the pre gain as a volume control. Remember to reduce the post gain if the clip indicator lights.
Hi-boost OUT Pad OUT for passive and IN for active Low-cut OUT old.timer Great settings for those classic grooves! Hi-boost OUT Pad OUT for passive and IN for active Low-cut IN smash.your.teeth Working with the dirt—add some grunge! Hi-boost OUT Pad OUT for passive and IN for active Low-cut OUT p.
buffer buffer -10 dB pad 1 2 ground lift line drivers 3 post EQ 2(+) 1(-) 1(+) 2(-) status LED Green = Pwr On Red = DDT/Clip Post Gain Pre/Post EQ Select buffer preamp out line level 1 VRMS 0 dB line out level pre EQ buffer Gain 12AX7 high boost Preamp speaker jacks power amp buffer/DDT power amp in Speakon 200 Watts RMS with 8 ohm load 350 Watts RMS with 4 ohm load 12AX7 low cut Balanced Line Out switch logic Minimum Load is 2 ohms Mute LED Mute Switch -10 dB Pad In/Ou
ESPAÑOL PROBASS 500™ Felicidades en tu compra del PROBASS500 de Peavey. Encontrarás un festival de tonos y características en este amplificador de bajo de 2 unidades de rack. El PROBASS500 ofrece un preamplificador en la parte frontal para ese sonido suave de bulbos combinado con un amplificador solid-state para volarte los sesos. El PROBASS500 es un amplificador de bajo profesional con características flexibles que no se encuentran ni siquiera en los amplificadores más caros.
Front Panel 1 5 7 9 10 14 2 15 3 16 4 6 8 12 25 14–22 full parametric EQ 17 18 19 21 22 14–22 full parametric EQ 11 20 23 24 26 13 1. interruptor de mute Cuando este interruptor es oprimido la entrada es muteada para afinación silenciosa o práctica sin sonido. 2. LED de estatus del mute Cuando el interruptor de mute es activado el LED de estatus de mute se enciende de forma intermitente. 3. entrada Esta entrada mono de 1/4" aceptará señales de todos tipos de pastillas de bajo.
12. LED de estatus de señal (verde) Se ilumina cuando hay señal presente. 13. Indicador de saturación de señal (rojo) Este LED indica (cuando encendido) que el preamp y circuitos están saturando (distorsionando). Reducir la post ganancia hasta que el LED se apague solucionará el problema. 14-22 EQ paramétrico de 3 bandas Cada banda de la sección de ecualización paramétrica tiene un control para recorte/incremento, ancho de banda (Q) y frecuencia. Esto es un ecualizador paramétrico completo.
Rear Panel 30 31 32 33 34 35 36 37 38 39 40 41 42 27 28 29 PRO BASS 500 27. interruptor de cambio de polaridad de tierra Este es un interruptor de tres posiciones. Durante operación normal debe estar en la posición central (cero). Si se escucha hum o ruido con este interruptor en la posición central, cámbiese a la posición negativa o positiva (+ o -) para minimizar el ruido. Si el problema continua, consulta a tu distribuidor Peavey, la fabrica Peavey o un técnico calificado.
34. retorno de efectos Entrada para regresar señales de una unidad de efectos de bajo nivel o procesador de señal. 35 envío de efectos Salida para enviar señales a una unidad de efectos de bajo nivel o procesador de señal. 36. mezcla de efectos Ya que el circuito de efectos en el ProBass 500 es un circuito encadenado, la mezcla entre la señal seca (sin efecto) y mojada (efecto) puede ser ajustada con este control.
PROBASS 500™ SPECIFICATIONS SYSTEM SPECIFICATIONS Mains Circuit Breaker: 5 amps Noise: Typically greater than 102 dB below full power @ 8 Ohms unweighted Mains Voltage: 120 VAC 60 Hz Power Consumption: DDT Dynamic Range: Typically greater than +15 dB 600 Watts Frequency Response: Hum and Noise: Typically greater than -80 dB unweighted.
FRANÇAIS PROBASS 500™ Félicitations pour avoir choisi le PROBASS500 de Peavey, la nouvelle référence pour l’amplification de guitare basse. Dans un chassis compact 2-unités rack, le PROBASS500 offre des possibilités qui en font l’outil de travail idéal aussi bien pour le débutant que le joueur confirmé.
Front Panel 1 5 7 9 10 14 2 15 3 16 4 6 8 12 25 14–22 full parametric EQ 17 18 19 21 22 14–22 full parametric EQ 11 20 23 24 26 13 1.Interrupetur de mode silencieux (mute) Quand cet interrupteur est en position ‘sortie’, l’entrée est ‘silencieuse’, très utile pour s’accorder ou juste pour une pause! 2 Led de mode silencieux (mute) Cette Led clignote lorsque le sélecteur 1 est en position ‘sortie’.
12 Led de signal (Verte) S’illumine pour indiquer la présence d’un signal. 13 Led de niveau de seuil maximum (clip – Rouge) S’illumine pour indiquer la présence d’un signal dont le niveau, trop élevé, ne permet pas à votre unité de fonctionner correctement. Réduire le Post Gain vous permettra de résoudre cette situation.
Rear Panel 30 31 32 33 34 35 36 37 38 39 40 41 42 27 28 29 PRO BASS 500 29. Interrupteur de polarité Ce sélecteur vous permet de varier la polarité par rapport à votre source d’alimentation. Ce sélecteur n’est pas actif sur les unités 220/240V. 28 Interrupteur de réinitialisation du coupe circuit Utilisez cet interrupteur pour réinitialiser votre unité après que le coupe circuit se soit enclenché.
36 effects mix Vu que la boucle d’effet est de type latéral, ce contrôle rotatif vous permet de sélectionner la part des signaux d’effets/directs dans votre signal de sortie. En position contre-horaire (Dry), seul le signal direct sera présent dans votre signal de sortie. En position horaire (Wet), seul le signal traité par le processeur externe sera présent dans votre signal de sortie. Les positions intermédiares représentent le mixage de ces deux signaux.
PROBASS 500™ SPECIFICATIONS SYSTEM SPECIFICATIONS Mains Circuit Breaker: 5 amps Noise: Typically greater than 102 dB below full power @ 8 Ohms unweighted Mains Voltage: 120 VAC 60 Hz Power Consumption: DDT Dynamic Range: Typically greater than +15 dB 600 Watts Frequency Response: Hum and Noise: Typically greater than -80 dB unweighted.
DEUTSCH PROBASS 500™ Herzlichen Glückwunsch zum Kauf Ihres PROBASS500 von Peavey. Dieser nur zwei Rack-Höhen messende Bassverstärker bietet Ihnen unzählige Funktionen und Sounds. Der PROBASS500 ist mit einer Röhreneingangsstufe (Vorverstärkerstufe), die den gewünschten runden Röhrensound liefert, sowie mit einem Solid-State-Verstärker ausgestattet, der eine umwerfende Power bringt.
Front Panel 1 5 7 9 10 14 2 15 3 16 4 6 8 12 25 14–22 full parametric EQ 17 18 19 21 22 14–22 full parametric EQ 11 20 23 24 26 13 1. Mute-Schalter Durch Drücken dieses Schalters wird der Eingang stummgeschaltet, so dass ein geräuschloses Stimmen möglich ist – oder auch mal eine Pause gemacht werden kann! 2 Mute-Status-LED Ist der Mute-Schalter aktiviert, leuchtet die rote Mute-Status-LED auf.
11 Contour-Regler Wird dieser Regler im Uhrzeigersinn gedreht, ist ein EQ mit speziellem Voicing möglich. Wird der Regler vollständig im umgekehrten Uhrzeigersinn gedreht (auf 0), wird kein Voicing hinzugefügt. (Dieser Regler ähnelt den alten passiven Röhren-EQs mit angehobenen Tiefen und Höhen und abgesenkten Mitten.) 12 Signalstatus-LED (grün) Diese LED leuchtet auf, wenn ein Signal vorhanden ist.
25 Power LED/DDT-Anzeige Steht dieser Schalter auf der Position “ON”, leuchtet die LED grün auf. Während des Normalbetriebs fungiert diese LED zudem als DDT/Clip-Anzeige. Die LED leuchtet rot auf, wenn der DDT-Lautsprecherschutz greift oder wenn Clipping am Verstärker vorliegt (bei deaktivierter DDT-Funktion). 26 Power-Schalter Hiermit wird der Netzstrom (Wechselstrom) ein- und ausgeschaltet. Rear Panel 30 31 32 33 34 35 36 37 38 39 40 41 27 28 29 PRO BASS 500 27.
31 Power Amp Input Hiermit werden Line-Pegelsignale an den Verstärker angeschlossen (z.B. ein externer Vorverstärker). Wird diese Klinke verwendet, so wird der interne Vorverstärker abgetrennt. 32 Preamp out Der Vorverstärkerausgang kann eingesetzt werden, um das verstärkte Signal an ein Mischpult, ein Tonbandgerät oder ein anderes Gerät weiterzuleiten. Schließen Sie den Vorverstärkerausgang mit einem geschirmten Kabel an einen Eingang eines dieser Geräte an.
PROBASS 500™ SPECIFICATIONS SYSTEM SPECIFICATIONS Mains Circuit Breaker: 5 amps Noise: Typically greater than 102 dB below full power @ 8 Ohms unweighted Mains Voltage: 120 VAC 60 Hz Power Consumption: DDT Dynamic Range: Typically greater than +15 dB 600 Watts Frequency Response: Hum and Noise: Typically greater than -80 dB unweighted.
PEAVEY ELECTRONICS CORPORATION LIMITED WARRANTY Effective Date: July 1, 1998 What This Warranty Covers Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.
