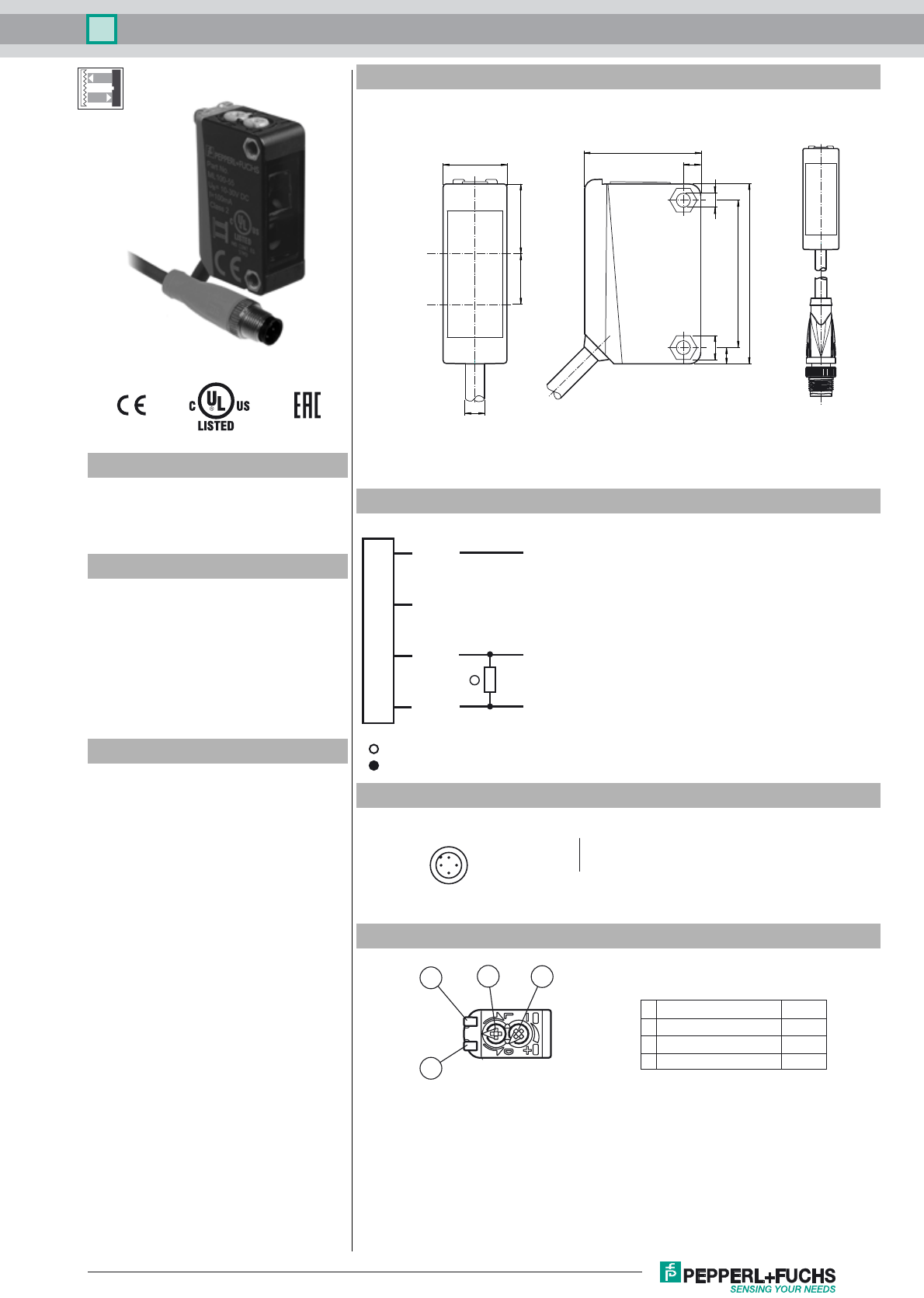

Retroreflective sensor with polarization filter ML100-55/103/115b
Release date: 2017-03-31 11:28 Date of issue: 2017-03-31 221827_eng.xml
Dimensions
Electrical connection
Pinout
Indicators/operating means
Emitter
Receiver
12.18.7
11
3
20
M3
4.1
2.8
25.4
31
ø 3.5
Option:
2
1
3
4
+UB
Q
0 V
n.c.
103
= Light on
= Dark on
1
3
4
2
1 BN
2 WH
3 BU
4 BK
Wire colors in accordance with EN 60947-5-2
(brown)
(white)
(blue)
(black)
1 Light-Dark-switching
2 Sensitivity adjuster
3 Signal display yellow
4 Operating display green
1
2
4
3
Model Number
ML100-55/103/115b
Retroreflective sensor
with fixed cable and M12 connector, 4-pin
Features
• Miniature design
•Easy to use
• Full metal thread mounting
• Clearly visible LEDs for Power ON,
switching state and weak signal indi-
cation
• Not sensitive to ambient light
Product information
The ML100 series is characterized by its mini-
ature housing with integral, all-metal threaded
bushings. All versions are equipped with a
visible red transmitter LED. This greatly simp-
lifies installation and commissioning. The
switching states are easily visible from all
directions thanks to the highly visible LEDs.
