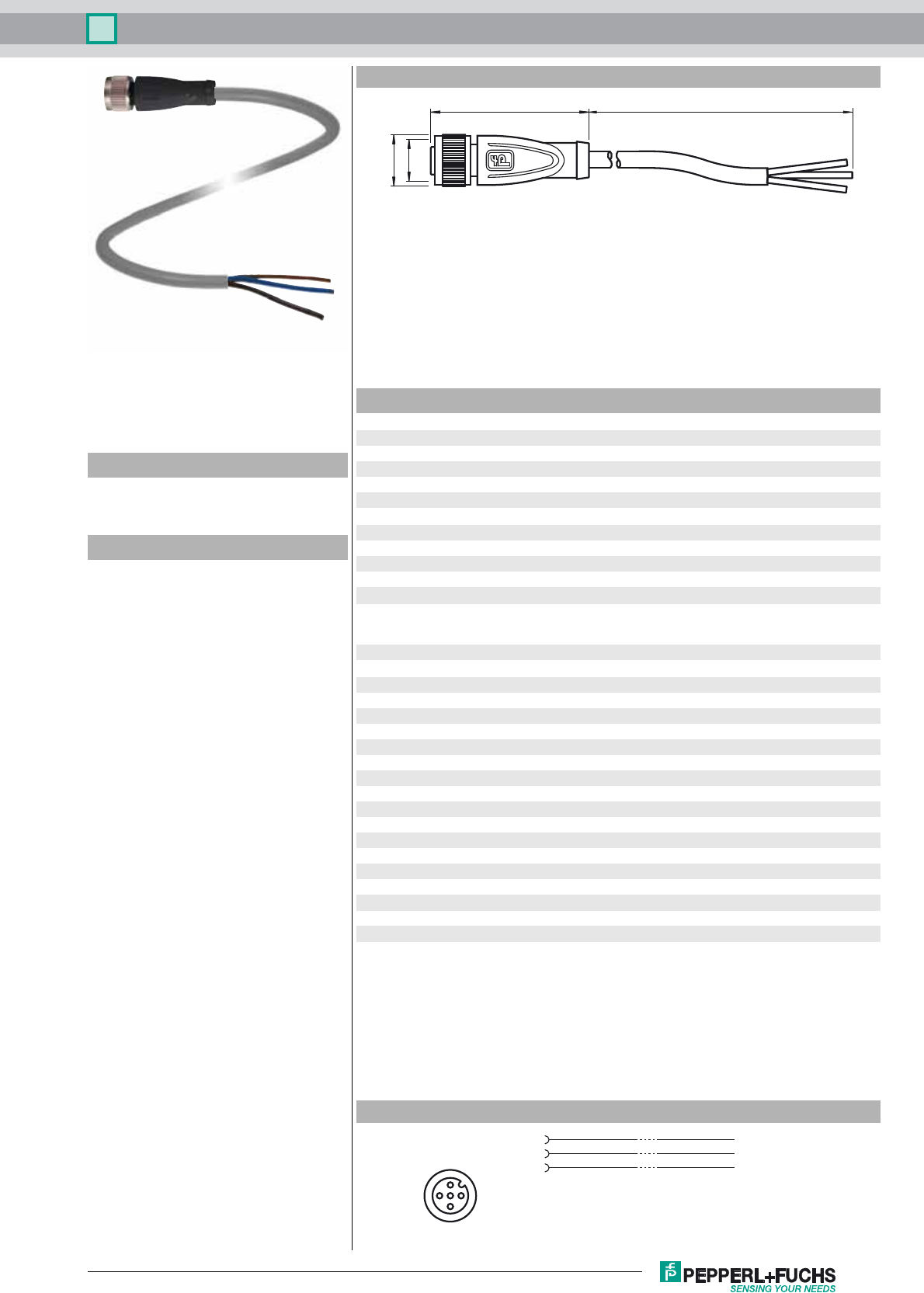

Datasheet

1
Release date: 2014-07-04 13:40 Date of issue: 2014-07-04 116446_eng.xml
Female connector V11-G-2M-PVC
Dimensions
Electrical connection
Germany: [phone]Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: [phone] Singapore: [phone]
www.pepperl-fuchs.com [e-mail] [e-mail]
[e-mail]
L
14.8
M12 x 1
45
Model Number
V11-G-2M-PVC
Female cordset, M12, 3-pin, PVC cable
Features
• Knurled nut suitable for tool assembly
• Immunity to vibration, with mechani-
cal latching
•Gold plated contacts
• Degree of protection IP67 / IP68 /
IP69K
• Suitable for 2- and 3-wire technology
Technical data
General specifications
Number of pins 3
Connection 1 socket
Construction type 1 straight
Threading 1 M12
Connection 2 cable end
Electrical specifications
Operating voltage U
B
max. 250 V AC/DC
Test voltage > 1500 V
eff
AC
Operating current max. 4 A
Volume resistance < 5 mΩ
Ambient conditions
Ambient temperature -25 ... 100 °C (-13 ... 212 °F)
For temperatures over 80 °C (176 °F) reduced elongation at rup-
ture
Pollution Degree 3
Mechanical specifications
Contact elements spring-loaded contact socket
Pin diameter 1 mm
Degree of protection IP67 / IP68 / IP69k
Material
Contacts CuSn / Au
Contact surface Au
Body TPU, black
Cable PVC
Slotted nut Diecast zinc
Core insolation PVC
Cable fine-strand, flexible
Sheath diameter Ø 4.8 mm
Bending radius > 10 x cable diameter, moving
Color grey
Cores 3 x 0.34 mm
2
Conductor construction 19 x 0.15 mm Ø
Length L 2 m
1
3
4
1
3
4
BN
BU
BK
