MUD6 USB CONDENSER MICROPHONE USER MANUAL
MUD6 USB CONDENSER MICROPHONE DESCRIPTION The MUD6 is a high quality condenser microphone with an advanced A/D and USB interface which gives you digital recording capabilities instantly with no external digital interface or software driver required. It is USB compatible with Mac, Windows, and most DAW software programs, including GarageBand. The MUD6 offers premium quality audio recording with ease and mobility, and with its pivoting stand mount and 9.8 ft.
MUD6 FREQUENCY RESPONSE (SUPERCARDIOID) *Note:Specifications are subject to change. SPECIFICATIONS Type Back Electret Condenser Polar Pattern Supercardioid Frequency Response 30-18,000 Hz Sensitivity (at 1k Hz Open Circuit Voltage) -38 dBV/Pa (12.6 mV) Max. SPL >135 dB SPL Power Requirements USB 5V, 30 mA Resolution Up to 16 bit/48k Hz sampling rate Finish Champagne silver Connectors USB B-TYPE, 1/8”(3.5mm) phone connector Dimensions Ø54 × 150 mm (Ø2.13” × 5.9”) Net Weight 422 g (14.
SYSTEM REQUIREMENTS USB USB 1.1 or 2.0, powered RAM 64MB RAM (minimum) OPERATING SYSTEM Microsoft Windows 7 Microsoft Windows 10 Microsoft Windows 2000 Professional Edition Microsoft Windows XP Home / Professional Edition (service pack 1.0 or later, or use the USB audio driver update from Microsoft) Microsoft Windows Vista™ Business Edition Apple Computer Mac OS X 10.0 or later Edition Apple Computer Mac OS X 10.

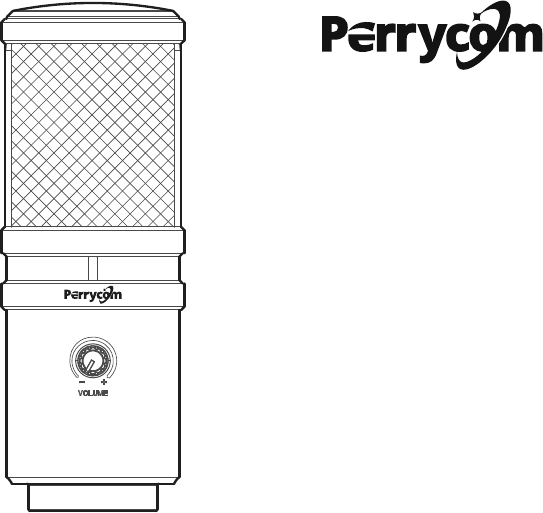

A B D E205U C VOLUME Unit:mm/inch FUNCTION DESCRIPTION A USB Power Indicator When it is lit up, it means the USB connection is done and MUD6 get the power from USB interface. B Headphone Volume Control Pop-out level control to adjust the overall volume of the Headphone output. C Headphone Output Jack 1/8-inch (3.5mm) stereo jack for connecting headphones or studio monitors. D USB connector MUD6 involves a USB B-type connector, it is allowed to connect to laptop with USB A-type jack.
INSTALLATION ON A TABLE Through optional table stand HM6, You may put the MUD6 on a table and do recording. ON A STAND By using a microphone stand, the MUD6 can be mounted on it for recording. CONNECTIONS USB CONNECTOR A separated 3-meter cable with USB A-type connector allowed to be connected to a computer with USB port. *Notice: The included USB cable is for laptop with A-type connector. For computer with another connector type (ex. C-type), please use connector adaptor.
QUICK START 1 You can position the MUD6 on an optional stand by using included accessories. 2 Be sure to position the side of grille net to the sound source and keep the Perrycom logo and LED indicator face the direction of sound source. 3 Plug the B type connector of the included USB cable into the USB socket on the bottom of the MUD6. 4 Set up a mono record track in your DAW. 7 Now, setup the level of the MUD6 and there are few ways to do this depending on your computer system.
USB AUDIO EQUIPMENT DRIVER If you encounter a problem, please check whether driver has been setup successfully.
2 Sound >> Hit “Manage audio devices” 9
3 Hit “Recording” tab >> Click “MUD6” >> Click “Set Default” to select MUD6 as the default microphone. *Notice: If there is already the green tick next to the MUD6 microphone symbol and the “Set Default” button is not able to be hit (dark gray color), the MUD6 has been selected as the default device successfully.
4 Hit “Properties” >> hit “Level” tab to adjust the microphone input gain.
5 If you would like to use the equipped headphone output jack of MUD6 as the monitoring: Hit “Playback” tab >> Click “MUD6” >> Click “Set Default” to select MUD6 as the default microphone. *Notice: If there is already the green tick next to the MUD6 speaker symbol and the “Set Default” button is not able to be hit (dark gray color), the MUD6 has been selected as the default device successfully.
6 Hit “Properties” >> hit “Level” tab to adjust the headphone output volume. After that, please use the headphone volume knob on the MUD6 to do real-time adjustment.
MAC OS OPERATING SYSTEM 1 14 Open the Sound Preference window from System Preferences. Select MUD6 from both the Input and Output tabs.
2 Garage Band users: open Garage Band before plugging in the microphone to automatically select the USB device.
USING THE DIRECT MONITOR MUD6 1 16 To turn direct monitoring on or off, open the Audio/MIDI Setup utility located in the Utility folder inside the Applications folder.
MUD6 2 Now click the checkbox in the Thru column in Audio/MIDI Setup.
TROUBLESHOOTING Problem Solution No sound in headphones Check the headphone volume control and microphone gain at computer control panel. Microphone sound is too week or distorted Windows: Audio tab, click Volume under Record and turn up Microphone Gain Control. Mac: From System Preferences, Choose Sound, Select Input tab and turn up Input gain. Headphones are not loud enough Windows: Audio tab, click Volume under Sound playback and turn up Volume Control.
LIMITED WARRANTY For compliance with the instructions which record in the user manual, Perrycom Enterprise provide one year period warranty for all material and producing quality from purchase date. This warranty term will adjust according to different country or area. Please contact local distributor to receive more information. In the validity period, if there’s any material, producing quality, or any function unavailable, Perrycom will repair or replace the parts.
