Installation Guide

ENGLISH

DRAIN BODY INSTALLATION

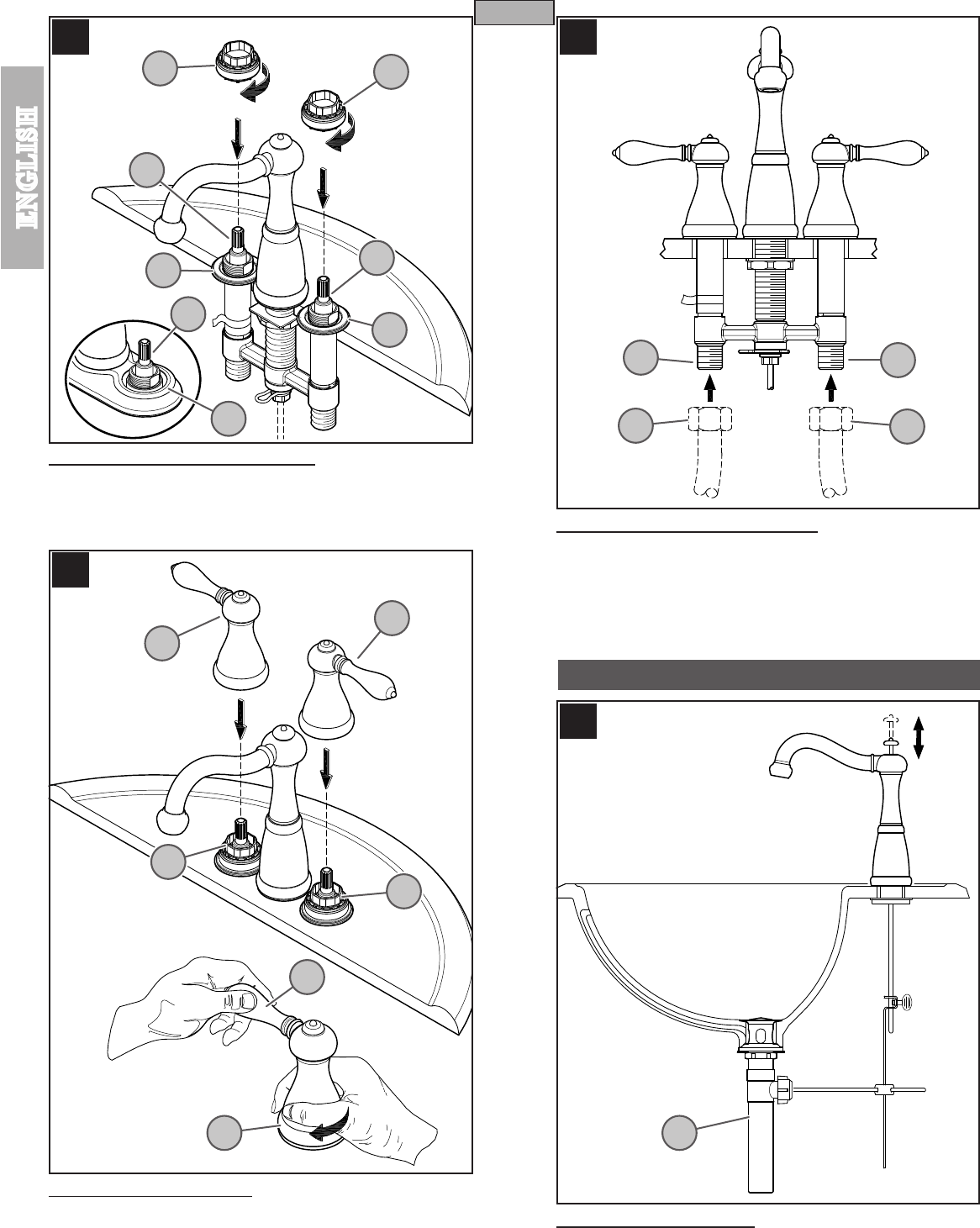

9 HANDLE ADAPTER ATTACHMENT

Thread the Handle Adapters (9A) over the Valve Stems (9B) and tighten so that the Handle

Adapters (9A) sit on top of the Putty Plate (9C) or Putty Rings (9D).

10 HANDLE INSTALLATION

Connect Handles (10A) onto Handle Adapters (10B). Be sure Valves and Levers are in

the “OFF” position. Secure handles by holding the Lever (10C) in place and tighten the

Hubs (10D) by rotating them in a clockwise direction. To remove handles, rotate Hubs

(10D) in a counterclockwise direction.

11 WATER SUPPLY CONNECTIONS

Connect water Supply Lines (11A) to Faucet Inlets (11B). Hot water supply lines go into

left inlet. Cold water supply lines go into right inlet. (Supply lines not included). Please

follow manufacturer’s instructions when installing supply lines.

12 POP-UP INSTALLATION

Install and adjust Pop-Up (12A) using separate instructions supplied with the Pop-Up

assembly.

HOT

COLD

10A

10B

10C

10D

10B

11B

11A

11B

12A
