Chapter 11: Wizards, Tutors, and Fun
215
Drums that you play show up in blue (the computer played drums are red). There is an option to display all the
QWERTY names on the drums at the same time, so that you can see what keys to hit without having to mouse over
the instrument. The drums can be moved off-screen without snapping back to the middle.
To display the QWERTY keys on the notes, select the option in the Drums Window Settings dialog to “Display
QWERTY Chars on Drums.”
Multi-note instruments send different notes depending on where you click on the instrument. For instance, the Kick
Drum can send three different notes, Ac. Bass Drum (MIDI note 35), Bass Drum 1 (MIDI note 36), and Square Kick
(MIDI Note 32).
The hint line at the top of the window describes the current control under the mouse cursor. Use the hint line to
learn the mouse-responsive areas of each drum instrument.
Multi-Note Drums Instruments
Kick Drum - Ac. Bass Drum, Bass Drum 1, Square Kick
Snare - Acoustic Snare, Side Stick
Hi Hat - Closed, Pedal, Open
Floor Tom - Low, High
Electronic Pad - Multi-zoned for Hi-Q, Slap, Electric Snare
High Conga - Mute, Open
Surdo - Mute, Open
Cuica - Mute, Open
Metronome - Bell, Click
Whistle - Long, Short
Triangle - Mute, Open
Guiro - Long, Short
Scratch - Push, Pull

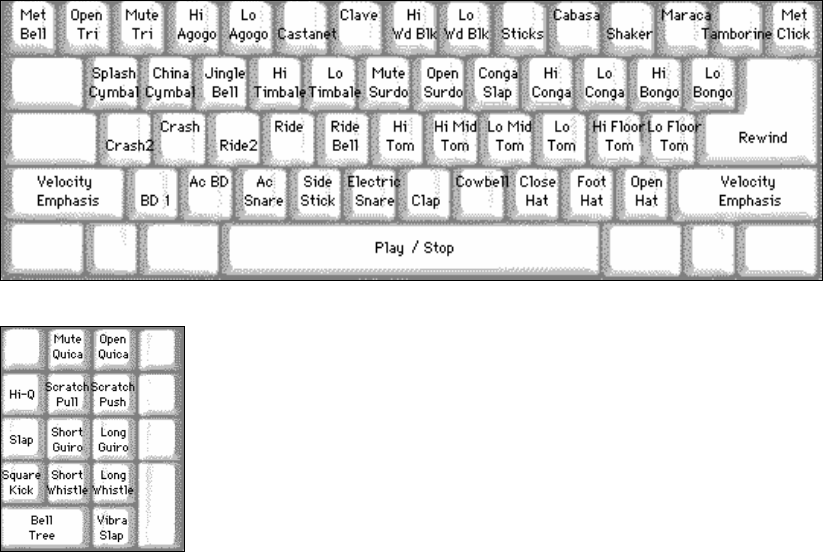

Computer “QWERTY” Drum Keys
Numeric Keypad Drum Keys
Strike computer keys to play drums.
