Chapter 14: Reference
279

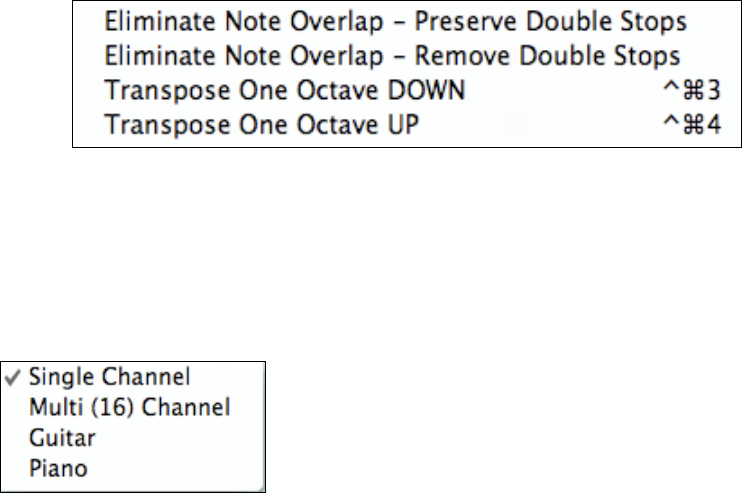

Eliminate Note Overlap – Preserve Double Stops / Eliminate Note Overlap – Remove Double Stops
opens a Choose Range dialog to select the range of bars where note overlap will be eliminated while
double stops are either preserved or eliminated.
Transpose One Octave DOWN / Transpose One Octave UP transposes the Soloist part one octave in
either direction. This is often useful if the Soloist instrument has been changed. Transposing can be done
while the song plays.
Track Type
Normally you'd leave the track type set to Single, but you can set it to:
- Multi (16) Channel – All channels are preserved and output on the
channels. This would be useful for importing an entire MIDI file, and
playing it from the Melody channel (using a silent style).
- Guitar – Channels 11 to 16 will display on the guitar as strings 11 to 16, TAB will show, the notation will be up
an octave, and the MIDI file will contain the channels preserved.
- Piano – In this mode, channels 8 and 9 are treated as the left and right hand of a piano part.
