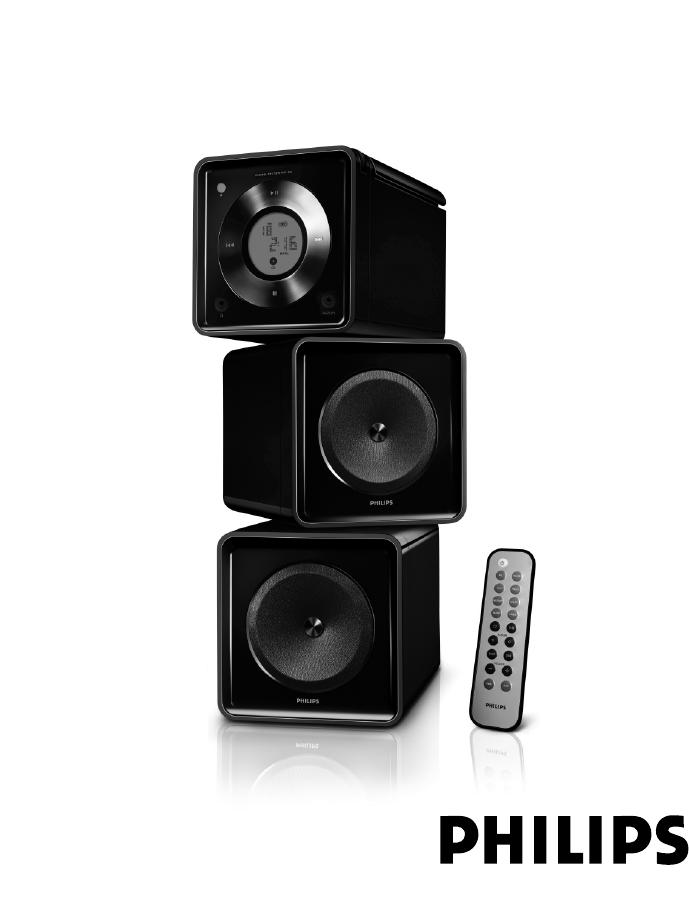

Micro Hi-Fi System MC108B User manual MC108B_79_Eng 1 14/2/07, 11:33
Hearing Safety Listen at a moderate volume. ● Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. ● Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound.
4 1 5 2 OP E N / C LO S E 6 7 3 POWER BAND SOURCE PROG/CLOCK - VOLUME + TUNING MICRO SYSTEM MC108 8 iR 0 PROG TRK ! DBB MW FM AM PM MUTE SHUF TUNER CD REP ALL AUX @ # 9 AUX-IN 3 MC108B_79_Eng 3 14/2/07, 11:33
Contents English General Information Clock/Timer Environmental information ................................ 5 Supplied accessories ............................................ 5 Safety information ................................................ 5 Setting the clock ................................................. 13 Setting the timer ................................................. 13 Activating and deactivating TIMER ................. 13 Activating and deactivating SLEEP ..................
Safety Information Supplied accessories – 2 speaker boxes – remote control with battery – MW loop antenna Environmental Information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company.
Preparations English FM antenna AM MWloop loopantenna antenna FM wire antenna LeftSpeaker speaker Speaker Right speaker (left) (right) power cord AC AC power cord B Antennas Connection Rear connections The type plate is located at the rear of the system. 1 A Power MW antenna Unfold the loop antenna and if necessary, use screws (not supplied)to fix it to a flat, hard and stable place: 1 – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made.
English Preparations Before using the remote control C Speakers Connection Front Speakers Connect the speaker wires to the SPEAKERS terminals, right speaker to "RIGHT" and left speaker to "LEFT", coloured (marked) wire to "+" and black (unmarked) wire to "-". ● Fully insert the stripped portion of the speaker wire into the terminal as shown. Notes: – For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals.
Controls (illustrations on page 3) English Controls on the system and remote control 1 BAND – * DBB – (Dynamic Bass Boost) enhances the bass. ( MUTE – switches playback sound off and on. for Tuner (on the set only) selects waveband. 2 SOURCE (CD/ TUNER/ AUX) – – switches on the system. selects the respective sound source for CD/ FM/ MW/ AUX. 3 3 POWER / y – switches the system to standby/on. 4 PROG/CLOCK for CD ................. programs tracks and reviews the program. for clock ..............
English Basic Functions Adjusting volume and sound OP POWER SOURCE BAND PROG/CLOCK - VOLUME 1 Press VOLUME – / + to increase or decrease volume. ➜ Display shows the volume level and a number from 0-32. 2 Press DBB (on the remote control) to switch bass enhancement on or off. ➜ Display shows: DBB if the DBB is activated. E N / C LO S E + VOLUME DBB MUTE TUNING 3 IMPORTANT: Before you operate the system, complete the preparation procedures.
CD Operation English 5 To pause playback press 2;. Press 2; again to resume play. ➜ The display freezes and the current track number flashes when playback is paused. 6 To stop disc playback, press 9. M I C R O S Y S T E M M C1 0 8 iR PROG TRK Note: CD play will also stop when; – the CD door is opened. – the disc has reached the end. – you select another source: AUX, TUNER. – you select standby.
Programming track numbers Different play modes: SHUFFLE and REPEAT Programme in the STOP position to select and store your disc tracks in the desired sequence. If you like, store any track more than once. Up to 20 tracks can be stored in the memory. You can select and change the various play modes before or during playback. REPEAT ............ plays the current track continuously REPEAT ALL ... repeats the entire disc/ programme SHUFFLE .........
Radio Reception English 3 Turn TUNING 0 to tune to a station. ➜ Display shows: the frequency of the tuned station. Helpful hints: To improve radio reception: – For FM, extend coil antenna at the back of the unit fully for optimum reception. OP POWER SOURCE BAND PROG/CLOCK - VOLUME E N / C LO S E + TUNING Tuning to radio stations 1 Select TUNER source. ➜ 2 TUNER is displayed. Press BAND (TUNER on the remote control) once or more to select your waveband.
Setting the timer ● The system can be used as an alarm clock. CD or TUNER can be set to switch on at a preset time. The clock time needs to be set first before the timer can be used. ● If no button is pressed within 90 seconds during timer setup, the system will exit timer setting mode automatically. MICRO SYSTEM MC108 iR 1 In any mode, press TIMER (on the remote control) for more than 2 seconds. 2 Press ¡1 / 2™ (or CD / TUNER on the remote control) to select sound source.
Clock/Timer English Activating and deactivating SLEEP The sleep timer enables the system to switch off by itself after a set period of time. The clock time needs to be set first before the sleep timer can be used. ● Press SLEEP on the remote control repeatly to select desired time before system shuts off.
WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre. Problem Solution CD OPERATION “no cd” is displayed. – Insert a disc. – Check if the disc is inserted upside down.
AUSTRALIA - Philips Manufacturers Warranty for Australia only These warranty conditions are valid for the following consumer electronics products: Colour Televisions, Projection TV, Plasma & LCD TV, Video Cassette Recorders, CD Recorders & Players, DVD Players, DVD Recorders, DVD Recorders with HDD, Audio Systems, Home Theatre systems, Digital Set Top Box & Portable Audio products.
New Zealand - Guarantee and Service for New Zealand Thank-you for purchasing this quality Philips product. Philips New Zealand Ltd guarantees this product against defective components and faulty workmanship for a period of 12 months. Any defect in materials or workmanship occurring within 12 months from the date of purchase subject to the following conditions will be rectified free of charge by the retailer from whom this product was purchased. 1.
