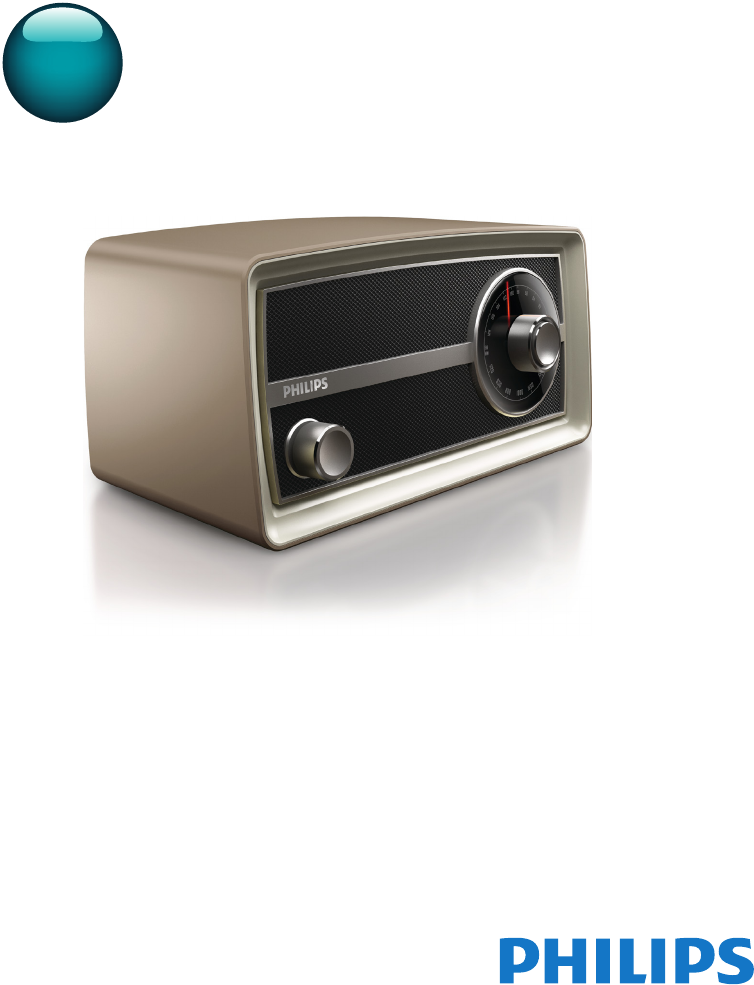

Always there to help you Register your product and get support at www.philips.
Contents 1 Safety 2 2 What's in the box 3 3 Connect power 4 4 Power on 5 5 Adjust volume 6 6 Listen to radio 7 7 Listen to an external device 8 8 Troubleshooting 9 9 Product information 10 10 10 10 10 10 Notice 11 11 11 11 General information Tuner Speakers Amplifier Compliance Care of the environment Copyright EN 1
1 Safety Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply. Risk of electric shock or fire! • Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact the Consumer Care to have the product checked before use.
2 What's in the box Check and identify the contents of the package: OR2000M User Manual EN 3
3 Connect power Connect the power plug to the AC power outlet.
4 Power on Turn the left knob clockwise until you hear a "click" sound. • To power off, turn the left knob anticlockwise until you hear a "click" sound.
5 Adjust volume • • 6 To increase the volume, turn the left knob clockwise. To decrease the volume, turn the left knob anti-clockwise.
6 Listen to radio Note •• For optimal reception, fully extend the antenna and adjust its position, or connect an outdoor antenna. 1 2 Press down FM/MW to switch the tuner band to MW. • To switch the tuner band to FM, press FM/MW again to release it. Turn the right knob anti-clockwise or clockwise to adjust the frequency. »» The red LED bar points at the current frequency.
7 Listen to an external device You can also listen to an external audio device, for example, MP3 player, through this product. 1 2 Connect an audio input cable with a 3.5 mm connector on both ends to • the AUDIO-IN socket on the back panel of this product, and • the headphone socket on the external device. Play audio on the external device (refer to its user manual). Note •• If you want to listen to radio, disconnect the audio input cable from the product.
8 Troubleshooting Warning •• Never remove the casing of this product. To keep the warranty valid, never try to repair the product yourself. If you encounter problems when using this product, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www. philips.com/support). When you contact the Consumer Care, make sure that the product is nearby and the model number and serial number are available.
9 Product information Note Speakers Speaker Impedance Speaker Driver Sensitivity 8 Ohm 3" full range > 82 dB/m/W •• Product information is subject to change without prior notice. Amplifier General information AC Power Rating Operation Power Consumption Dimensions (Main Unit) Weight (Main Unit) 220-240 V~, 50 Hz 9W 245 x 123 x 122 mm 1.33 kg Tuner Tuning Range Total Harmonic Distortion Signal to Noise Ratio 10 EN FM: 87.50 - 108.
10 Notice Any changes or modifications made to this device that are not expressly approved by WOOX Innovations may void the user’s authority to operate the equipment. Compliance This product complies with the radio interference requirements of the European Community. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.
2014 © WOOX Innovations Limited. All rights reserved. This product was brought to the market by WOOX Innovations Limited or one of its affiliates, further referred to in this document as WOOX Innovations, and is the manufacturer of the product. WOOX Innovations is the warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. OR2000M_12_UM_V2.
