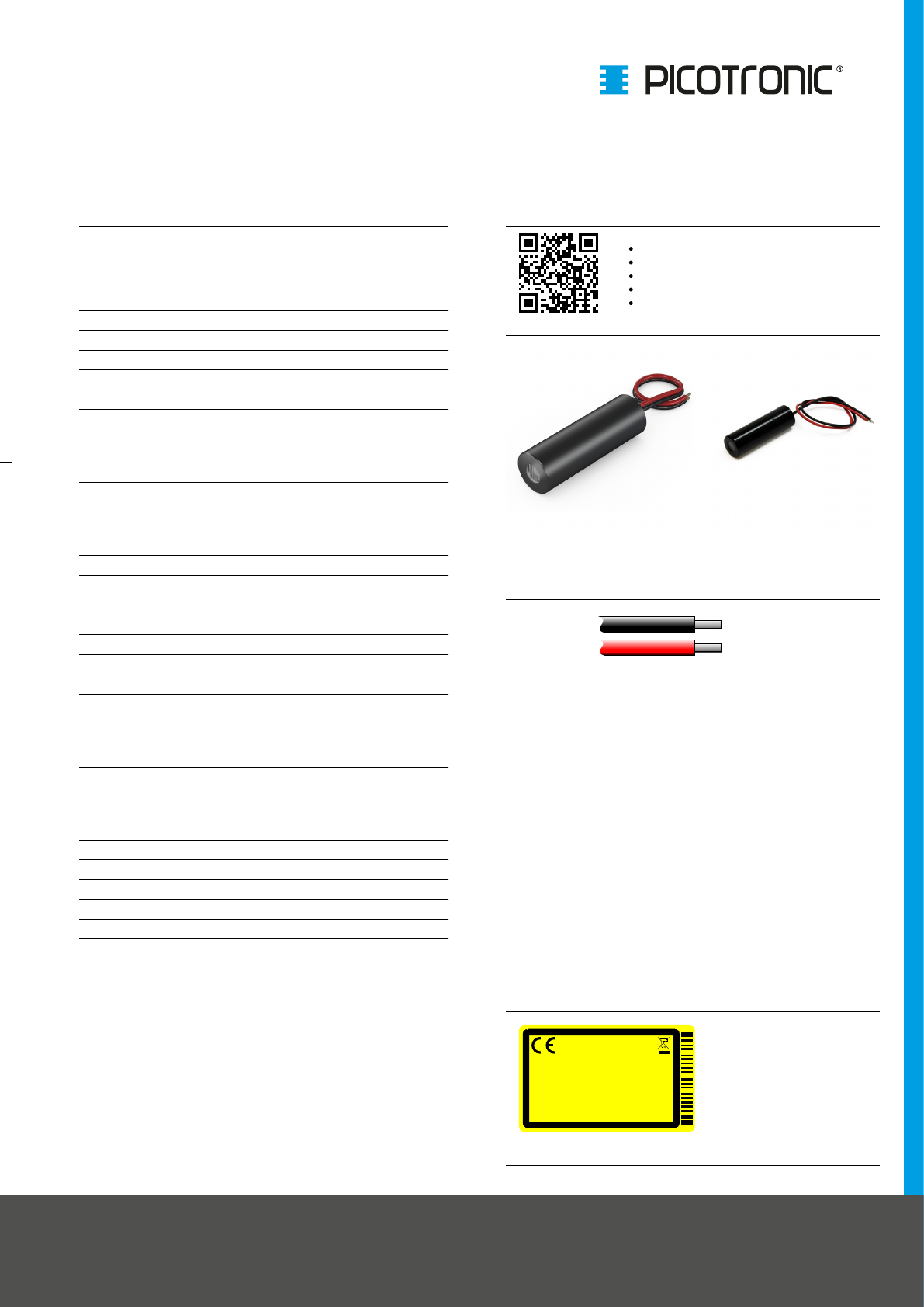

Line laser, red, 650nm, 90°, 24mW
LH650-24-5(12x37)
Order Number: 70101966
Cable Colors
Ground black GND
Positive red 4.5 - 5, typ 5V DC
Main Parameters (*) min typ max Unit
Wavelength 650 nm
Optical Output Power 24 mW
Operating Voltage 4.5 5 5 V DC
Operating Current 45 70 120 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 2M
Divergence H - 1.0mrad
Fan Angle 90°
Line Thickness <1.5mm@3m
Operating Distance 3m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed (3000mm)
Electrical Parameters
Potential of Housing VDD(+)
Power Supply LFNT-5
Mechanical Parameters
Size Ø12x37mm
Material aluminium
Cable length 100mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 7mm
Housing Color black
Weight 16.2g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Compact size
Low power consumption
Laser Class 2M
Fixed focus
Glass lenses AR coated
Features
Safety Label
Laser Radiation
Do not stare into the beam or view
directly with optical instruments
Class 2M Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 24mW
LH650-24-5(12x37)
P/N 70101966 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
Revision
REV 2 | 14-SEP-2017
