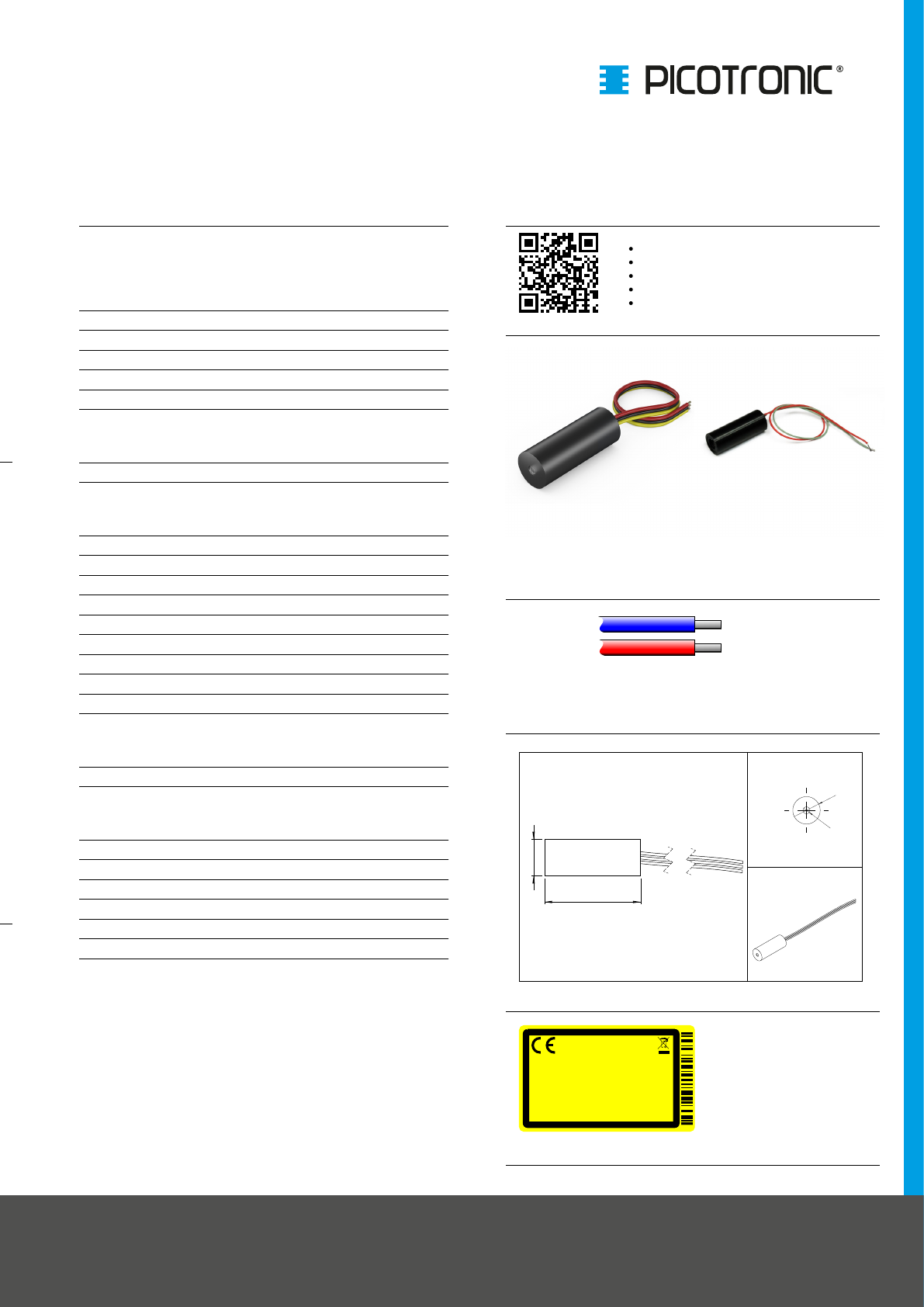

Dot laser, red, 650nm, 0.4mW
DI650-0.4-3(8x21)-AP
Order Number: 70121582
Drawing
Ø
8
21
Ø
8
Ø
2
Cable Colors
Ground blue GND
Positive red 2.7 - 3.3, typ 3V DC
Main Parameters (*) min typ max Unit
Wavelength 640 650 660 nm
Optical Output Power 0.3 0.4 0.4 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 10 18 30 mA
Operating Temperature -20 50 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 1
Divergence I - 1.5mrad
Beam Diameter 2mm
Size of Laserdot <3..5mm@5m
Operating Distance 10m
Optics glass lens AR coated
Laser technology Single Mode Diode
Axial Divergence ±0.15°
Focus collimated
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Mechanical Parameters
Size Ø8x21mm
Material aluminium
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 2.5mm
Housing Color silver
Weight 3g
(*) Over the complete operating temperature range
Axial parallel
Low power consumption
Compact size
Laser Class 1
Operating Voltage 3V DC
Features
Safety Label
Laser Radiation
Class 1 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 0.4mW
DI650-0.4-3(8x21)-AP
P/N 70121582 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
Revision
| 08-MAY-2017
