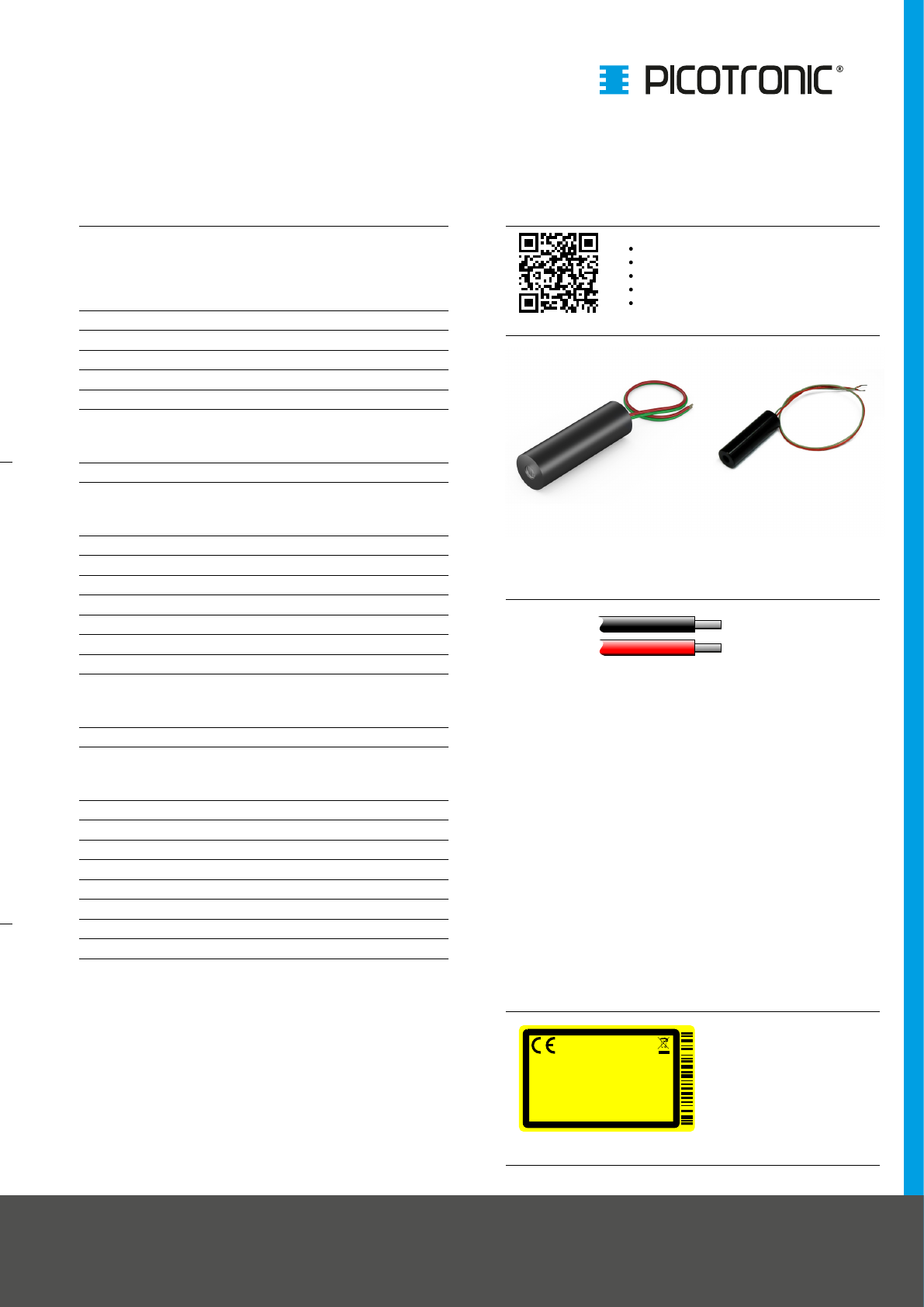

Dot laser, red, 650nm, 1mW
DC650-1-3(8x25)-HT
Order Number: 70122114
Cable Colors
Ground black GND
Positive red 2.7 - 3.3, typ 3V DC
Main Parameters (*) min typ max Unit
Wavelength 645 650 655 nm
Optical Output Power 0.8 1 1 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 10 20 40 mA
Operating Temperature -20 70 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >2000h
RoHS yes
Optical Parameters
Beam Shape Dot
Laser Class 2
Divergence C - 0.4mrad
Size of Laserdot <6mm@10m
Operating Distance 10m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus collimated
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Mechanical Parameters
Size Ø8x25mm
Material aluminium
Cable length 400mm
Wire type 26AWG, 0,14mm²
Output Aperture 3.5mm
Housing Color black
Weight 3.5g
Protection Class IP67
Stripping of wire 5mm
(*) Over the complete operating temperature range
Operating Voltage 3V DC
Laser Class 2
Low power consumption
Compact size
High Temperature
Features
Safety Label
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 650nm P₀ ≤ 1mW
DC650-1-3(8x25)-HT
P/N 70122114 Picotronic GmbH
