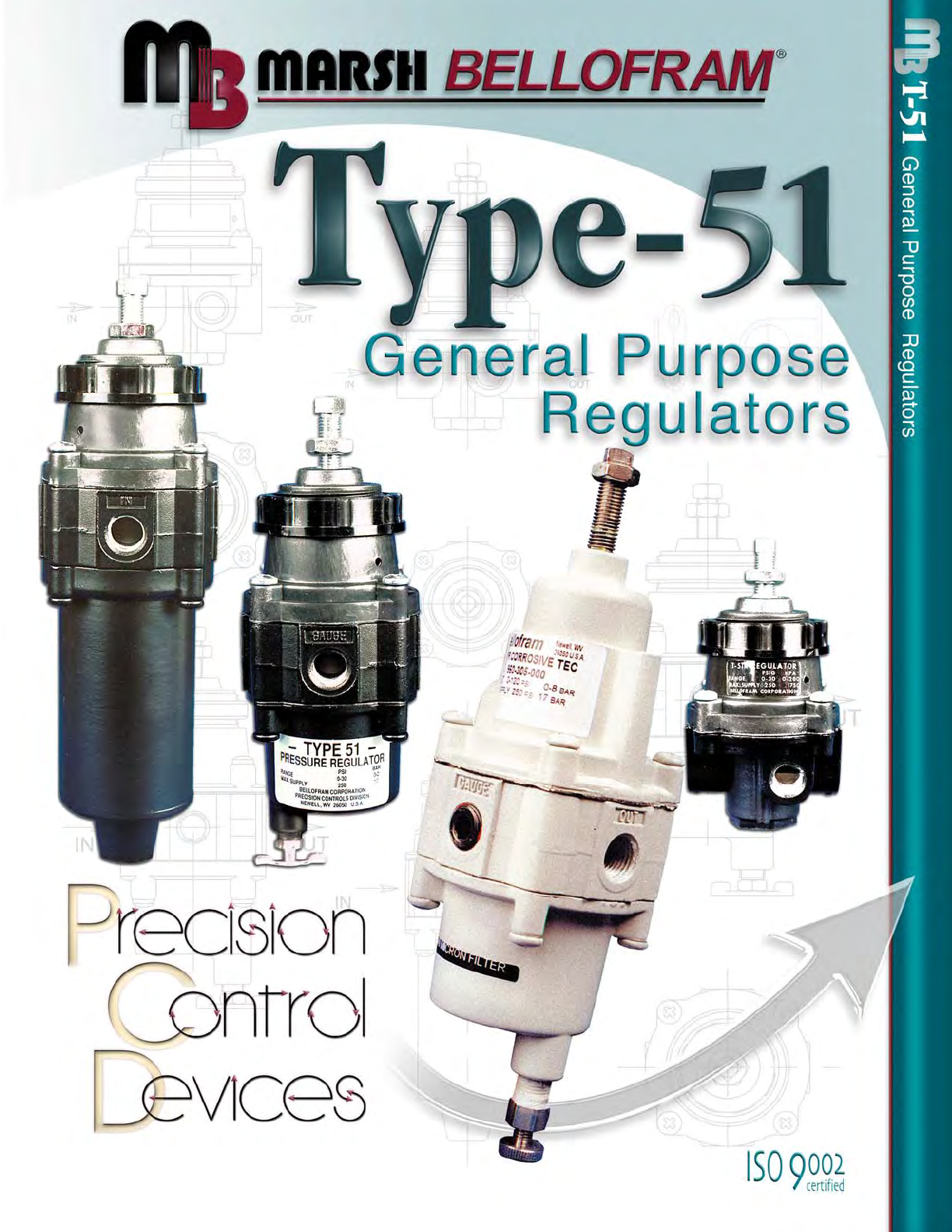

PAGE 1
PAGE 2
TYPE 51FR TYPE 51AFR TYPE 51FRCT Regulator Filter Regulator Auto Filter Regulator • Excellent regulation, stability and repeatability • Corrosion-resistant construction (no brass components, T-51FR & T-51AFR) • NACE Constructed (T-51FRCT Corrosive Tec) • Low droop • Low cost • Small package size • Panel, bracket or pipe mounting • Fluorocarbon pintle seat (T-51FR, T-51AFR & T-51FRCT) • Auto drain option (T-51AFR) Corrosive Tec 250 psig (17.3 BAR) 250 psig (17.3 BAR) 250 psig (17.
PAGE 3
TYPE 51FR TYPE 51AFR TYPE 51FRCT Regulator Filter Regulator Auto Filter Regulator • Excellent regulation, stability and repeatability • Corrosion-resistant construction (no brass components, T-51FR & T-51AFR) • NACE Constructed (T-51FRCT Corrosive Tec) • Low droop • Low cost • Small package size • Panel, bracket or pipe mounting • Fluorocarbon pintle seat (T-51FR, T-51AFR & T-51FRCT) • Auto drain option (T-51AFR) Corrosive Tec 250 psig (17.3 BAR) 250 psig (17.3 BAR) 250 psig (17.
PAGE 4
ORDERING INFORMATION PART NUMBER: TYPE-51 GENERAL PURPOSE REGULATORS Part TYPE Number 960-222-000 51R 960-223-000 960-224-000 960-175-000 51FR 960-176-000 960-177-000 960-284-000 51AFR 960-285-000 960-286-000 960-303-000 51 FRCT 960-304-000 960-305-000 OPTION ORDERING MATRIX: Add three digits from table below to end of part number. OPTION 1 2 3 4 5 6 7 Control Range psig BAR 0-30 0-2.1 0-60 0-4.1 0-100 0-6.9 0-30 0-2.1 0-60 0-4.1 0-100 0-6.9 0-30 0-2.1 0-60 0-4.1 0-100 0-6.9 0-30 0-2.1 0-60 0-4.
