Connecting up
Basic connections

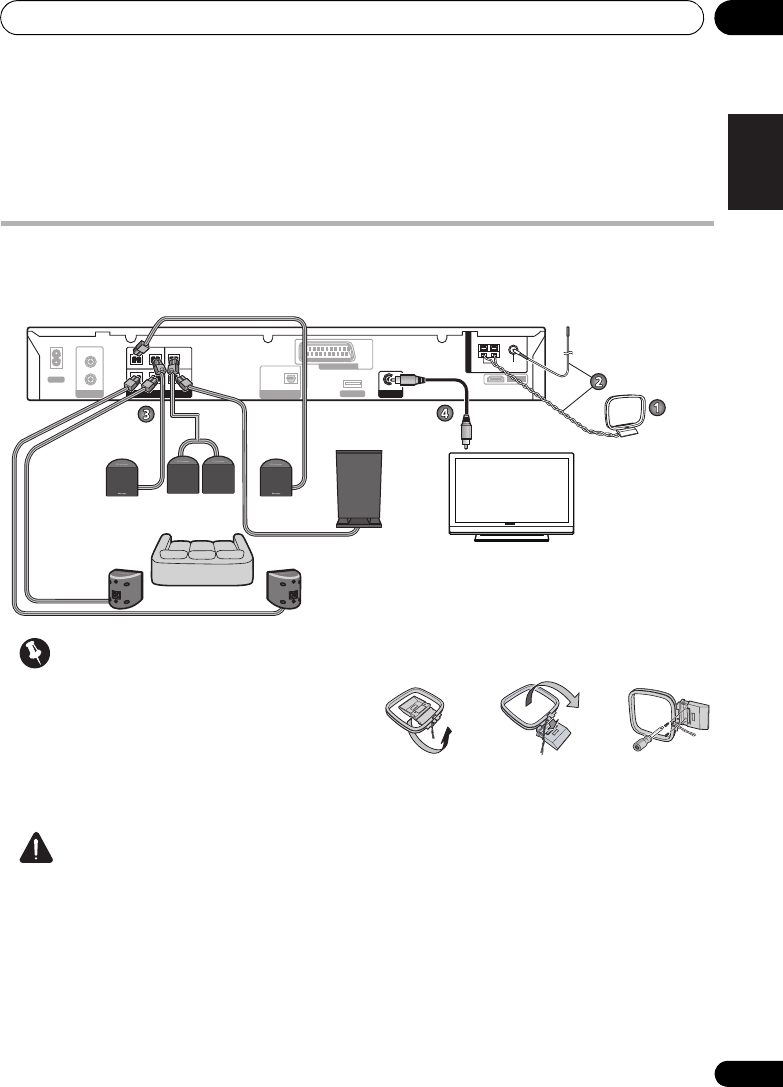

For the best surround sound, setup your speakers as below. The speakers in the illustration below
are the DCS-585.
Important
• When connecting this system or changing
connections, be sure to switch power off
and disconnect the power cord from the
wall socket.
After completing all connections, connect
the power cords to the wall socket.
WARNING
• Pioneer bears no responsibility for
accidents resulting from faulty assembly or
installation, insufficient mounting strength
of walls, mounting fixtures (or other
building fixtures), misuse or natural
disasters.
1 Assemble the AM loop antenna.
a. Bend the stand in the direction indicated by
the arrow.
b. Clip the loop onto the stand.
c. If you want to fix to a wall or other surface,
perform step b after first securing the
stand with screws.
It is recommended that you determine the
reception strength before securing the
stand with the screws.
AC IN
HDMI OUT
ANALOG AUDIO IN
SPEAKERS (4 Ω )
LINE 2
L
R
LR
FRONT
CENTER
R SURROUND
SUB
WOOFER
ADAPTER PORT
VIDEO OUT (TV)
AV CONNECTOR
LINE 3
A
N
T
E
N
N
A
FM
UNBAL 75 ΩAM LOOP
L
OPTICAL
LINE 1
DIGITAL AUDIO IN
Surround right
(Grey)
Front right
(Red)
Front left
(White)
Subwoofer
(Purple)
Center
(Green)
Surround left
(Blue)
Listening position
TV
To video input
FM antenna
AM loop antenna
fig. a fig. b
fig. c
