Operating instructions

Controls and displays03
14
En
Chapter 3
Controls and displays

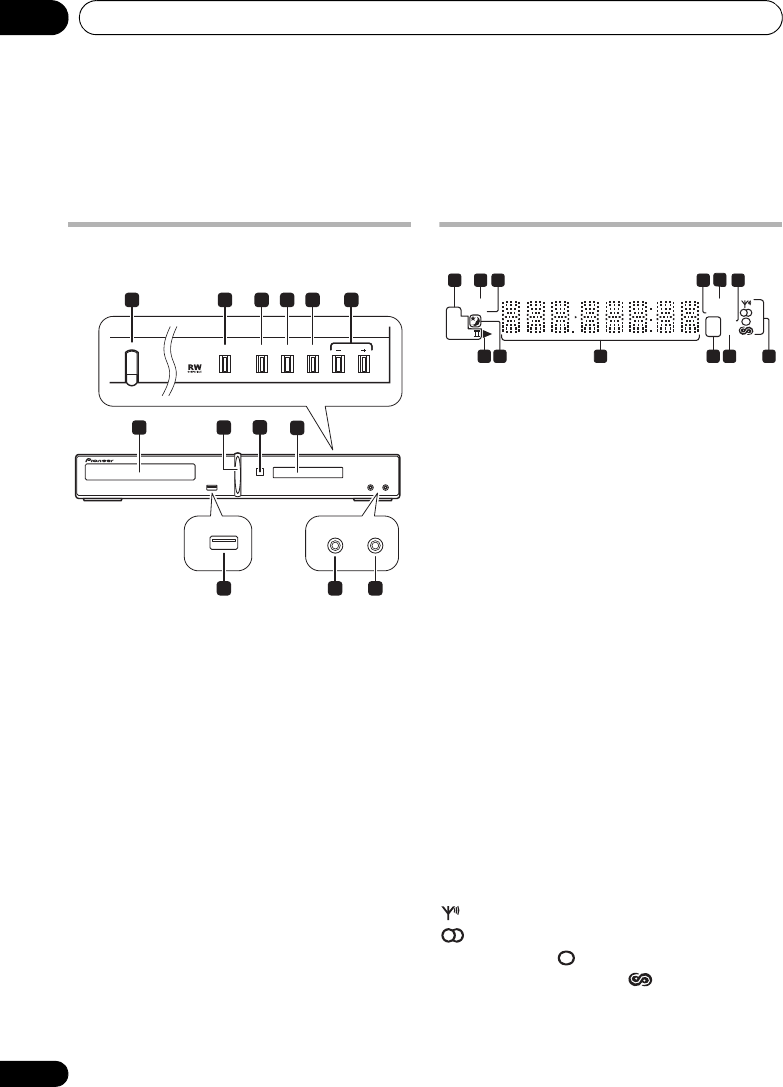

Front panel
The illustration shows the DCS-585/590.
1  STANDBY/ON (page 17, 18, 33, 46, 55
and 57)
Switches the system on or into standby.
2  OPEN/CLOSE (page 19, 33 and 56)
Opens/closes the disc tray.
3Function
4

5 
6 VOLUME +/– (page 19)
7 Disc tray (page 19)
8 Power indicator (Blue)
9 Remote Sensor (page 16)
10 Display
11
USB interface (page 32)
12
MCACC jack (DCS-585/595 only) (page 18)
13 PHONES jack (page 24)
Display
1 Decord indicators (page 22)
DTS lights during playback of a DTS source.
2PL II lights during 2Dolby Pro Logic II
decoding and 2D lights during playback of
Dolby Digital sources.
2 SOUND (page 24)
Lights when the Sound Retriever is active.
3 SURR. (page 22 and 24)
Lights when one of the Advanced Surround
modes or PHONESUR (virtual surround
sound for headphones) mode is selected.
F.SURR.
(page 23)
Lights when one of the Front Stage
Surround Advance mode is selected.
4 RPT and RPT -1 (page 29)
RPT lights during repeat play. RPT-1 lights
during repeat one-track play.
5 REC MODE (page 43)
Lights when Line out mode is LT/RT.
6 PGM (page 28 and 30)
Lights during program play.
7 Tuner indicators (page 20 and 36)
Lights when a broadcast is being received,
Lights when a stereo FM broadcast is
being received, Lights when FM mono
reception is selected and Lights when one
of the RDS display or search modes is
selected.
USB
MCACC SET UP
PHONES
MCACC SET UP
PHONES
USB
OPEN/ CLOSE
STANDBY/ON
FUNCTION
VOLU ME

11 1312
521
7 8
9
10
3 4
6
SOUND
DTS F.SURR.
2PL
2D
REC MODE
RPT -1
kHz
PGM
MHz RDM
1 6
12 89 7
43
11
2
10
5
