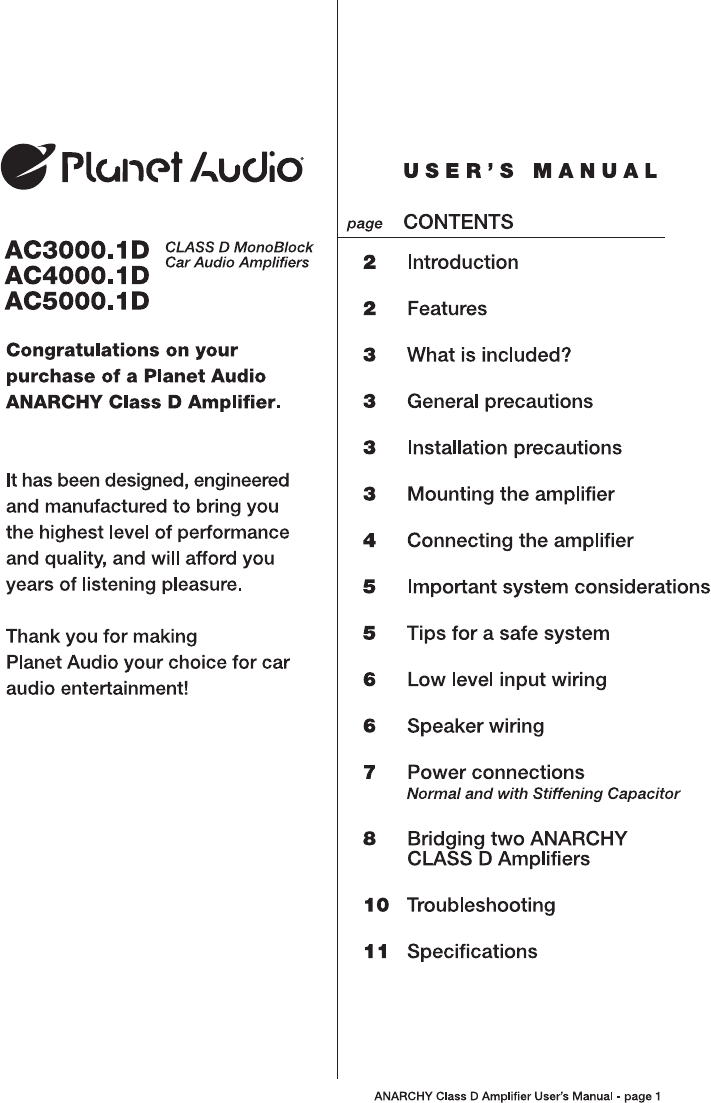

€ Punctual Audio AC3000.1D GLASS D Mono Block ACA4000,1D Aw Amenities AC5000.1D Congratulations on your purchase of a Planet Audio ANARCHY Class D Amplifier. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will afford you years of listening pleasure.
Introduction With the Planet Audio ANARCHY Class D amplifier series, we are Introducing three new CLASS D amplifiers, all designed In the USA. These ANARCHY models feature variable low pass and subsonic fitters and a variable input gain control. These amplifiers also incorporate a pass selector switch to help compensate for time delays in sub woofer applications. For further flexibility In the use of a sub woofer, a variable Bass Boost control has been Included.
What is included? When first unpacking your new amplifier, please check first that the package contains all of the items. below. If something is missing, contact the store where you purchased the amplifier. » Class D amplifier + Remote sub woofer level control * Remote sub woofer control cable + Data link cable {for strapping two Identical ANARCHY Class D amps together) « Four (4) mounting screws General precautions Planet Audio amplifier, please be contained in this manual.
3. Mark the location for the mounting hole screws by positioning the amplifier ‘where you wish to Install It. Use ascribe or mounting screw, Inserted through each of the amp's mounting holes, to mark the mounting surface. If the mounting surface is carpeted, measure the hole centers and mark with a felt tip pen. 4. Drill pilot holes in the mounting surface for the mounting screws. Place the amplifier in position, and attach the amplifier to the mounting surface securely using screws.
Important Installation considerations for using this amplifier. Your ANARCHY Class D amplifier Is designed to run with a minimum load of 1 Ohm. Operating the AC3000.1D, 'AC4000.1D or AC5000.1D with a speaker Impedance load below 1 Ohm may result in poor sound quality and damage to the amplifier circuitry. Such damage is not covered under the warranty for this product. The fuse ratings for these amps is: AC3000.
Low Level Input Wiring Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance.
Bridging Two AC5000.1D, AC4000.1D or AC3000.1D Amplifiers FRONT PANEL CONNECTIONS MASTER AMPLIFIER Front panel Ol To Audio Outputs of head POSITION SLAVE 2e0HNs AMPLIFIER : Front Panel PLEASE NOTE: In this MASTER AMP/SLAVE AMP. configuration, the Soave amp [mm receives its audio signal from the ASTER. ave, Master Amp.
Bridging Two AC5000.1D, AC4000.1D or AC3000.1D Amplifiers REAR PANEL CONNECTIONS Remote Sub woofer Lave Control REPAIRER — 0 Rear panel hone I [= '® ofl © = & Planet Gaucho PLEASE NOTE: FUSE Sod In this MASTER AMP/SLAVE AMP configuration, the Soave amp re calves Ite audio signal from the — Master Amp.
Troubleshooting If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous pages. If problems persist, read the following troubleshooting tips which may help eliminate the problems. SYMPTOM POSSIBLE REMEDY Amplifier will not | Check to make sure you have a good ground connection. power up. Check that the Remote input (Turn-On} has at least 3VDC. Check that thees is battery power on the terminal.
