User Manual

3
4
ENGLISH
ENGLISH

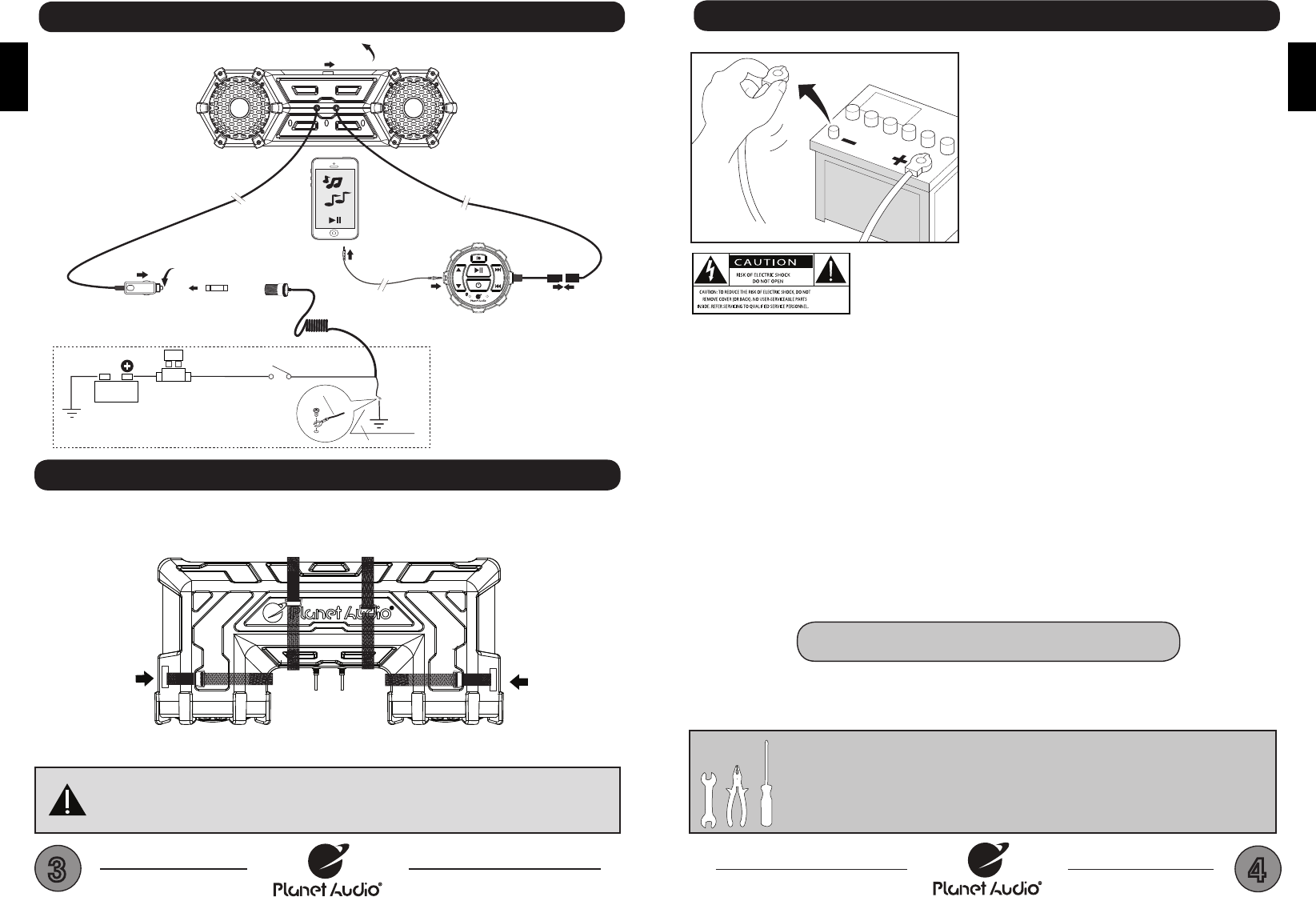

WIRE DIAGRAM
BEFORE INSTALLING THIS PRODUCT
When replacing the fuse, be sure to only use a fuse of the
rating specied on this product.
To avoid short-circuiting, cover any disconnected leads with insulating tape. It is
especially important to insulate any unused wires, which if left uncovered may
cause a short circuit. When connecting other devices to this product, refer to the
manual for the product to be connected. The black cable is ground, make sure to
connect the ground wire rst.
Ensure that the ground cable is properly connected to metal parts of the vehicles
body frame or direct to the battery if your vehicle does not have a grounded
chassis frame The ground cable of this units power amp and a second powered
system must be connected to the frame separately with dierent screws. If the
screw for the ground wire loosens or falls out, it could result in re or malfunction.
To avoid potential shorts in the
electrical system, be sure to disconnect
the (–) battery cable before installation.
Use this unit with a 12-volt battery and
negative grounding only. Failure to do so
may result in a re or malfunction.
TOOLS NEEDED:
- Wrench and/or Pliers
- #2 Phillips screwdriver
- Crimp tool
- Electrical tape
TECHNICAL SUPPORT
1.805.322.8794
www.planetaudiousa.com/technical-support
15A
Fuse and fuse holder
(not included)
Chassis
ground
point
BATTERY
Fuse is located inside the power adaptor
Turn counter clockwise to open
Replace with
10A AGC Fuse type only
Normally open switch
(not included)
INSERT
OPTIONAL DIRECT BATTERY WIRING CIRCUIT
RED
BLACK
Chassis
ground
point
QUICK RELEASE
POWER ADAPTOR
(INCLUDED)
POWER ADAPTOR
15A
Ground wire
Metal frame
Recommended 14 ~ 16ga Wire
(not included)
Mini-DIN
Connector
INSERT
MFC
Align arrows
INSERT
Your cable
3.5mm to 3.5mm
(not included)
SLIDE TO OPEN
SPEAKER MOUNTING SUGGESTIONS
Route strap
through the hole
and to vehicle
frame
Route straps
around the speaker body to vehicle frame
Route strap
through the hole
and to vehicle
frame
CAUTION!!
Mounting straps should be double checked to be sure they are
pulled tight and secure before each use of the vehicle.
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
USB CHARGING
INSIDE COMPARTMENT
ALWAYS
CLOSE AND
LOCK DOOR
BEFORE USE
