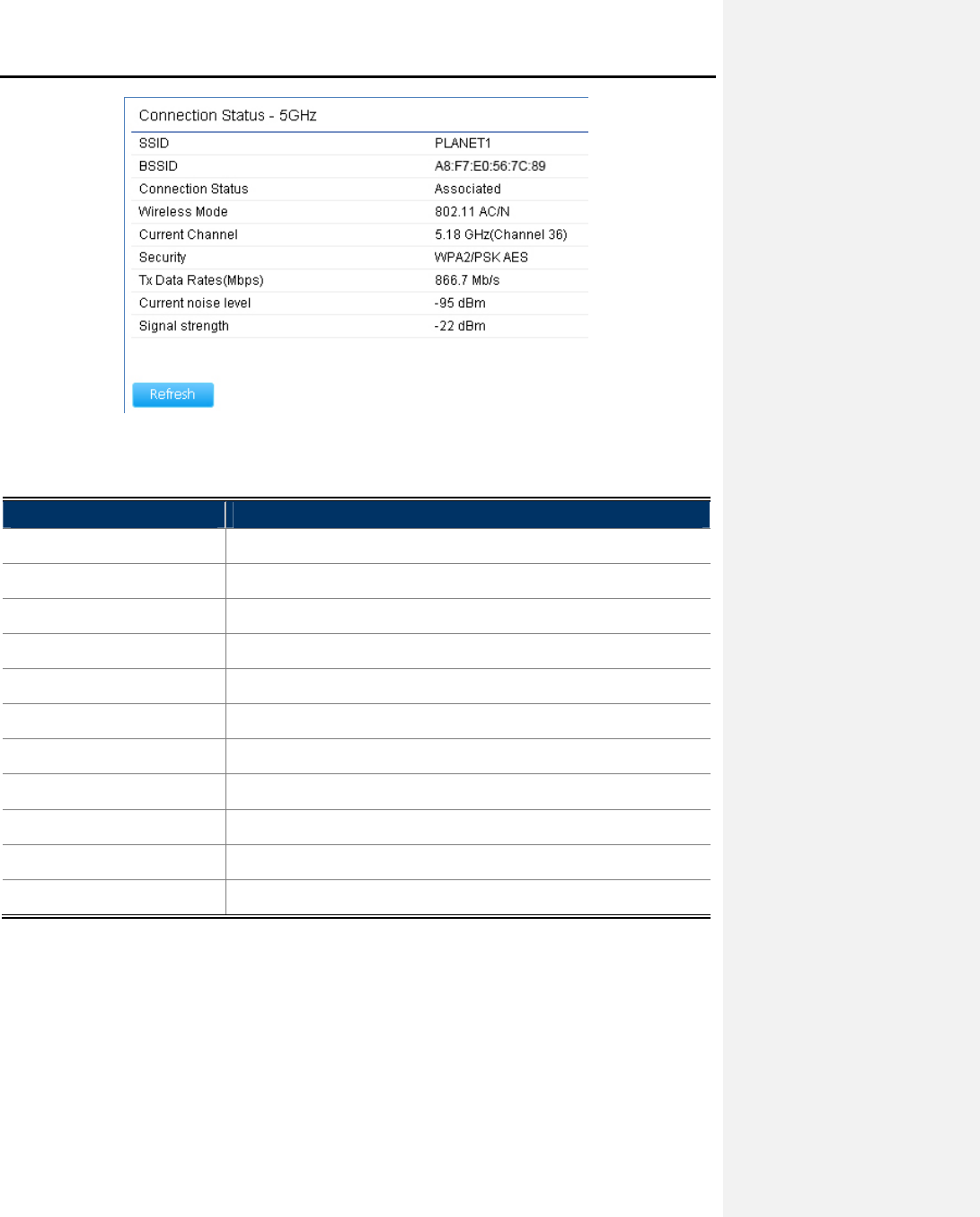

Figure 4-9 Connection Status
The page includes the following settings:
Object Description
• Network Type
The current operation mode of the device.
• SSID
The SSID of the connected AP.
• BSSID
The MAC Address of the connected AP.
• Connection Status
The status of the connection.
• Wireless Mode
The current wireless mode of the AP.
• Current Channel
The current channel used of this connection.
• Security
The encryption method of the AP.
• Tx Data Rates (Mbps)
The current data rates of the connection.
• Current Noise Level
The current noise level of the connection
• Signal Strength
The current signal strength of the connected AP.
• Refresh
Click Refresh to update the current data.
4.3 Network
4.3.1 IP Settings
Click “Network

Basic” to configure the LAN IP address.
