ASSEMBLY
z IMPORTANT: Please invite one or more people to help assemble.

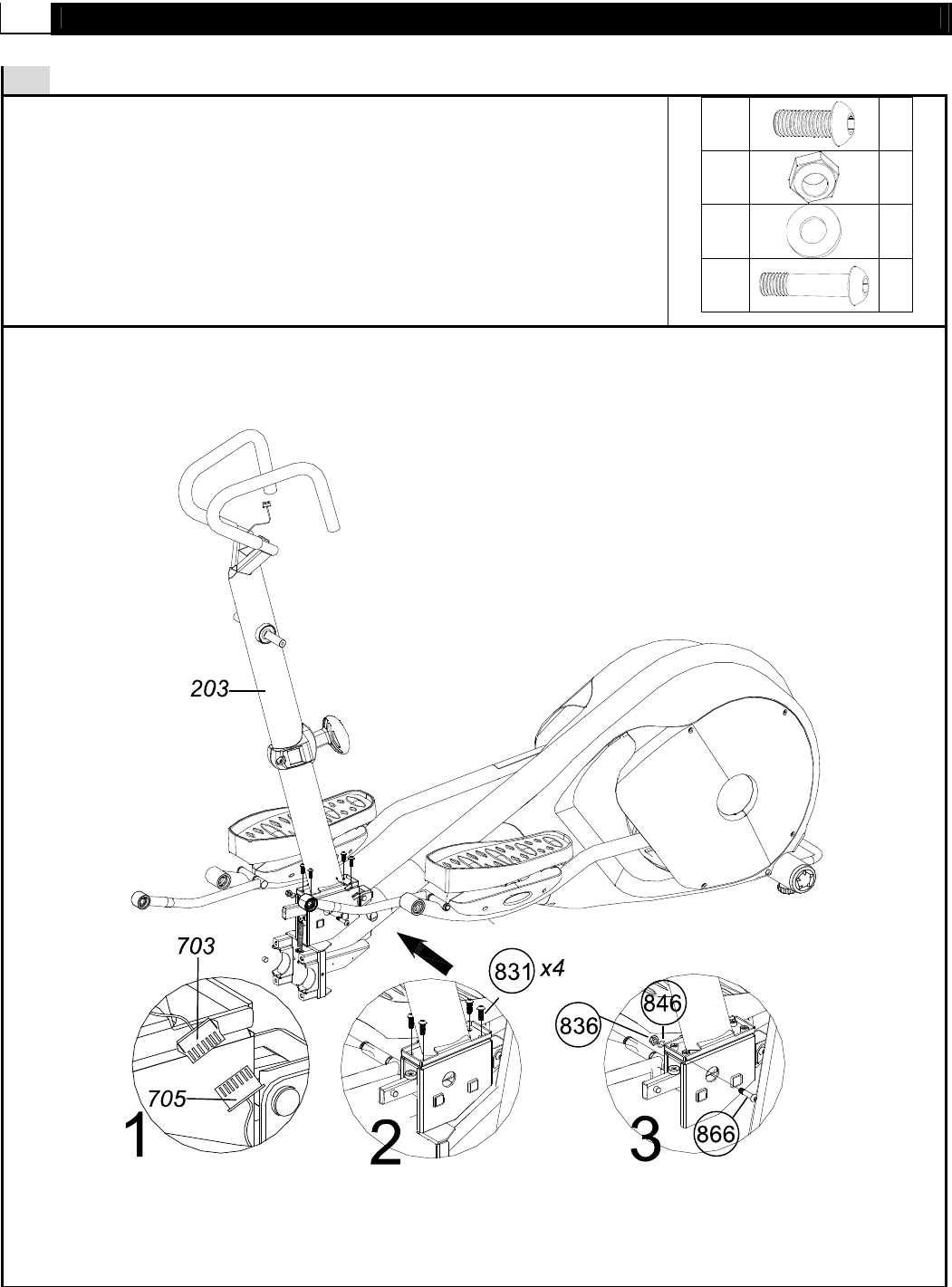

STEP 1: Assemble the Upright
1) Connect the 7pin wire-Middle (703) to the 7pin wire-Lower (705) before assembling the
upright (203).
2) Attach the upright to the Main frame front and secure with four M8 x 20mm Bolts (831).
3) Then use one M8 x 35mm Bolts(866), one Φ8mm Washer (846) and one M8mm Nut
(836) to connect the Incline adjustment tube (209) to Incline adjustment Equipment
(210).
831
4
836
1
846
1
866
1
