SMOOTH CE3.7 Elliptical 21
Visit us at : www.smoothfitness.com
ASSEMBLY

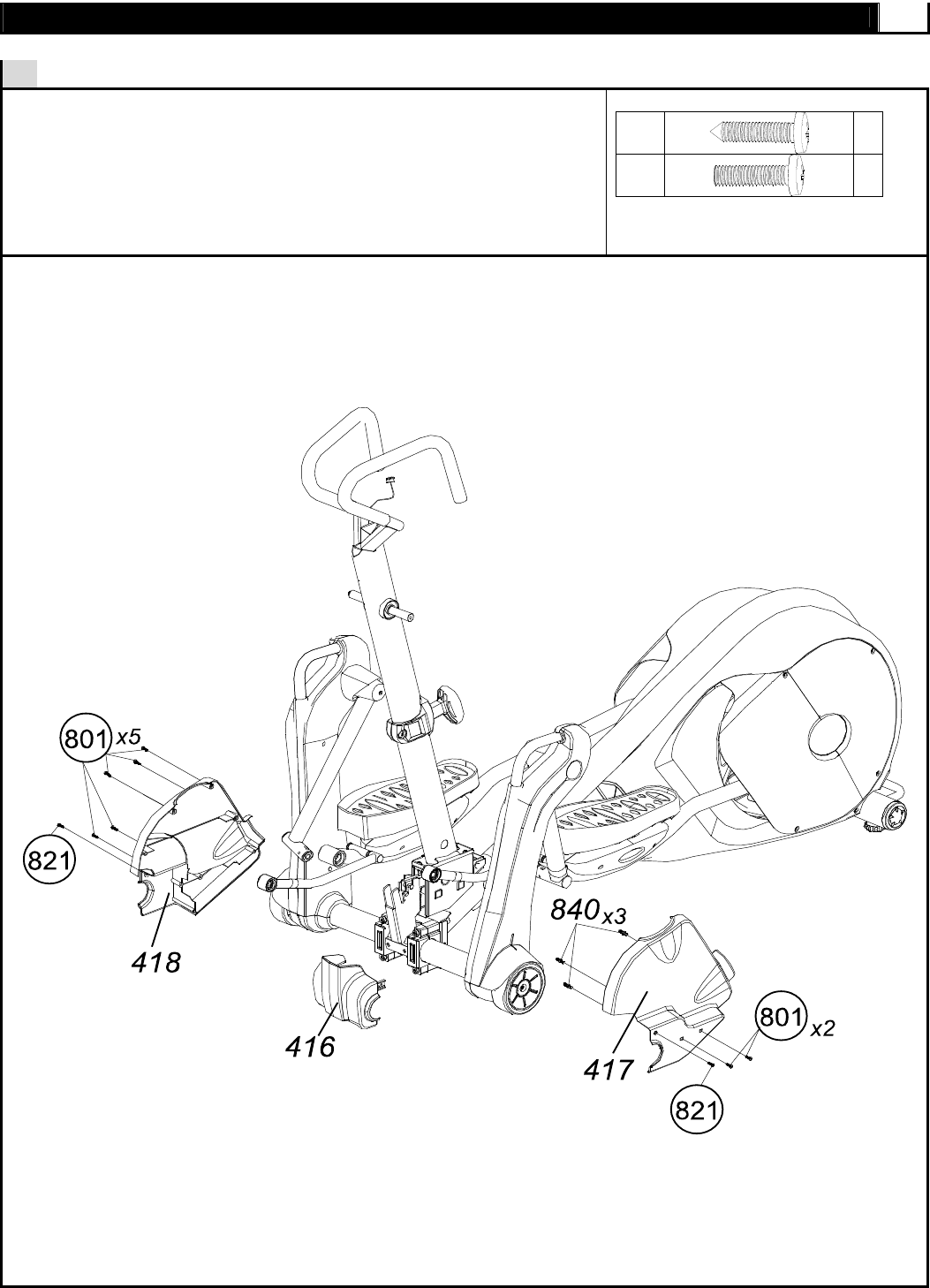

STEP 4: Assemble the Incline Frame Cover
801
Assemble the Incline Frame Cover L/R (417/418) using the pre-assembled plastic
inserts (840) by pressing the two covers together (see STEP 8 for cover
location) .Next, press the Incline Frame Front Cover (416) into position, then
securing with seven Φ4x15mm screws (801) and securing with two Φ4x13mm
screws (821).
7
821
2
