SMOOTH CE 23 3.7 Elliptical
Visit us at : www.smoothfitness.com
ASSEMBLY

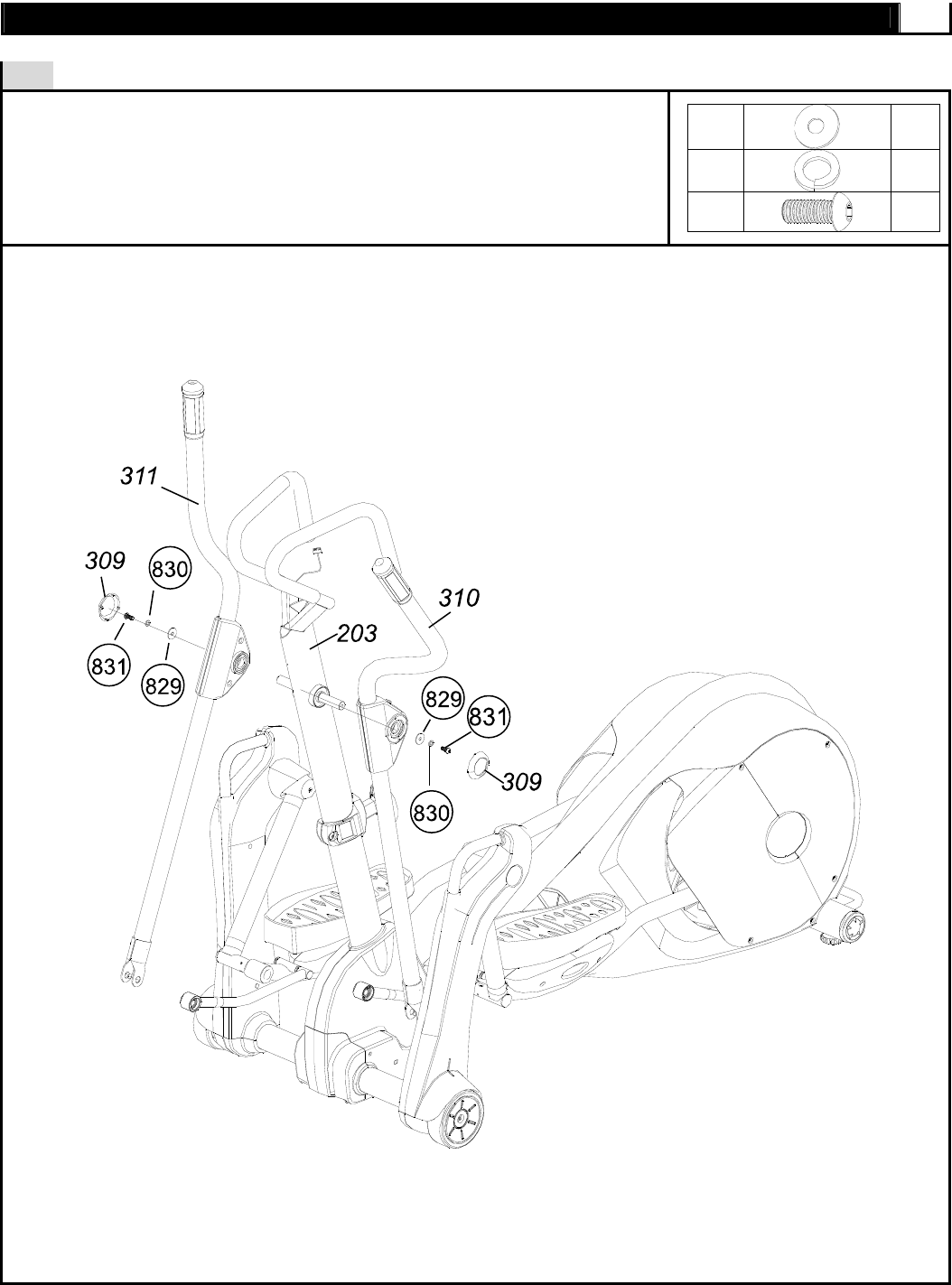

STEP 6 : Assemble the Handlebar
1) Connect the Action Handlebar R/L (310/311) to the upright secure using one M8 x
20mm Bolt (831), one Φ8 x 14mm Spring washer (830) and one Φ8mm washer (829).
2) Then attach the Action handlebar bushing cover (309).
829
2
830
2
831
2
