ASSEMBLY

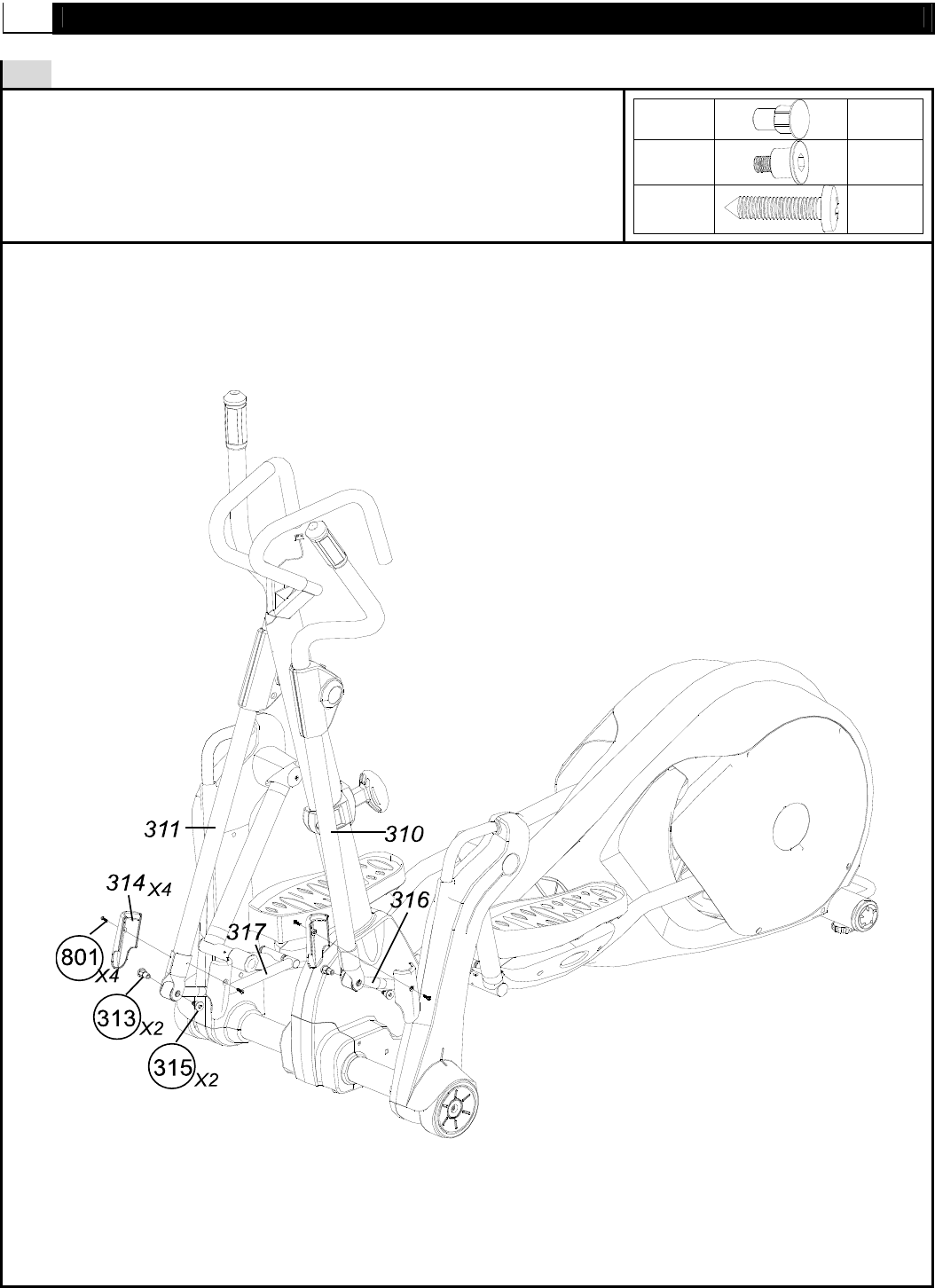

STEP 7 : Connect the Swing Linkage tube and Action Handlebar
1) Secure the Swing linkage Tubes (316/317) to the Action Handlebars (310/311)
with one M8-16X26mm Bolt (313) and one M8-16x22mm Bolt (315) for each
linkage.
313
2) Then attach the swing arm lower covers (314) to the Swing arm and secure with
Φ4 x15mm screws (801).
2
315
2
801 4
