SMOOTH CE3.7 Elliptical 26
Visit us at : www.smoothfitness.com
ASSEMBLY

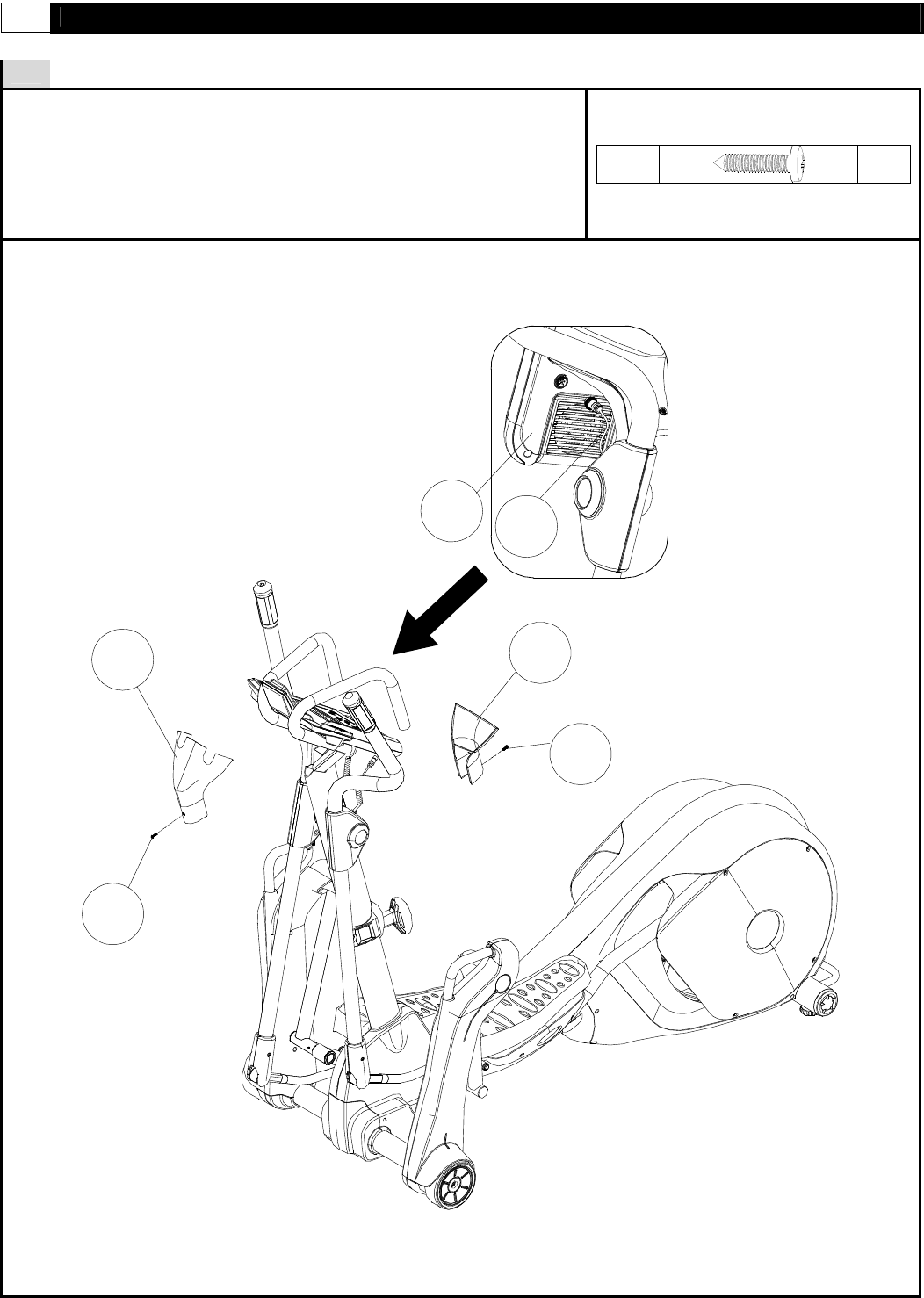

STEP 9: Assemble the Upright Upper cover
1) Attach the upright upper covers (213/214) to the upright using two M4 x 15mm
(801) screws
2) Connect the two Hand pulse sensor cables (707) to the lower side of
computer as drawing shown.
801
2
214
801
213
801
A1
707
