SMOOTH CE3.7 Elliptical 4
Visit us at : www.smoothfitness.com

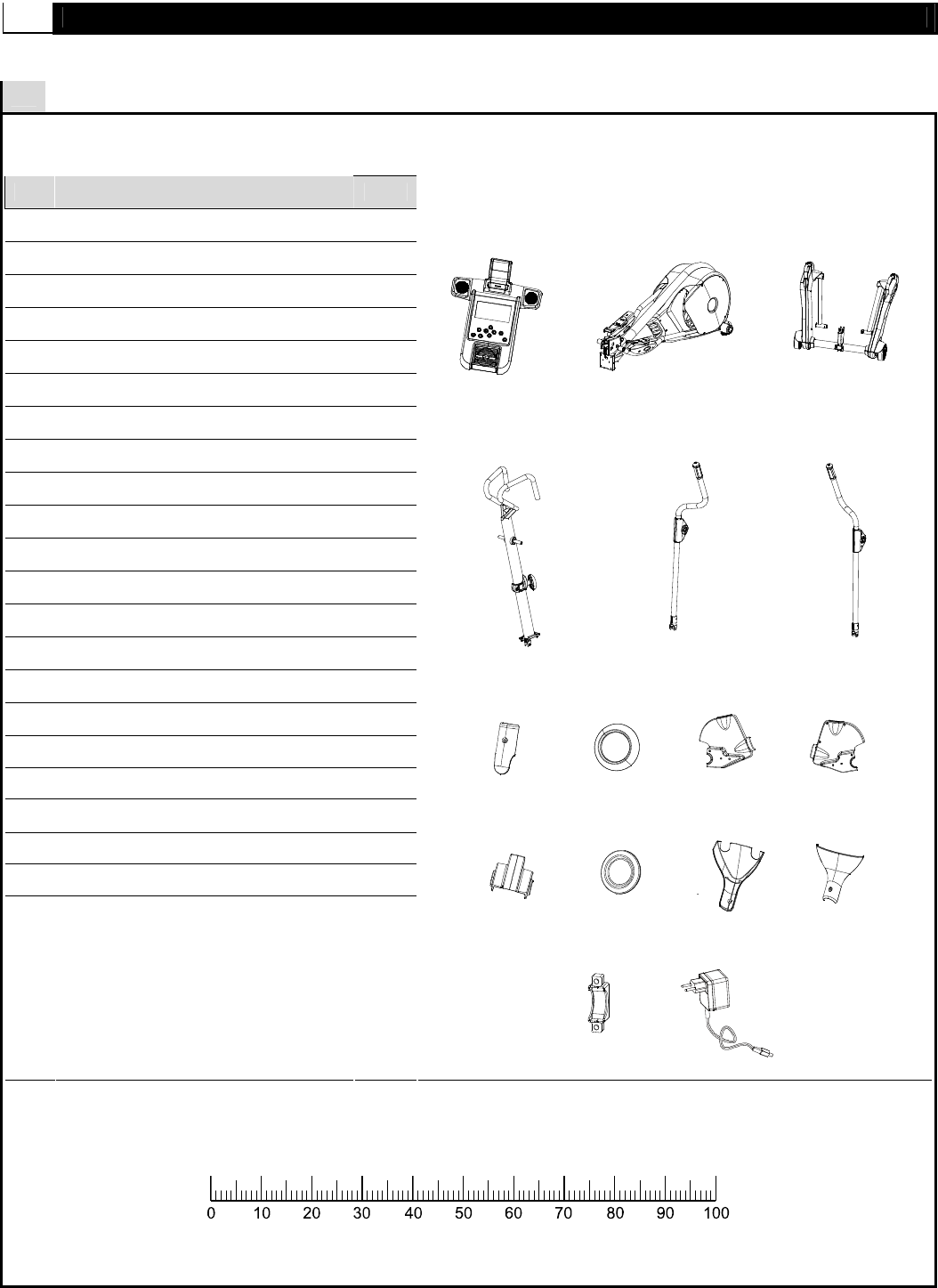

SUPPLIED COMPONENTS
This list identifies the major components you will use to assemble this product.
No. Description Qty.
A1 Computer Assembly 1
A2 Main Assembly 1
A3 Incline Frame Assembly 1
A4 Upright Assembly 1
A5 Action Handlebar-Left Assembly 1
A6 Action Handlebar-Right Assembly 1
213
Upright Upper Cover-Front 1
214
Upright Upper Cover-Back 1
309 Action Handlebar Bushing Cover 2
314
Swing Arm Lower Cover 4
330
Pedal Arm Front Pivot Cover 2
416
Incline Frame Cover-Front 1
417 Incline Frame Cover-Left 1
418
Incline Frame Cover-Right 1
419 Incline Frame Holder-Front 2
607
Adapter 1
A5
A6
A4
314 309 417 418
A
2
A
1
A
3
416 323 214 213
419
607
MILLIMETERS
