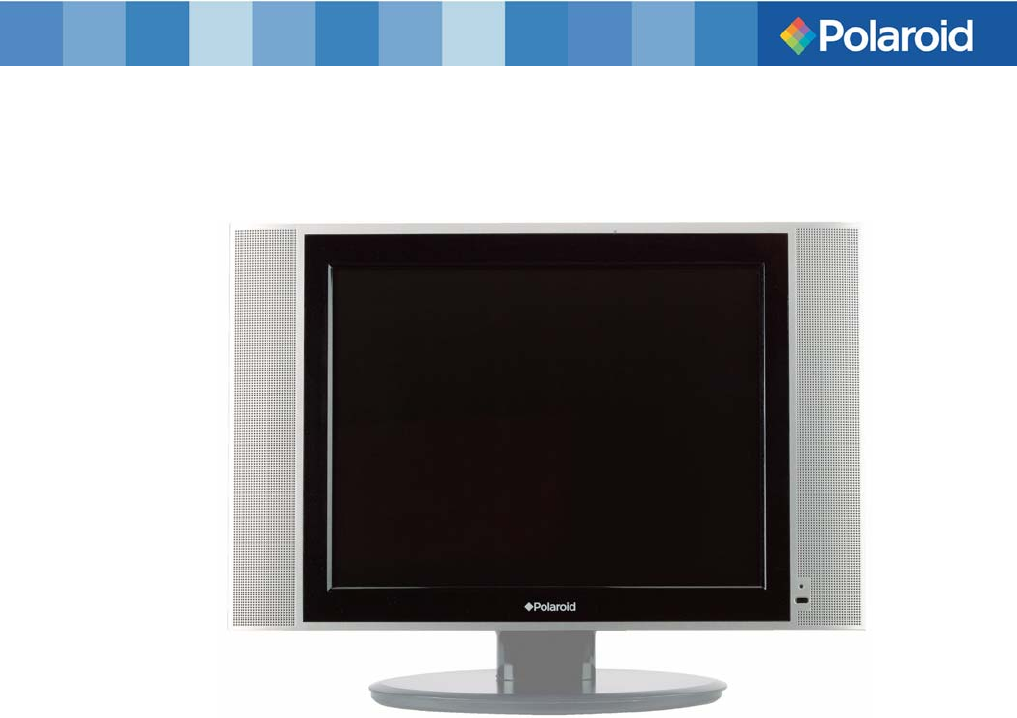

5 ” LCD Television FLM-1507 20050829 1
DEAR CUSTOMER: Congratulations on your purchase of a Polaroid LCD color television! This manual will help you use the many exciting and useful features to make your LCD TV viewing more enjoyable than ever before. Before operating, please read all these safety and operating instructions completely and then retain this manual for future reference. Instruction Manual WARNING To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Product Information Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. These numbers are located on the back of your LCD color television. Model No. Serial No. Purchase Date: Dealer/Address/Phone: Instruction Manual IMPORTANT SAFETY INSTRUCTIONS 1. 2. 3. 4. 5. 6. 7. 8. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.
Instruction Manual FCC Warning Class B Computing Device Information to User This equipment has been tested and found to comply with the limits for a Class B Digital Device pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
PACKING LIST LCD TV Operation Manual Power Adapter AC Power Cable Infrared Remote Control Remote Control Battery Warranty Card Quick Start Guide 1 1 1 1 1 2 1 1 Note: Please keep the original box and packaging for transporting the set in the future. GENERAL INFORMATION Radio Frequency input; supports CATV Capable of receiving cable programs in 470MHz, it can store 181 TV channels AV input Convenient for watching a DVD player, VCR, video camera or other playback devices.
Blue background with noise reduction In AV S-VIDEO and YPbPr modes, screen displays soft blue background if there is no signal input Multi Language On-Screen Display menu Text and graphical user interface makes the menu operation user-friendly Power Energy Saving Mode (Power management mode) When used as PC display terminal without PC signal output, the LCD TV will automatically power off within 30 seconds and enter Power Energy Saving Mode.
INTRODUCTION Front Panel The button names and functions are as follows: Panel buttons Button SOURCE MENU VOLVOL+ CH- CH+ Description To switch between TV, AV, S-Video, YPbPr and PC signal sources. The same function as SOURCE on R/C (remote control) in menu operation. To enter or quit from the OSD (On-Screen Display) menu. The same function as MENU on R/C To decrease the sound volume. Adjust functions in menu operation. The same function as Vol- on the R/C To increase the sound volume.
Rear Panel Detail Illustration of Signal Input Ports 8
Remote Control Note: 1. When in operation, point the remote control directly at the infrared sensor. 2. Do not subject the remote control to impacts, water or disassembly. 3. When pressing the buttons on the remote control, allow an interval of no less than one second between selections.
INSTALLATION 1. Remove the LCD TV from the box and place it on a flat surface in a well-ventilated location. 2. Connect the output terminal of RF cable to the corresponding TV RF signal input terminal. The LCD TV is a high technology digital product, use quality RF cables to obtain optimal results. 3. Connect the output terminal of the AV devices such as DVD player, VCR, etc. to the corresponding terminal of your LCD TV. 4.
FUNCTION INTRODUCTION MENU OPERATION 1. Use the On Screen Display menu to set and adjust functions 2. Use CH+/CH- to select the desired menu after pressing MENU, then press Vol+/OK to enter the next submenu; Use Vol+/Vol- to select the menu options and return to the previous menu by pressing MENU again. The menu will disappear without any operation within 10 seconds.
Setup ● Language To select the displayed language ● Parental Lock In the Parent submenu, first the Access Code menu appears. When you switch to a locked channel, you will see this menu: In the Parent menu two options of TV Rating and MPAA Rating appear on display: TV Rating: Used to block some programs (eroticism, violence). Navigate to the desired Rating (FV, D, L, S, V) using the CH+/CH- buttons on your remote. Use VOL +/- buttons on your remote to select the desired rating.
Program Lock Input the default password of 1235, the submenu of Parent will display if the password is correct. (a) When changing the password, the changed password will be updated after four digits are input. The word “ok” appears after you input the same number twice, if the two passwords are different the word “Failure” will appear. (b) When All Clear is selected, all programs are unlocked.
● Antenna To display the RF antenna mode, when this mode is Air, Auto Search begins searching from channel 2 to channel 69. When this mode is Cable, Auto Search begins from channel 1 to channel 125. After searching, all available channels are stored in the TV’s memory, ● Auto search Auto Search will stop in three situations: 1. The TV does auto search and stores channels from VHF/UHF automatically. 2. All 68 channels (Air mode) or 125 channels (Cable mode) are occupied 3.
3. This function is only available when the main power supply is connected. 4. For the ClockTime and Off Time, “Minute” ranges from 00 to 59 and “Hour” ranges from 1 to12 AM and 1 to 12 PM. When “Hour” turns to “--” “Minute”also turns to “--” and the Clock function stops. ● Channel Select the On Program channel from 2 to 69 (Air mode) or from 1 to 125 (Cable mode) by pressing Vol+/Vol- repeatedly or numeric buttons directly. Select the items by pressing CH+/CH-. 1.
OTHER FUNCTIONS . ● Volume Control 1. Press Vol+/Vol- to increase or decrease the volume when no menu is displayed on the screen. The Volume menu will turn off automatically if there is no operation in about 5 seconds. 2. Press MUTE on the remote control to turn MUTE mode off and on. In Mute mode, “MUTE” in red letters will appear on the upper-right corner of the screen. This sign is hidden when menu operation is entered, but MUTE still operates. The sign appears again when menu operation is exited.
● CCD Press CC to see the menu on the right. Select the desired option among CC1-CC4, T1-T4 and OFF with CH+/CH-. Confirm your choice by pressing OK. ● Favorites Press FAVOR to see the menu on the right: 1. Mode including Auto and Manual. They are respectively stored in Air or Cable mode 2. In Auto mode, the TV stores the channel name (if any has been programmed) to Favorite Channels. It will save the latest five available channel names. 3. In Manual mode select different sorting options with CH+/CH-.
● Sleep Function Press SLEEP on the remote control once to activate the function and additional times to select a sleep time of 0, 15, 30, 45, 60, 90, 120, 150, 180, 240 and 0 minutes. This will be reflected at the top right corner of the screen. After this step is done, press SLEEP to view the set sleep. See the illustration at the right.
●TROUBLESHOOTING Before calling our customer care number, please check the following table to see if the below mentioned symptoms can be diagnosed and fixed. Symptoms Possible Reasons Correction No picture, no sound, and no indicator light on 1.The power adapter is not plugged in 2.The power is off 1.Plug the power adapter in 2.
SPECIFICATIONS Items Specifications Size (diagonal) 15.0 inch Brightness:250cd/m2 Contrast: 450:1 Angle of View:1200(H)/1000(V) Speed Response:16ms LCD panel Lamp Life: 50,000 Hours items Recommended 1024X768 Pixel Pitch 0.297mm(H) X 0.297mm (V) Number of Dots 1024XRGBX768 Viewable Area 304.1mm(H) x 228.1mm (V) Color Display 16.
For service, support and warranty information, visit www.polaroid.com or in the US call 1-866-289-5168, in Canada call 1-866-301-7922 and in Mexico call 01-800-400-2443. "Polaroid" and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA.
