Replacement Part List

19

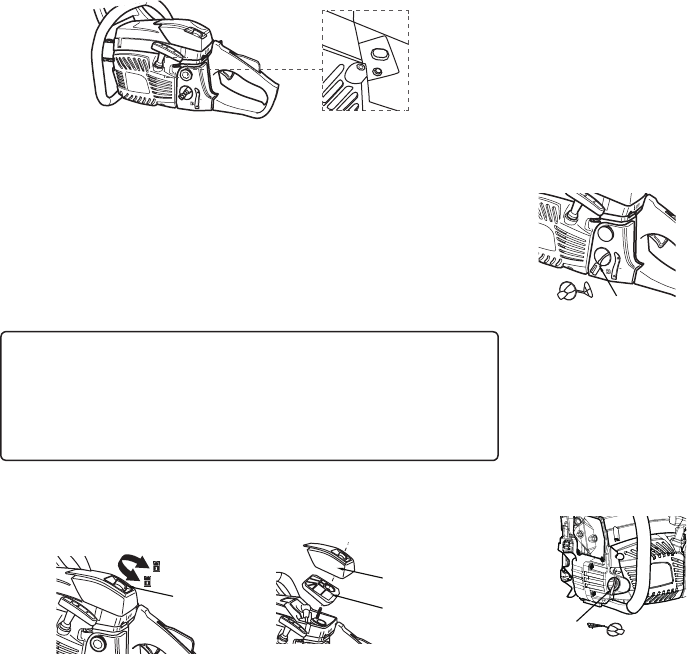

Carburetor
L
H
T
Do not adjust the carburetor unless otherwise required.
The carburetor is adjusted according to the following steps;
• Low-speed mixing regulator (L): rotate 1 - 1.25 turns.
• High-speed mixing regulator (H): rotate 1.5 - 2 turns.
• Idle-speed regulator (T): rotate the screw to the bottom
mark and then clockwise until the saw chain rotates,
followed by rotation of 1/2 turn.
Warning
Beforestart,theidle-speedregulatormustbeadjusted
untilthesawchaindoesnotrotate.
Air lter
Air filter
locking nut
HL
HL
Air filter
cover
Air filter
Check it before each use.
Loose the air lter locking nut, remove the air lter cover, and
take out the air lter. Carefully wipe the dust, or clean the air
lter with high-pressure air, or replace the air lter.
Reinstall the air lter and air lter cover, and tighten the air
lter locking nut.
Fuel supply system
Check whether fuel leaks out of the fuel pipe, sealing plug and
fuel tank after fuel lling and before use.
Fire may be caused in case of fuel leakage. Immediately stop the
machine, and co
ntact POWERKING for repair.
Gasoline lter
Check it on a regular basis.
• Prevent the fuel container from
dust.
• If the lter is blocked, the engine
cannot be started easily or rotates
abnormally.
• Take the fuel lter out of the fuel inlet with the iron wire
or similar tools.
• If the lter screen is too dirty, replace it.
• If there is dust in the fuel tank, clean the tank with
gasoline.
Oil Filter
Check it on a regular basis.
• Prevent the oil container from dust.
• If the oil lter screen is blocked,
normal lubrication of the system
will be affected.
• Take the oil lter screen out of
the oil inlet with the iron wire or
similar tools.
• If there is dirt on the lter, clean it with gasoline.
• If there is dirt in the oil tank, clean the tank with gasoline.
Gasoline filter
HL
2
1
4
1
Oil
filter
