Use and Care Manual

MODEL NO. 17001INSTRUCTION SHEET
Workbench Caster Kit with
Multi-Mounting Options
(4 Sets)
QUESTION...
1•847•780•6120
UNPACKING
You will need this manual for safety instructions,
operating procedures, and warranty. Check for
shipping damage. IMMEDIATELY CHECK AND
MAKE SURE ALL PARTS AND ACCESSORIES
ARE INCLUDED.
X4
X4
X4 X4 X16

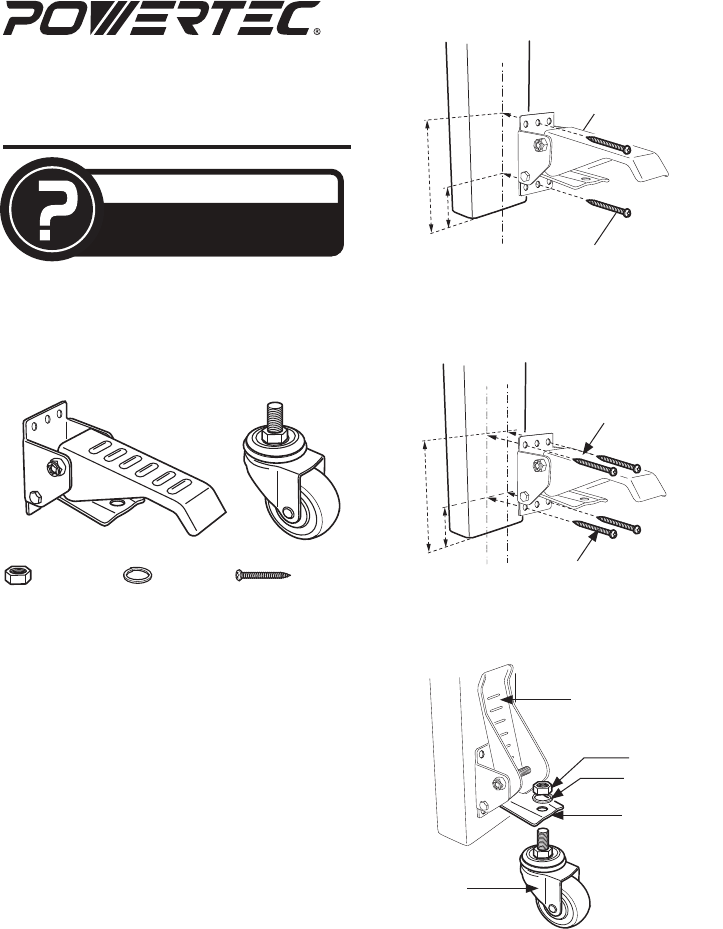

ASSEMBLY
1. If using two screw assembly shown in
Figure 1.
a. Mark your drill points on the
workbench leg at 2" (51 mm) and
4-3/4" (120 mm) from the bottom of
the leg.
b. Drill two pilot holes on each
workbench leg.
If using four screw assembly shown in
Figure 2.
c. Mark your drill points on the
workbench leg at 2" (51 mm) and
4-3/4" (120 mm) from the bottom of
the leg.
d. Drill four pilot holes on each
workbench leg.
2. Install Pedal Bracket Assembly to the
workbench leg with Wood Screws provided.
(Figure 1 and 2)
3. Attach Caster to Pedal Bracket Assembly
using Nut and Lock Washer provided.
(Figure 3)
NOTE: You may need to remove the caster from
the Caster Plate to attach and secure the Pedal
Bracket Assembly to the workbench leg.
Figure 1
Figure 2
Figure 3
Workbench Leg
Pedal Bracket
Assembly
Wood Screw
4-3/4"
2"
Workbench Leg
Pedal Bracket
Assembly
Wood Screw
4-3/4"
2"
Pedal Bracket
Assembly
Caster
Caster Plate
Nut
Lock Washer
