NOTE Pedestals are required for installations with one or two cabinets. Joining brackets
are required for installations with two or more cabinets.
Air Vents

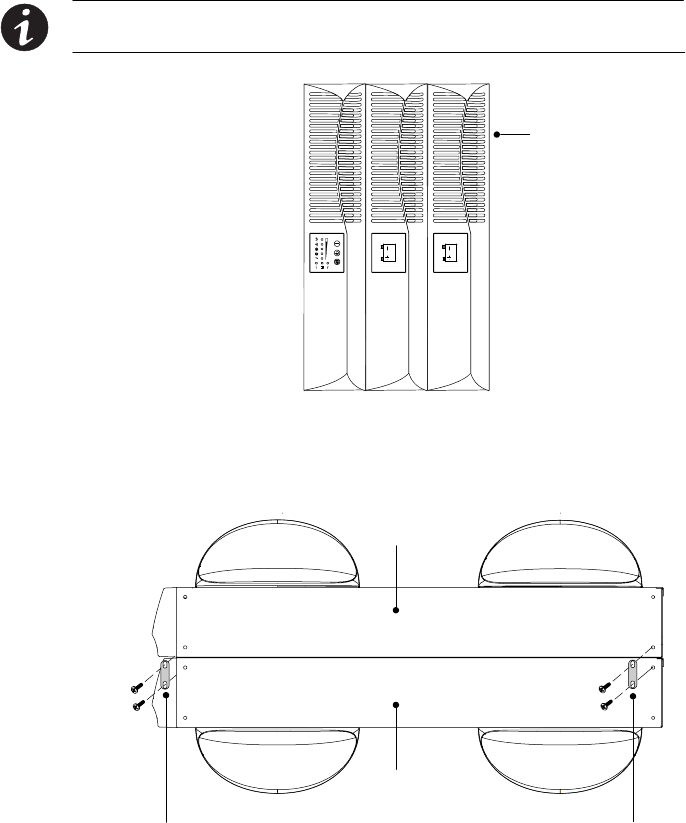

Figure 12. Tower Setup with Three Cabinets
10. Align each joining bracket with the adjacent corner screw holes and
secure with the supplied screws (see Figure 13).
Joining Bracket
EBM
UPS
Joining Bracket
Figure 13. Installing the Joining Brackets (Top View with Pedestals)
11. If installing additional EBMs, repeat Step 10 for each cabinet.
12. If installing optional EBMs, continue to the following section,
“Extended Battery Module Installation.” Otherwise, continue to
“Plug-Receptacle UPS Installation” on page 25 or “Hardwired UPS
Installation” on page 27 to complete the installation.
