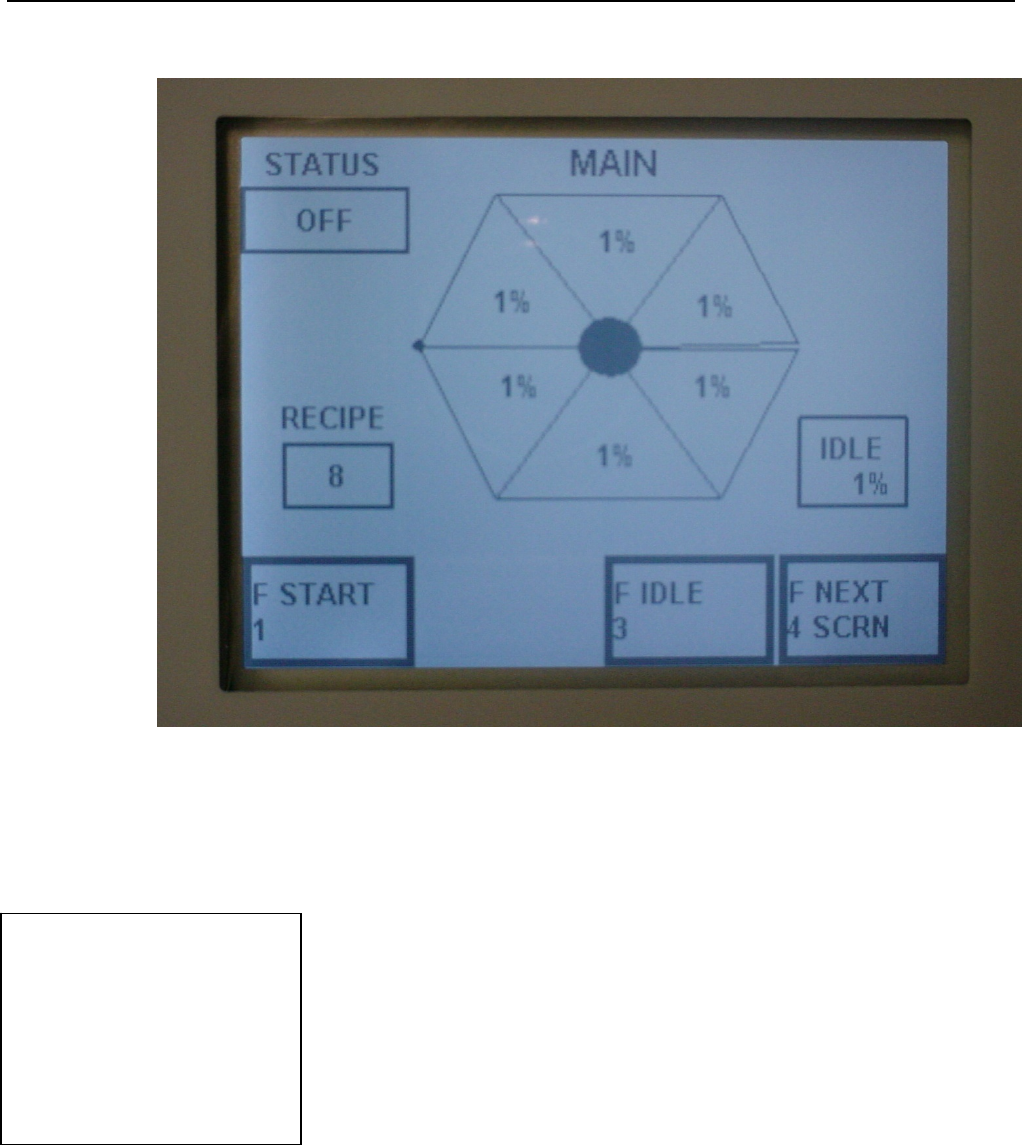

MAIN SCREEN
The MAIN screen allows monitoring of the system status, viewing the
current recipe, Starting/Stopping the recipe and changing between Idle
and Run. The display in the center represents a cross-sectional view of
the heater, with the hinge on the left side and the opening side on the
right. The darkened circle in the center represents the heating cavity
and it will blink when power is applied to the lamps.
Three keys are displayed and function when this screen is displayed, a
fourth key is active but not displayed.
F1 START key: This key will start and stop the system, once the
system is started the legend in the F1 box will change to STOP
allowing the F1 key to stop the system and the STATUS box will
display RUNNING. The system will not start if an alarm condition
exists and ALARM will be displayed in the STATUS box, see the
ALARM SCREEN page for more details.
NOTE: The START key
will not be displayed or
active if the recipe
displayed on the RECIPE
screen and the loaded
recipe, displayed on the
MAIN screen do not match.
