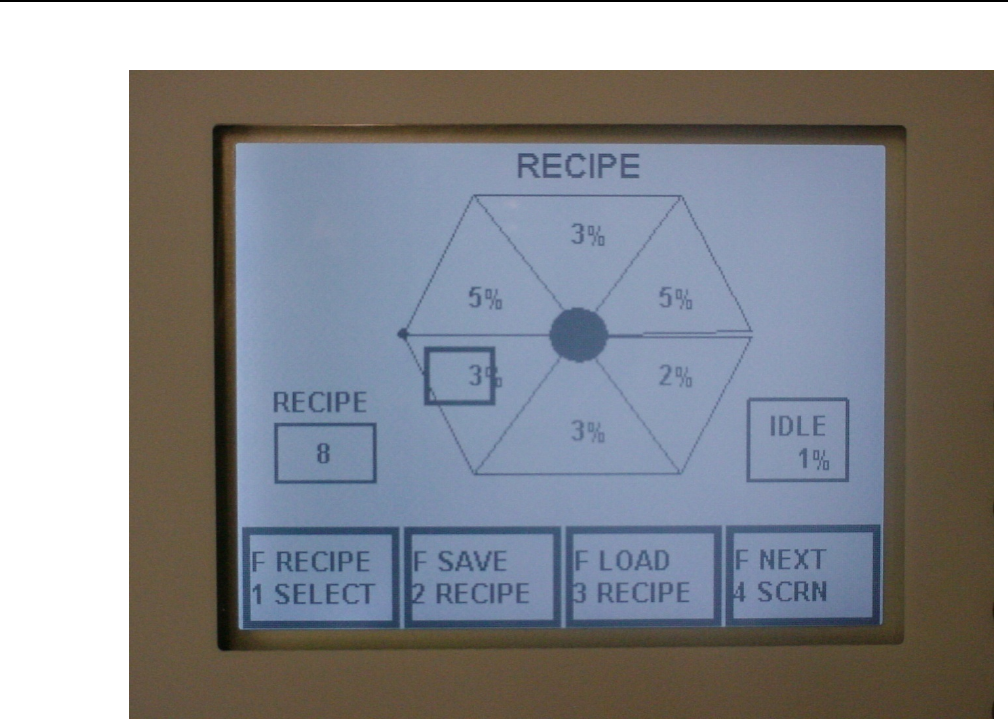

RECIPE SCREEN

The RECIPE screen allows recipe selection, loading, creation or

modification, and saving of up to twenty recipes.

Recipe Selection The F1 key (RECIPE SELECT) will step through

the recipes from 1 to 20 and wrap back to 1. The zone power levels

and idle power level will be displayed as each recipe appears on the

screen. The F5 key is does not have a legend displayed, but it will

select the previous recipe.

Note: The RECIPE SELECT key is not displayed or available while in

the RUNNING mode. Only the current recipe may be modified at this

time.

Recipe Loading The F3 key (LOAD RECIPE) will take the selected

recipe and load it into active memory and change the display to the

MAIN screen, to allow the recipe to be run. Only after a recipe has

been loaded, can it be run.
