Manual

Model 4069 ProfileIR
TM
User Manual Maintenance
Research, Inc. 26
REMOVING THE
REFLECTORS
The reflectors can be removed from the Model 4069 Heater to make cleaning and
maintenance easier. The following procedure should be used to remove the Model
4069 reflectors:
Note:
Remove all power from the heater BEFORE attempting to install/replace the
heater reflectors.
1. Drain all cooling fluid from the heater and blow out the heater cooling lines
with compressed air.

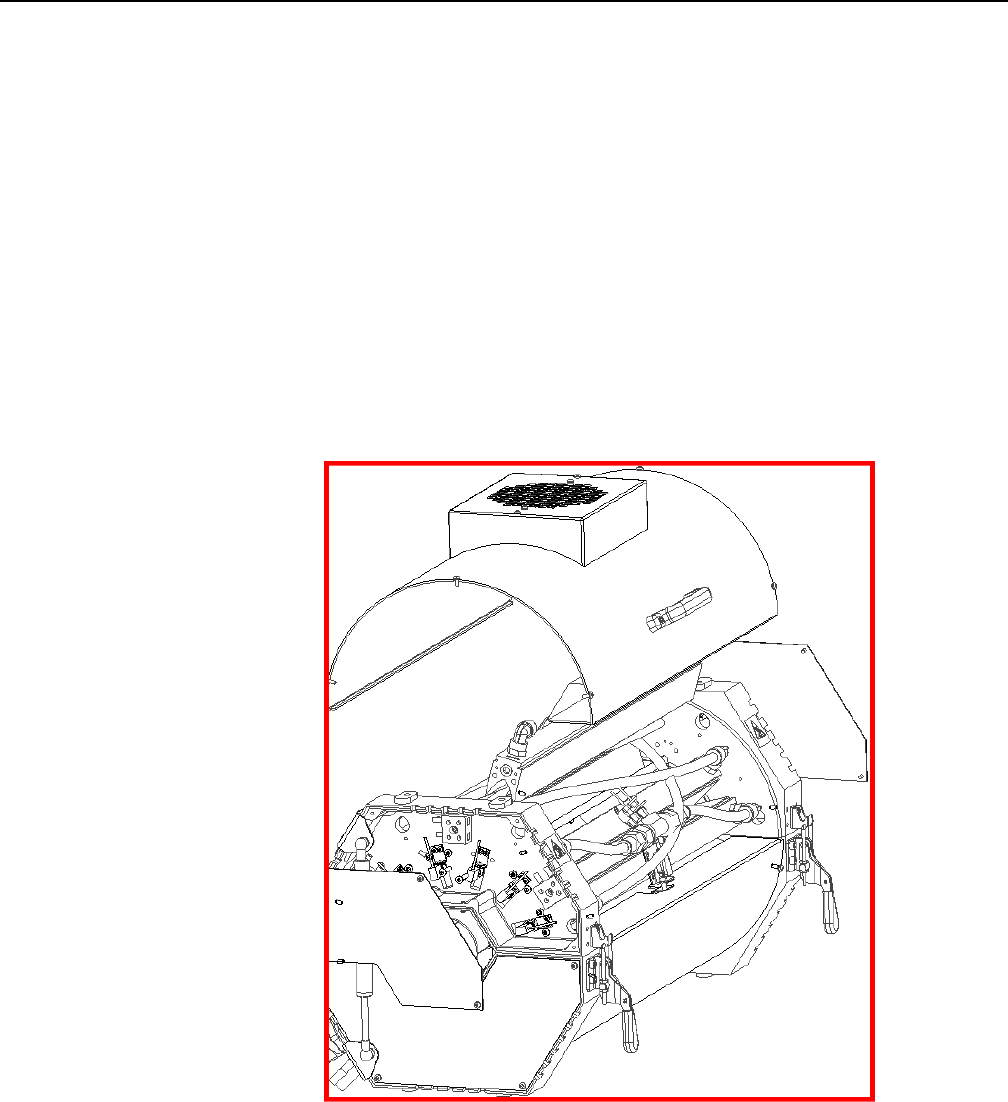

2. Remove the heater-cover screws and heater cover.
Figure 10
