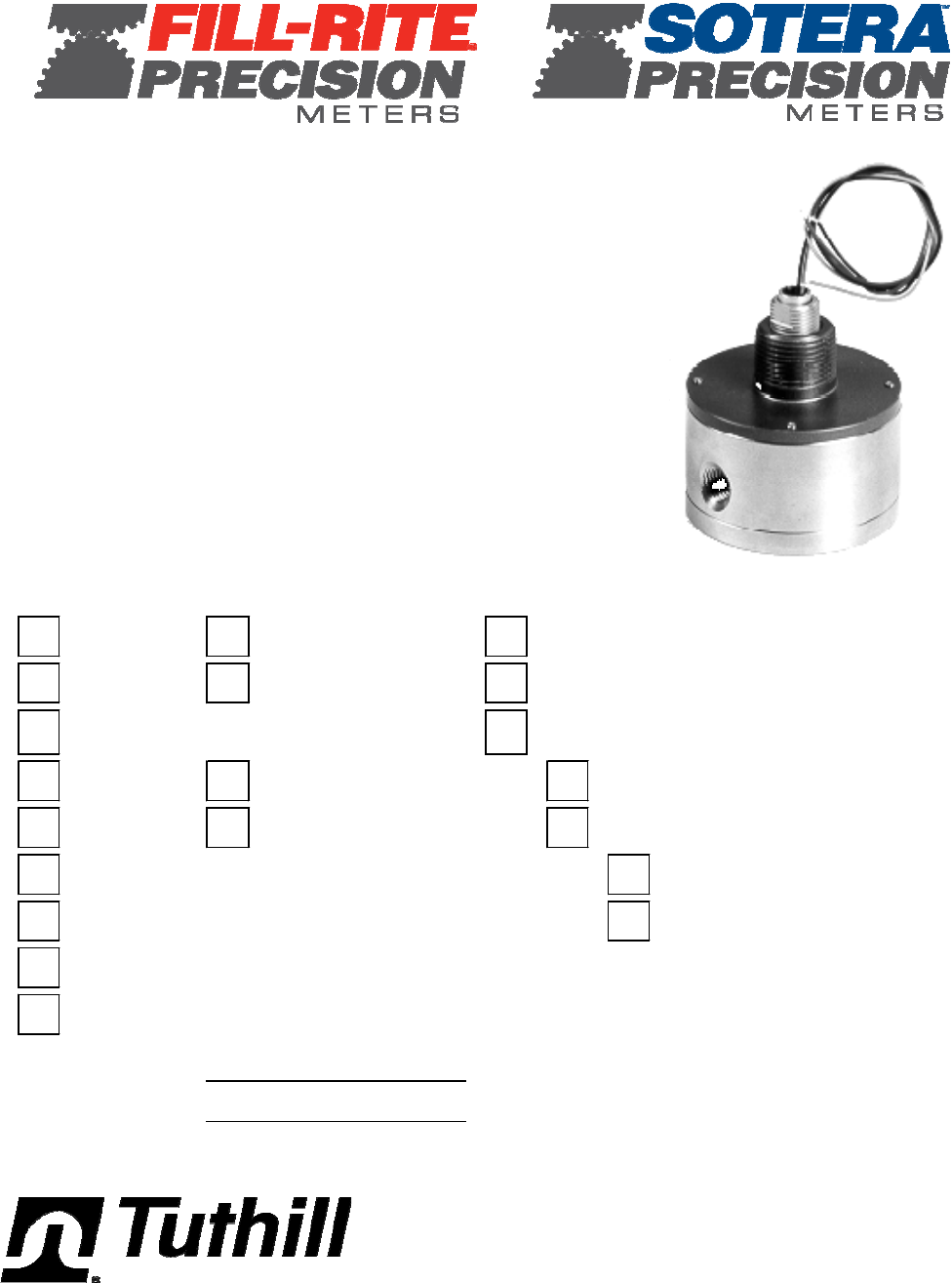

TM Series Electronic FPPMM001, Rev. 2012-03 Installation, Operation & Parts Manual MODEL Internal Pulser Register/Signal Conditioner TM02D Hall Effect none TM03A Reed Switch Signal conditioner: _____________ TM03D Accessories Register/Controller: _____________ TM04A none Remote TM04C Strainer Installed TM04D NEMA 4X encl. TM06A NEMA 7/4X encl. TM06C TM06D Registers, Signal Conditioners and/or Accessories are supported with separate manuals, also supplied with the flow meter.
INDEX Section . Page About FPP Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Principle of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fluid Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Meter Specifications & Model Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TM Series, Principle of Operation Only 2 moving parts. Patented ‘Waveform’ oval gears = sustained accuracy with a minimum of maintenance. No metal-to-metal contact in measuring chamber or in bearings. The lowest differential pressure values amongst rotary PD meters. => Lower Cost of Ownership! About FPP Meters We thank you for purchasing an FPP METERS product for liquid measurement service. FPP METERS, formerly Fluid Power Products, is now a trade name of Tuthill Transfer Systems.
TM Series, Specifications & Capacity Materials: Flow Meter Nominal Capacity: TM●●A Case & cover : Anodized aluminum Posts (shafts) : 316SS Seal : Viton™ std., Teflon™ optional TM02D TM03 TM04 TM06 TM●●C Case & cover* : 303SS Posts (shafts) : 316SS Seal : Teflon™ standard TM04 TM06 SS/Teflon bearings PPS standard, SS/Teflon bearings opt.
TM Series, Start-Up & Operation SAFETY INSTRUCTIONS OPERATING TEMPERATURE TM Series meters are rated for operation from -40°F/+300°F (-40°C/+150°C). However: Make sure that all necessary safety precautions have been taken, including proper clothing, personal safety equipment and fire safety equipment if required. They are not suitable for cryogenic service. When temperature exceeds +120°F (+50°C), ‘K’ ro- Before Start-Up of the Flow Meter, make certain that: 1.
Start-Up, Operation & Calibration Frequency Start-Up & Operation Very slowly fill the system with liquid, to avoid operating the flow meter on air or vapor. This can be accomplished in the following manner: 1. Throttle the meter inlet valve, and allow the system to fill slowly by gravity. 2. Crack open the outlet valve. Start the pump, and then slowly crack open the inlet valve, filling the meter slowly before fully opening the inlet and outlet valves.
Trouble Shooting & Service Prior to opening or disassembly of any flow meter, all internal pressure must be relieved and all liquid must be drained. This must be done in accordance with applicable company and local codes & ordinances. Make sure that all necessary safety precautions have been taken, including proper clothing, personal safety equipment and fire safety equipment if required. No Flow Blocked strainer basket. Clean the basket. Faulty or non-functioning pump. Repair pump.
Hall Effect Sensor (Pulser) Intrinsically Safe rated sensors for Cl. 1, Div. 1, Grp. D and Zone 0 applications CD1002, UL 9HA6, DEMKO 04 ATEX0334817 EEx ia IIA T4 The standard sensor (pulser) is a Hall Effect device, which may have one or two output signals. To retain above ratings, it must be powered from a secure circuit through an approved barrier. A PIA-300 signal conditioner may be required, when connected to non-FPP electronics To install a new sensor, look at the top of the replacement sensor.
Optional Sensors (pulsers) Reed Switch BLACK This sensor is strictly for use with battery powered stand -alone registers, where no external power source is available. If external power is available, Hall Effect pulser should be used - even when the register is battery powered. In so called ‘pulse meter’ service, either Hall Effect or Quadrature Hall Effect pulser must be used - depending upon the requirements of the receiving instrument.
Optional Quadrature Signal When a TM Series flow meter is to be used with an electronic register requiring dual channel signal (Quadrature signal), the SCL signal conditioner is used. This produces a simulated Quadrature signal for the register, which will record volume correctly, but it does not permit detection of reverse flow. The SCL is voltage specific. The standard version can be field selected for 5VDC regulated, or 6-12VDC non-regulated. An optional version is available for 24VDC service.
Wiring Diagrams HE pulser (DC powered) to CC56 register (battery powered) HE pulser (DC powered) to PIA-300 with Channel A to CC56 register, Channel B = pulse output to ?? 1 .
Wiring Diagrams HE pulser (DC powered) to PIA-300 pulse Isolator/Amplifier/Splitter HE pulser in ‘Fuel Sentry’ 1 .
Wiring Diagrams HE pulser to PC58 or PCDT58 HE pulser to PC58 or PCDT58 with 4-20 mA Analog signal 1 .
Wiring Diagrams HE pulser to ELNC HE pulser to ELNC with Backlight & 10:1 pulse out 1 .
Wiring Diagrams HE pulser with EL2057 & ELNC for use in Hazardous Zone 1 .
Control Drawing 1 .
TM02D Parts List TM02D Stainless Steel 2009: 400 PSI (28 BAR) version being phased out REF 1. 2. Description 400 PSI 1500 PSI QTY 28 BAR 103 BAR Meter cover plate 1 CP86502 CP8625 Screw , cover plate (10-32 X 3/8" SHCS 303SS) 4 FS9651 Screw , cover plate (10-32 X 5/8" ALSTSHCS) 3. Meter body w ith posts, 1/4" NPT ports FS1660 1 MB99021 Meter body w ith posts, 1/4" BSP ports 4. 5. 6. 7.
TM03A & TM03D Parts List TM03A TM03D Anod. Alum inum Stainless Steel 2009: 400 PSI (28 BAR) version being phased out REF 1. 2. Description 400 PSI 1500 PSI 400 PSI 1500 PSI QTY 28 BAR 103 BAR 28 BAR 103 BAR Meter cover plate 1 CP2800 CP2850 CP9800 CP9650 Screw , cover plate (10-32 X 3/8" SHCS 303SS) 6 FS9651 Screw , cover plate (10-32 X 5/8" ALSTSHCS) 3. Meter body w ith posts, 3/8" NPT ports O-ring, cover plate, Viton MB2800-21 MB980021 MB2801-21 MB980121 1 SL1033 (std.
TM04A, TM04C & TM04D Parts List 2009: 400 PSI (28 BAR) version being phased out REF 1. 2. Description TM04A TM04C TM04D Anod. Alum inum 303 SS 316 Stls. Steel 400 PSI 1500 PSI 2500 PSI 400 PSI 1500 PSI QTY 28 BAR 103 BAR 173 BAR 28 BAR 103 BAR Meter cover plate 1 CP2501 CP2506C CP8575 CP9500 CP9501 Screw , cover plate (1/4-20 x 1/2 SHCS, SS) 4 FS9812 FS9812 Screw , cover plate (1/4-20 x 5/8 SHCS) FS1802 FS1802 FS1901 3. Meter body w ith posts, 1/2" NPT ports 1 4.
TM06A, TM06C & TM06D Parts List #6 #4 #4a #12 #9 #11 #8 #2 #3 #10 #5 #7 #5 #1 2009: 400 PSI (28 BAR) version being phased out 2010: 303SS/1500 PSI version being phased out TM06A TM06C TM06D Anod. Alum inum 303 Stls. Steel 316 Stls. Steel 303SS/2500 PSI special production, availability subject to min. qty. 400 PSI 1500 PSI 1500 PSI 2500 PSI 400 PSI 1500 PSI REF 1. 2.
PIA-300 Pulse Isolator, Amplifier & Splitter (optional component) The purpose of the PIA-300 is to provide: Protection and properly interface the signal from the Hall Effect sensor (pulser) to customer supplied electronics (totalizer, register, PLC, etc.). Supply SOURCE signal in place of standard sink. Amplification of output signal, so it can be transmitted over greater distances. Two identical output signals, which can be sent to two different destinations.
This page left blank intentionally 3.
P hn: 2 6 0 - 7 4 7 - 9 0 6 0 US : 8 8 8 - 5 7 8 - 3 2 5 8 F a x: 8 0 0 - 8 6 6 - 4 8 6 1 F P P We bInquirie s @ t ut hill.c o m www.t ut hill.
Other TTS Flow Meter Products TS Series, Positive Displacement, oval gear principle Custody Transfer accuracy, for use on refined fuels, LPG, heavy fuel oils, glycols, lube oils & petrochemicals V●● = Mechanical flow meter with mechanical register F●● = Electronic flow meter with ELNC, EMR³ or for other register W●● = Gland-less flow sensor (without display) Lower Cost of Ownership! TS15C W04 TS20A V13 ATCBMXAH4 with high capacity strainer, air eliminator & mechanical preset valve S IZ E G P M
