Selecting Aux Channel Control Mode
Multiple operating modes are available as outlined on Page 3.
Time based, Shift based, and
GPS (gear position sensor) based. Only GPS mode will be available if the Boost channel is configured
for GPS mode.

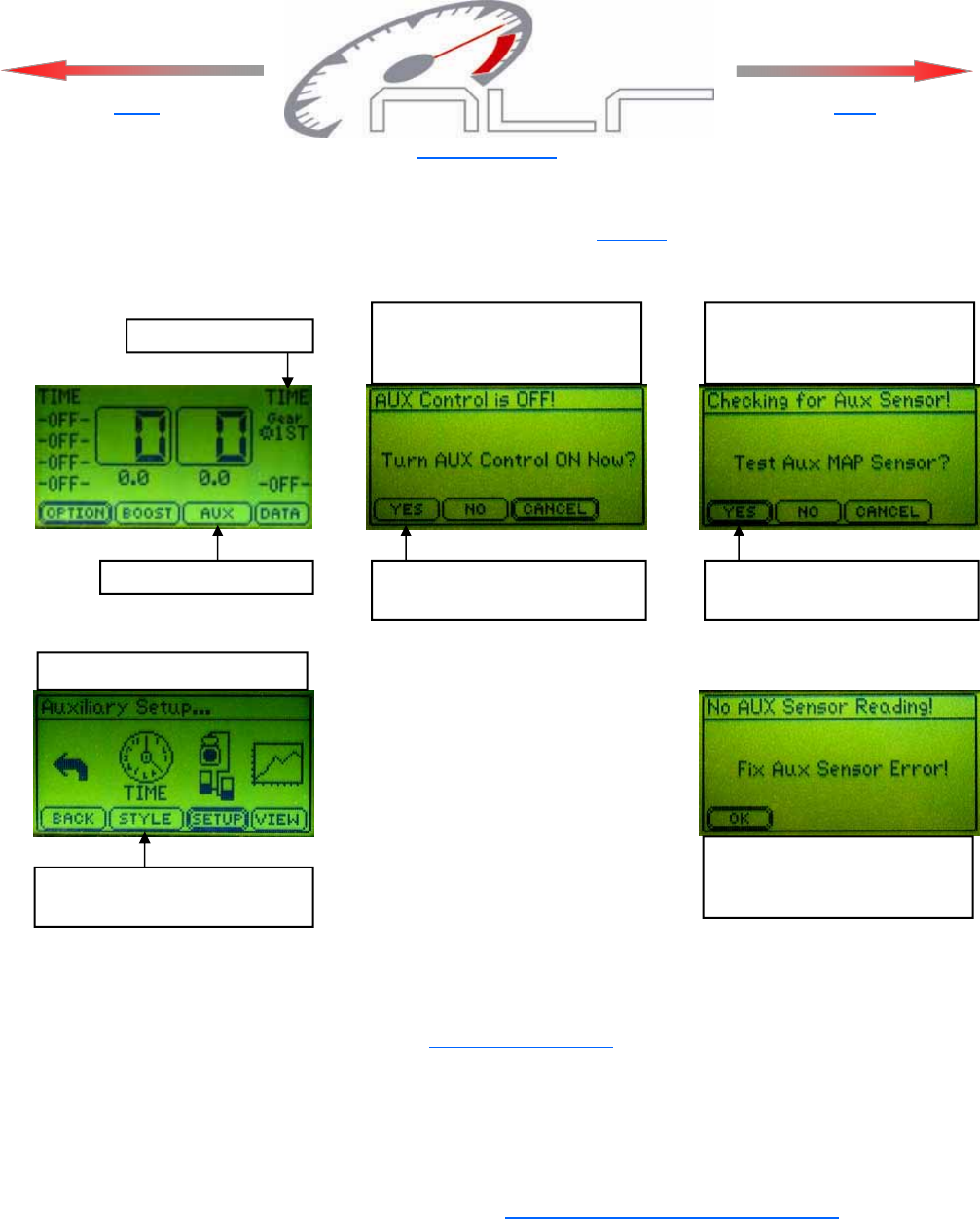

Press the AUX button.
1
Aux Channel Mode
2
If the Aux channel is OFF the
following message will be
displayed.
Press the YES button to turn
the Aux channel ON.
3
A MAP sensor MUST be con-
nected to the Aux channel to
continue! See below.
Press the YES button to test
the Aux channel sensor.
If no sensor is present the
Aux channel will remain OFF.
Press OK button to exit.
Aux channel Setup Screen.
Press the STYLE button to
change operating mode.
Aux Channel Setup
After entering the Aux channel setup refer to Boost Channel Setup
(page 13) for more information.
Viewing Graph of Aux channel Setup
After entering the Aux channel setup refer to Viewing Graph of Boost channel Setup (page 16)
for information.
Click for Index.
Back
Next
NOTE—Target Psi is the amount applied to the waste gate and is NOT the actual Manifold Boost Psi!
