Battery Charger

NOTICE: Never charge a battery in the boat or damage may result.

1. Plug the USB end of the charging cable into any USB charging port, such as a USB port on a computer.

2. Connect the battery to the small end of the charging cable so that it clicks into place.

3. The LED indicator on the charging cable will light solid red to indicate the battery is charging.

4. The LED will turn off indicating the battery has completed charging.

5. When ﬁ nished charging, discontent the battery from the charger.

Transmitter and Boat Pairing (Binding)

1. Power on the transmitter. A single beep will sound

and the Transmitter power LED will ﬂ ash.

2. Place the boat (with battery installed and

connected) into the water.

3. The boat will automatically power on when it

contacts the water and beep three times.

4. The transmitter power LED will glow solid indicating

successful binding.

5. The boat and transmitter are now ready to operate.

Tip: Your React

™

17 Deep-V includes two features to

make your boating experience even more worry free.

1. A low-voltage alarm that signals when your boat

battery is nearly discharged. When your transmitter

starts to beep you have about one minute of runtime remaining to return your boat to shore for safe retrieval

before the ESC Low Voltage Cutoff (LVC) stops boat operation to protect the battery from over discharge.

2. Then your boat is nearing the end of its radio range the transmitter power LED with start to ﬂ ash signaling that

you need to return your boat to an operation range closer to the driver.

Getting Started

1. Install 4 AA batteries into the transmitter.

2. Remove the canopy from the hull by rotating the canopy latch

to the left or right and pulling up on the back of the canopy.

3. Install the fully charged battery in the compartment by

securing it into the battery clip with the battery cable

toward the front of the boat.

4. Power on the transmitter.

5. Connect the battery to the ESC/Receiver.

6. Install the canopy on the hull.

7. Keep the throttle at neutral and place the boat into the water.

Three beeps will sound, indicating the boat is powered on.

Range Check

IMPORTANT: Perform a range check at the beginning of each boating session, after repair or after installation

of new batteries.

Ensure that all batteries are fully charged.

1. With the radio system powered on and connected, walk away from your boat 90 feet (32 m).

2. Have an assistant remain with the boat to check for proper control movement of the rudder in response to

your transmitter input.

3. If everything appears to be operating correctly, prepare to operate the boat in the water.

NOTICE: Do not operate the motor without water cooling circulation or damage may result.

When You Are Finished

1. Power off the boat.

2. Power off the transmitter.

3. Disconnect and remove the battery from the boat.

NOTICE: Disconnect and remove the Li-Ion battery from the boat after use to prevent trickle discharge. Charge

your Li-Ion battery to about half capacity before storage. During storage, make sure the battery charge does not

fall below 3V per cell. Low Voltage Cutoff does not prevent the battery from over discharge during storage.

Tip: Always remove the canopy before storage or moisture may allow mold and mildew to grow in the boat.

• Fully dry the inside and outside of the boat, including the water cooling lines.

• Remove the hatch before storing your boat

• Repair any damage or wear to the boat

• Lubricate the drive shaft using Dynamite

Marine Grease (DYNE4200)

NOTICE: When you are ﬁ nished boating, never leave the boat in direct sunlight or in a hot, enclosed area such

as a car. Doing so can damage the boat.

NOTICE: Running the boat in saltwater could cause some parts to corrode. If you run the boat in saltwater, rinse

it thoroughly in freshwater after each use and lubricate the drive system.

NOTICE: Because of its corrosive effects, running RC boats in saltwater is at the discretion of the modeler.

Speciﬁ cations

Length: 17” (424mm)

Beam (width): 4.5” (114mm)

Hull Material: Molded Plastic

Motor: 390-Size Water Cooled Brushed motor

ESC/Receiver: Pro Boat

2.4GHz receiver with Brushed motor ESC

Transmitter: Pro Boat

2.4GHz Transmitter

Batteries: 7.4V 1500mAh 2S Li-Ion

4 AA batteries are required

for the transmitter

17-Inch Brushed Self-Righting Deep-V boat

PRB08024

Owners Manual

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon

Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

MEANING OF SAFETY SIGNAL WORDS

The following terms are used throughout the product literature to indicate various levels of potential harm when

operating this product:

NOTICE: Instructions, which if not followed, create a possibility of property damage AND minor injury.

CAUTION: Instructions, which if not followed, create a probability of property damage AND a possibility of injury.

CAUTION: Read and follow all instructions and warnings in the manual prior to setup or use. Failure to operate

the product correctly can result in damage to the product, personal property and/or injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some

basic mechanical ability. Do not attempt disassembly, use with incompatible components or augment product in

any way without the approval of Horizon Hobby, LLC.

Age Recommendation: Not for children under 14 years. This is not a toy.

Operating Safety Precautions

• As the user of this product, you are responsible for operating it safely, not endangering yourself and others, or

damaging the product or the property of others.

• When handling and/or transporting your boat, always pick up the boat from the front, keeping all moving parts

pointed away from you.

• Always keep a safe distance in all directions around your model to avoid collisions or injury.

• Always operate your model in open spaces away from full-size vehicles, trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional support equipment (chargers,

rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and protected for this purpose. Moisture

causes damage to unprotected electronics.

• Never place any portion of the model in your mouth as it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

Charging Warnings

The Battery Charger included with your product is designed to safely charge the Li-Ion battery.

CAUTION: All instructions and warnings must be followed exactly. Incorrectly charging internal Li-Ion

batteries can result in a ﬁ re, personal injury, and/or property damage.

• Never leave charging batteries unattended during use.

• Never charge batteries overnight.

• By handling, charging or using the internal Li-Ion battery, you assume all risks associated with lithium batteries.

• If at any time the product begins to balloon or swell, discontinue use immediately. If charging or discharging,

discontinue and disconnect.

• Continuing to use, charge or discharge a battery that is ballooning or swelling can result in ﬁ re.

• Always store the product at room temperature in a dry area for best results.

• Always transport or temporarily store the product in a temperature range of 40–120º F (5–49º C). Do not store

the product in a car or direct sunlight. If stored in a hot car, the battery can be damaged or even catch ﬁ re.

• Always charge the battery away from ﬂ ammable materials.

• Always inspect the product before charging and never charge damaged batteries.

• Always disconnect the product after charging, and let it cool between charges.

• Always constantly monitor the temperature of the product while charging.

• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO CHARGE LI-ION BATTERIES. Failure to charge the battery

with a compatible charger may cause ﬁ re, resulting in personal injury and/or property damage.

• Never discharge Li-Ion cells to below 3V under load.

• Never cover warning labels with hook and loop strips.

• Never leave charging batteries unattended.

• Never charge batteries outside recommended levels.

• Never charge damaged batteries.

• Never attempt to dismantle or alter the charger.

• Never allow children under 14 years of age to charge battery packs.

• Never charge batteries in extremely hot or cold places (recommended between 40–120° F or 5–49° C)

or place in direct sunlight.

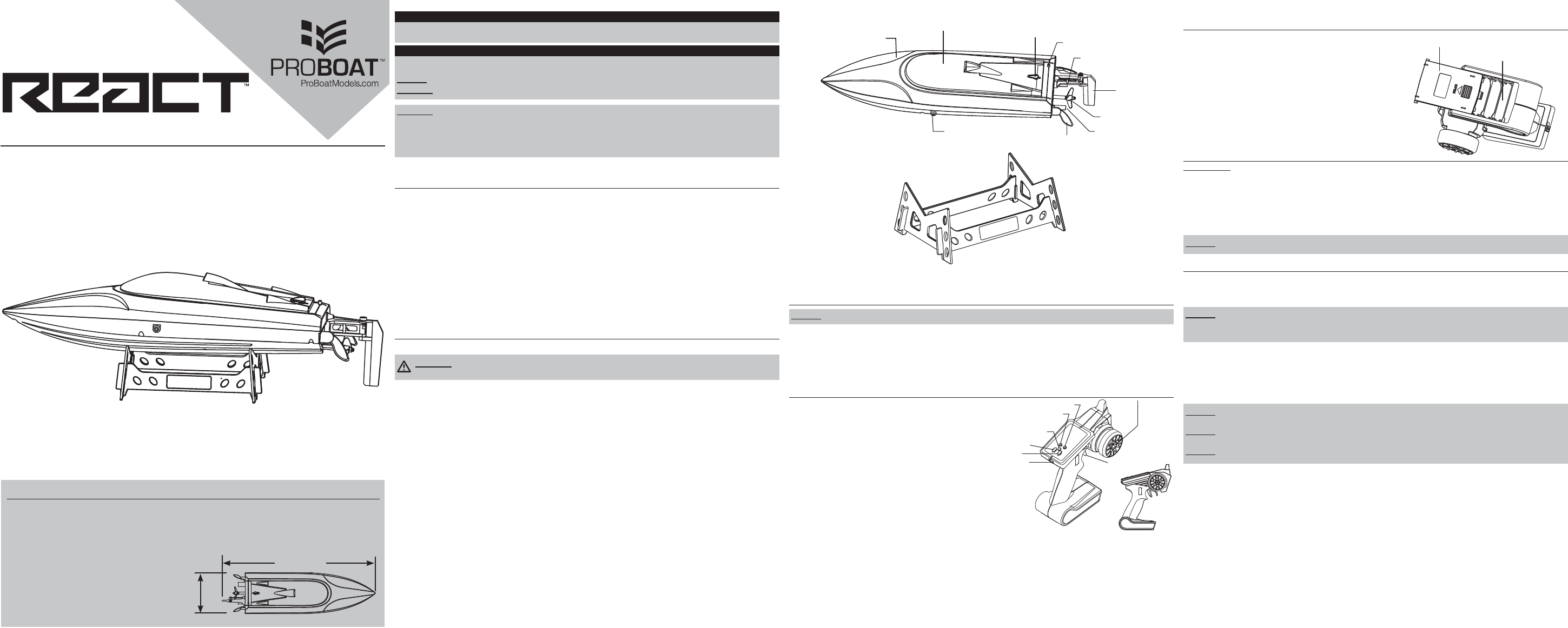

17” (424mm)

4.5”

(114mm)

Rudder

Propeller

Trim Tab

Turn Fin

Cooling Outlet

Boat Stand

Water Sensor

Steering Rod

Canopy Latch

Canopy

Hull

Backward Trim

Left Rudder Trim

Right Rudder Trim

Power Switch

Forward Trim

Steering

Throttle Trigger

Power Indicator

Battery Cover

Battery Compartment

Summary of content (2 pages)

PAGE 1
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.
PAGE 2
Operating Instructions Forward To go forward: pull backward (squeeze) the throttle trigger on the transmitter. Left and Right Trim Adjustments Let the boat drive straight ahead (release the rudder wheel). If the boat turns to the left or right the steering trim may need to be adjusted. Adjust the Left or Right Trim until the boat sails straight. Left Trim Right Trim Left Rudder Trim Right Rudder Trim Forward Backward To go backward (reverse): push forward on the transmitter throttle trigger.
